Pole Mounting the Access Point with the Tiltable Mounting Kit

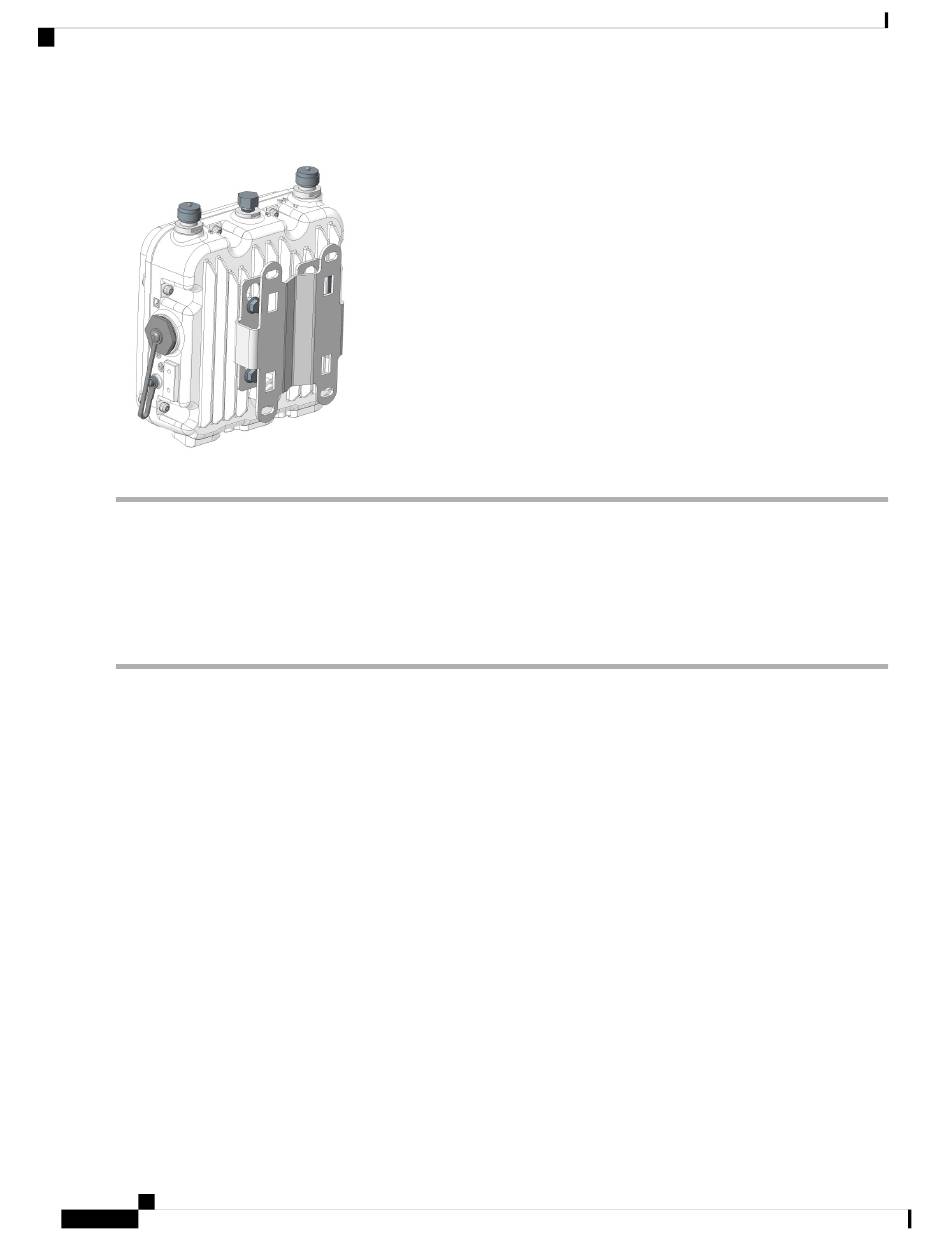

Figure 16: Mounting Bracket Attached to the AP

Pole Mounting the Access Point with the Tiltable Mounting Kit

The optional tiltable mounting kit can be used to install the access point on a pole. The tiltable bracket can

be rotated 180° for further downward rotation. It also provides additional holes for 45° rotated installation.

To mount the access point on a pole or a wall with the tiltable mount bracket, follow these instructions:

Step 1

Attach the mounting bracket to the access point with four M6 screws. Torque the screws to 30-40 in-lbs.

Cisco Catalyst IW9165D Heavy Duty Access Point Hardware Installation Guide
