Summary of Contents for AZZA Xander

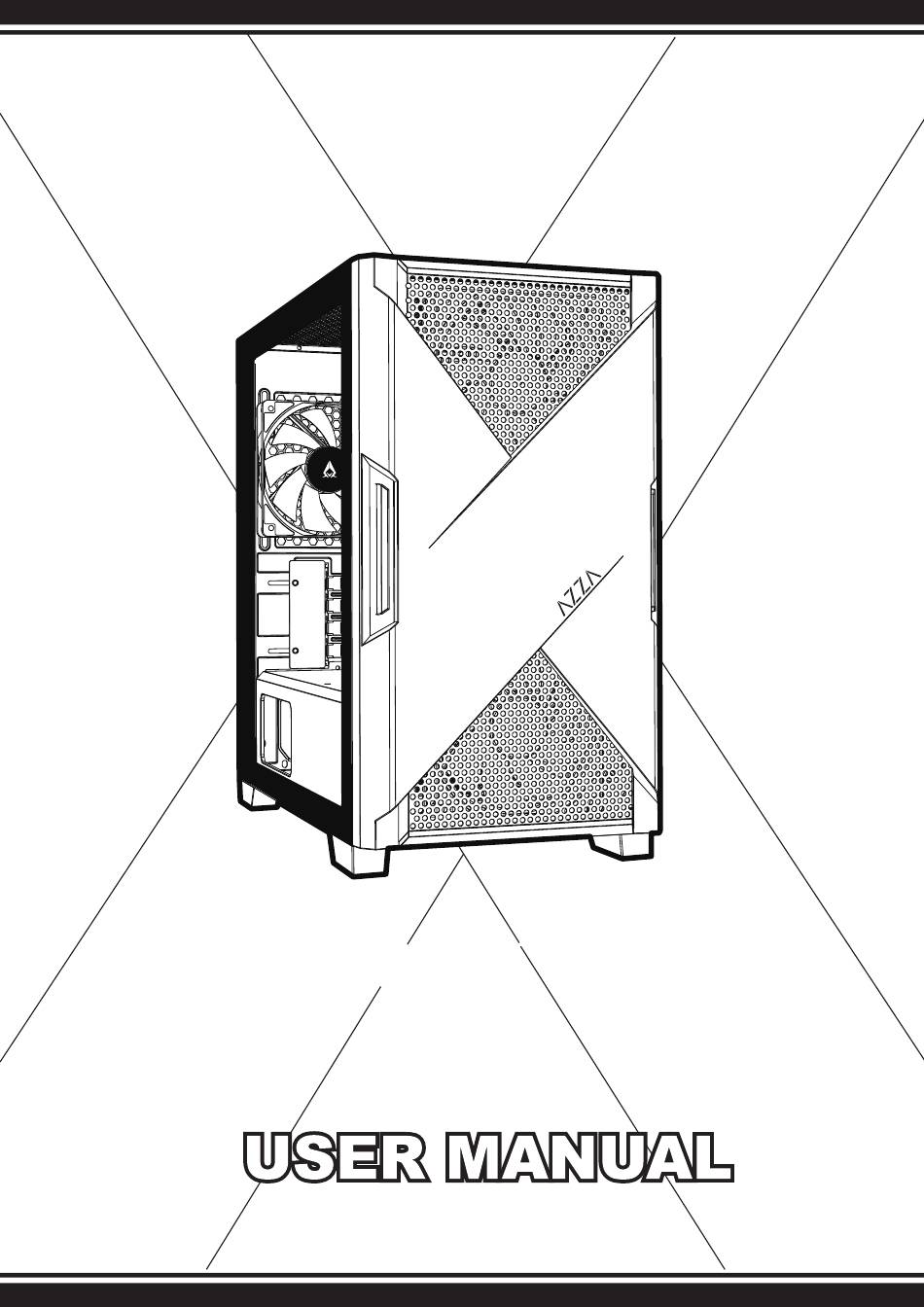

- Page 1 Xander C O M P U T E R C A S E...
- Page 2 Installation Instructions 1. Specifications 2. Chassis Parts 3. Control Panel Functions 4. 3.5”/2.5” HDD/SSD Installation Remove the left glass side panel Remove the right metal side panel Remove the Front panel From top to bottom, fasten the panel to chassis 9.
-
Page 3: Specifications
Specifications Model Xander Model Name: Model Number: CSAZ-150 Specifica�ons Type: Micro ATX Mid Tower Color: Black/Black(interior) Side Panel Window: Le� side panel: slidable tempered glass panel Max CPU Cooler Height: UP to 175mm Max Video Card Length: Up to 340mm long video card... -
Page 4: Chassis Parts
Chassis Parts Front panel Metal side panel Tempered glass panel Removable magnetic mesh Hard disk cage 3.5” HDD/ 2.5” SSD brackets 2.5” SSD tray x 2 Chassis Dust filter mesh... -
Page 5: Control Panel Functions
Control Panel Functions POWER USB 3.0 USB 3.0 Audio... - Page 6 3.5 ˝/ 2.5˝ HDD/SSD Installation ▪Supports up to 390mm long video cards. MAX 340mm video card MAX 340mm video card 3.5″ 3.5″ 2.5″ 2.5″ ▪Multifunctional hard disk bracket support 3.5” HDD or 2.5” SSD x 1 ( ▪2.5" SSD metal tray support 2.5” SSD x 2 ▪Multifunctional hard disk cage support 3.5”...
- Page 7 Remove the left glass side panel...
- Page 8 Remove the right metal side panel...
-
Page 9: Remove The Front Panel
Remove the Front panel... - Page 10 From top to bottom, fasten the panel to chassis...
- Page 11 Cooling System Installation Front 120mm x3 Max Height of Radiator 280mm 140mm x2...
- Page 12 Cooling System Installation Rear 120mm x1...
-
Page 13: Cooling System Installation
Cooling System Installation 120mm x3 140mm x2 Max Length of Radiator 280mm... - Page 14 Master Fan & Sub-fan Installation included 1pc of Master Fan included 2pc of sub-fan...
-
Page 15: Fan Installation
Fan Installation The adaptor cable is in the tooling bag (Reserved) CONNECTOR CONNECTION Reset (LED) S/W (2pin) Button ① ARGB LED 5V (3pin) female connector The 5V/3pin ARGB socket of the motherboard ② Fan Connector The master Fan connect to the sub-fan ③... - Page 16 RGB Lighting Switching ▪Press the button to cycle through different RGB lighting modes.
