Contemporary Controls BASstat Series User Manual page 29

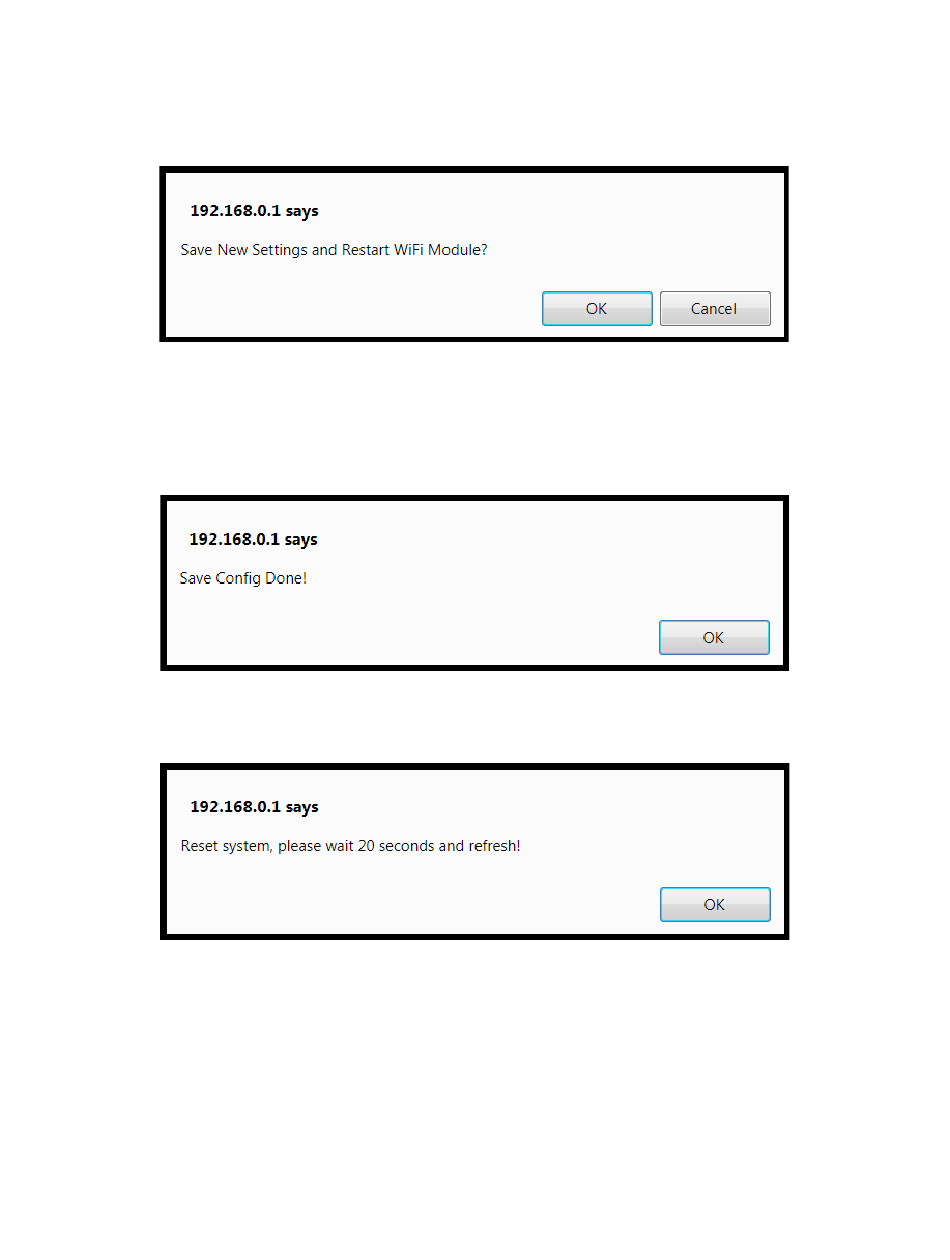

A reboot of the thermostat is required for new IP configuration to take effect. Click the Save &
Restart button to reboot the thermostat, and you will be prompted to confirm the restart. Click OK
to Save New Settings and Restart or click Cancel to revisit IP configuration.
When OK is clicked, a confirmation is displayed to indicate configuration is stored in the
thermostat's EEPROM. After reboot, the new thermostat credentials will be admin for username
and the newly configured Access Point's password for password.
Click OK on the confirmation message and wait 20 seconds for the reboot process to complete.
While rebooting, the thermostat will display "DP" icon (Device Pairing) in the lower right corner to
indicate it is in the process of searching and connecting to the AP. Once the "DP" stops flashing,
the thermostat has successfully connected to Wi-Fi access point. After reboot of the thermostat,
the new Infrastructure mode with new IP settings will be used. The thermostat will now be
connected to the local Wi-Fi network AP selected in configuration screen and will not show up as
an access point itself anymore. If you are unsure of the thermostat's IP address, it could be
viewed through the Engineering Menu in items (IP-1) for the first octet, (IP-2) for the second
octet, (IP-3) for the third, and (IP-4) for the fourth octet of the IP address, or if you have access to
the Wi-Fi access point, its "statistics" or "connected devices" web page will show the BASstat
BW2's IP address as well as MAC address (the same address in Engineering Menu items Phy1,
