Operation of Engineering Menu

•
At power "ON", press and hold both the UP and DOWN buttons simultaneously for 5
seconds to enter Engineering Mode menu.
•
Press the UP or DOWN buttons to rotate through the menu items. The last item loops
back to first item at the end of items in menu. Press the MODE button to enter a
submenu item.
•
Press the UP or DOWN button to change the setting in the submenu item or hold to
speed up setting value change. Press the MODE button to confirm the setting and
return to menu item selection. If no button is pressed for a period of 10 seconds, the
display will return to the menu item selection. After another 10 seconds, the display
will return to User mode. Settings are not changed unless confirmed using the MODE
button.
•
To leave Engineering Mode, rotate till (End) menu item appears and press the MODE
button. Alternately, pressing no buttons for 10 seconds will return the thermostat back
to User mode.

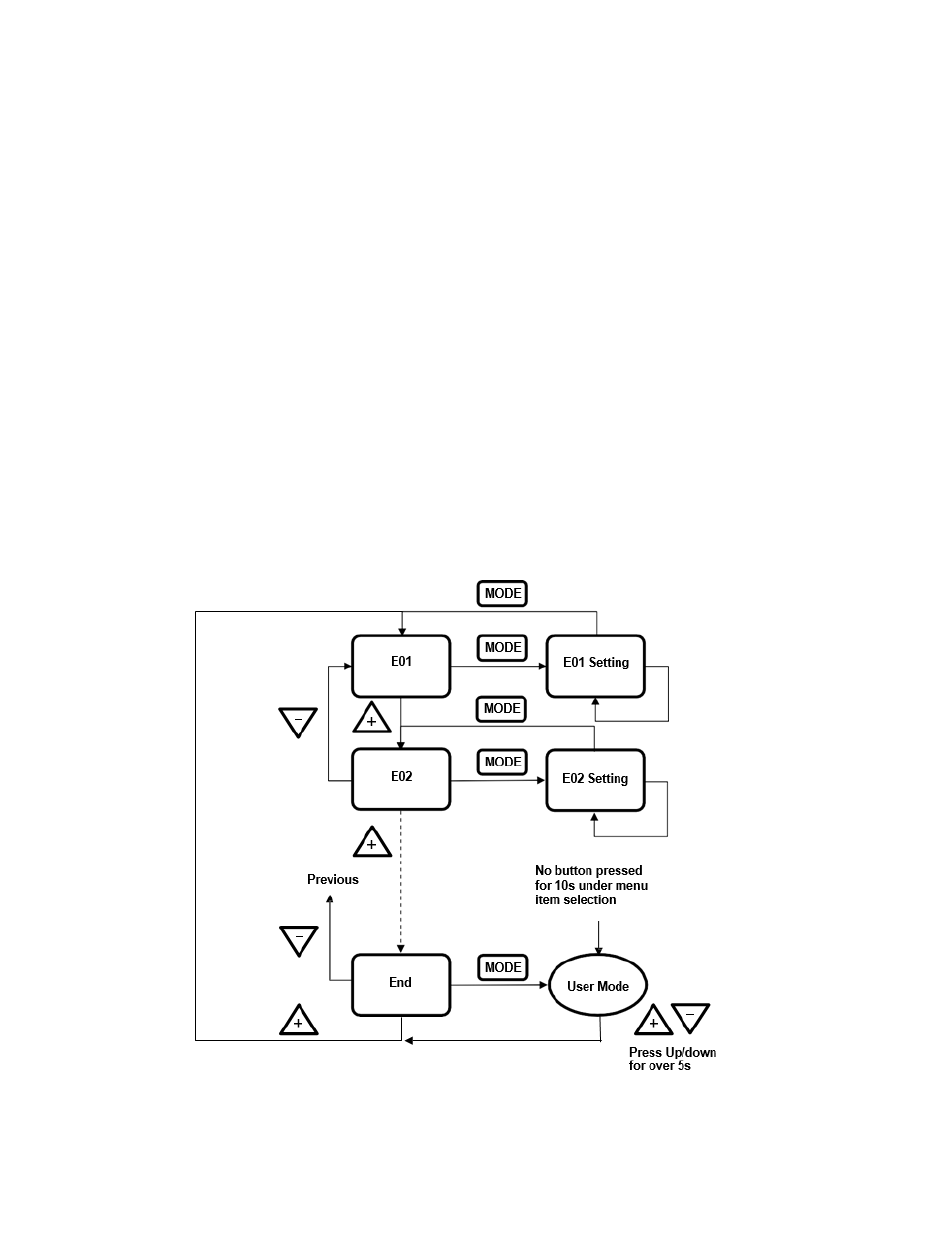

Engineering Menu Flow Chart
