- Page 1 BAST-121C-BW2 Wireless BACnet Communicating Thermostat for Single Mode Heating/Cooling/Ventilation BASstat Wireless Single Mode Thermostat User Manual # UM-15095500-AA0...
- Page 2 Trademarks BASautomation, Contemporary Controls, and CTRLink are registered trademarks of Contemporary Control Systems, Inc. BACnet is a registered trademark of the American Society of Heating, Refrigerating and Air-Conditioning Engineers, Inc. Powered by Sedona Framework is a trademark of Tridium, Inc. Other product names may be trademarks or registered trademarks of their respective companies.
-
Page 3: Table Of Contents
Contents Introduction ..........................4 Features and Benefits ......................5 Product Image and Main Features ..................6 BASstat 121C-BW2 ........................6 Specifications ..........................7 Inputs ..........................7 Outputs ..........................7 Communication ........................7 Electrical ..........................7 Environmental ........................8 Electromagnetic Compatibility .................... 8 Mechanical (all dimensions are in mm) ................ -
Page 4: Introduction
Engineering Menu after installation is complete. The second method is configuring the thermostat over the BACnet network using a BACnet client device or software such as Contemporary Controls’ free BACnet Discovery Tool. -
Page 5: Features And Benefits
1.1 Features and Benefits • Stand-alone thermostat algorithm or fully BACnet network-controllable • BTL listed with B-ASC device profile for easy integration into BACnet networks • 24VAC (+/-10%) power input • Single mode heating (default) or cooling control types • BACnet/IP over Wi-Fi can be integrated into any 802.11 b/g/n Wi-Fi network •... -

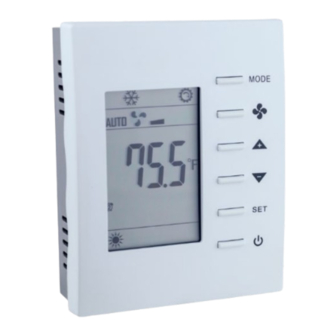

Page 6: Product Image And Main Features
1.2 Product Image and Main Features BASstat 121C-BW2 UM-15095500-AA0 Page 6... -
Page 7: Specifications
2 Specifications 2.1 Inputs Item Description Temperature Display Range 14 to 140°F (-10 to +60°C) Temperature Display Resolution 0.1°F (0.1°C) Temperature Accuracy ±1.8°F (±1.0°C) with all outputs off Setpoint Range 32-122°F (0-60°C) in 0.5° (°F or °C) increments Remote Temperature Sensor Provision for NTC Type 3kΩ... -
Page 8: Environmental
2.5 Environmental Item Description Operating Temperature 32°F to 122°F (0 to 50°C) Storage Temperature 14°F to +140°F (-10°C to +60°C) Relative Humidity 5 to 95% non-condensing 2.6 Electromagnetic Compatibility The BAST-121C-BW2 complies with the following specifications and bears the CE mark in accordance with the provisions of the Electromagnetic Compatibility (EMC) Directive 2004/108/EC based on the following specifications: Standard... -
Page 9: Mechanical (All Dimensions Are In Mm)
2.7 Mechanical (all dimensions are in mm) Mounts directly onto wall, panel, standard 65×65mm junction box (hole pitch 60 mm) or standard 2×4-inch vertical junction box (hole pitch 83.5mm) Width: 94mm Height: 118mm Depth: 34mm UM-15095500-AA0 Page 9... - Page 10 UM-15095500-AA0 Page 10...
-
Page 11: Installation
3 Installation The BASstat is intended for surface-mount installation at eye-level on an interior wall, away from direct sunlight or direct air movement. The display (top half) can be removed from its base by loosening the small Philips screw at the bottom of the display. Once the display is removed from the base, the base can be mounted onto the wall with appropriate fasteners. -
Page 12: Power Supply Precautions
3.3 Power Supply Precautions Internally, the BASstat utilizes a half-wave rectifier and can share the same AC power source with other half-wave rectified devices. Sharing AC power with full-wave rectified devices is NOT recommended. AC power sources that power several half-wave devices have a common secondary connection called COMMON, LO, or GROUND. -
Page 13: Operation
4 Operation 4.1 User Mode User-side control is accomplished with six buttons – MODE (Heat/Cool, or Ventilate), FAN (Auto or Continuous), UP, DOWN, SET, and POWER. There are also options to lock select buttons or all buttons on the thermostat to limit user access if so required. A large LCD display indicates setpoint, space temperature, occupancy status, and current mode of operation using graphical icons. -
Page 14: User Mode Thermostat
User Mode Thermostat Item Description Remarks Normal Display Display current room or set- Use the (SP) parameter in point temperature the Engineering Menu or [MSV6] Display Option for BW2 or [MSV7] Display Option for B2 model to choose Current room or Set- point temperature on display. -
Page 15: User Mode Flow Chart
User Mode Flow Chart 4.2 Control Type Control Type, System Mode and Algorithm Configuration The factory default control type is Heating only. The installer must decide the control type suitable for the application and set it to the desired function. Control type is only configurable by the installer using Engineering Mode Menu or BACnet supervisor. -
Page 16: Fan Output In Heat Mode
Fan Output in Heat Mode By default, the BASstat thermostat will provide a Fan output signal during heating or cooling cycles. Local BASstat fan control can be configured from Engineering Menu item (F-Ht) or BACnet object [BV15] Fan Output For Heating. The default value is “1”. To disable fan control signal output for heating coming from the BASstat, set this value to “0”. -
Page 17: Fan Control Output
Fan Control Output • Fan Output for Heating - the fan output for Heat mode is enabled “1” in [BV15] by default. To let the RTU circuity control the fan during Heat mode – thermostat fan control can be disabled by setting a “0” for Heat mode if desired [BV15]. •... -
Page 18: Occupancy Setting
4.3 Engineering Mode Menu Thermostat configuration can be performed using the engineering mode menu described below or BACnet objects using a BACnet client tool such as Contemporary Controls free BACnet Discovery Tool. It is highly suggested that engineering mode be operated by trained installers only, because it is related to system parameters that will affect the control results. -
Page 19: Operation Of Engineering Menu
Operation of Engineering Menu • At power “ON”, press and hold both the UP and DOWN buttons simultaneously for 5 seconds to enter Engineering Mode menu. • Press the UP or DOWN buttons to rotate through the menu items. The last item loops back to first item at the end of items in menu. -
Page 20: Engineering Menu Items Table
Engineering Menu Items Table °C Scale °F Scale Step Item Mnemonic Description Default Range Default Range Deadband 0~10 0~18 0.5 (°C/°F) Unoccupied(ESI) cooling set point ESIC 25~35 82.5 77~95 1.0 (°C/°F) Unoccupied(ESI) heating set point ESIH 10.0~22.0 50.0~72.0 1.0 (°C/°F) Integral Time and Output Cycle Time 0~500 0-500... - Page 21 °C Scale °F Scale Step Item Mnemonic Description Default Range Default Range 0: N.O. ESI (DI1) digital sensor contact definition 1: N.C. rE-C Modulating Cooling direct/ reverse signal 0: (Direct) output 1: (Reverse) rE-H Modulating Heating direct/ reverse signal 0: (Direct) output 1: (Reverse) 0: built-in...
- Page 22 °C Scale °F Scale Step Item Mnemonic Description Default Range Default Range 0: Cooling Only 1: C&H Manual tyPE 2: C&H Auto Control Type 3: Heating Only 4: Single Mode OPL2 Minimum Output for AO2 (not used) SPA2 Span Offset for AO2 (not used) Hrtr Communication Heartbeat Minimum Rate 10~3600...
- Page 23 °C Scale °F Scale Step Item Mnemonic Description Default Range Default Range Phy3 MAC address 5th & 6th bytes hhhh hhhh h: 0~F in hex IP-1 1st byte of IPv4 address 0~255 0~255 IP-2 2nd byte of IPv4 address 0~255 0~255 IP-3 3rd byte of IPv4 address...
-
Page 24: Lock Function Setup And Examples
Lock Function Setup and Examples The 16-bit binary encoded decimal register accessed through Lock [AV17] BACnet object and LOC Engineering Menu item is used to enable/disable features in the thermostat. The first 10 bits are used (bit 0 ~ bit 9), bits 10~15 are reserved/unused. Bits are represented by their decimal values and are added or subtracted to toggle from “0”... -
Page 25: Bacnet Objects And Network Configuration
4.4 BACnet Objects and Network Configuration Transmission type • Physical layer: Wi-Fi 802.11 b/g/n • Protocol: BACnet/IP • UDP Port Number: BAC0 (47808) • MAC address: Wi-Fi chip MAC address found written on the back side of thermostat or in Engineering Menu item (Phy3). -
Page 26: Addressing
Addressing A unique Device Instance Number throughout the entire BACnet internetwork is required to distinguish the device from all other BACnet devices. When more than one BASstat is installed at the same time, their Device Instance Number must be configured prior to connecting to the BACnet/IP network or BACnet communication will fail due to duplicate device instances. - Page 27 After initial connection using laptop or tablet or smart phone, the Wi-Fi mode in the thermostat can be changed to Infrastructure mode. The local Wi-Fi router/access point can be selected from the Available AP drop-down list, or an AP SSID can be entered manually. Enter the AP Passphrase to authenticate and connect to the AP.
- Page 28 Choose an option for DHCP addressing using the radio buttons. The thermostat supports DHCP addressing and will acquire an IP address from the router/access point automatically if you choose Enable next to DHCP. If you chose Disable, you must assign an IP Address, Network Mask, and Gateway Address within the Wi-Fi router IP subnet manually.
- Page 29 A reboot of the thermostat is required for new IP configuration to take effect. Click the Save & Restart button to reboot the thermostat, and you will be prompted to confirm the restart. Click OK to Save New Settings and Restart or click Cancel to revisit IP configuration. When OK is clicked, a confirmation is displayed to indicate configuration is stored in the thermostat’s EEPROM.
-
Page 30: Reset Settings
Phy2, and Phy3 and the printed MAC on the back of the thermostat Wi-Fi module (outlined in blue above). Reset Settings The BASstat will store configuration in the event of power loss. If configuration fails or the thermostat needs to be configured to use a different Wi-Fi access point, the thermostat must be reset and reconfigured. -
Page 31: Bacnet Object Table - Wi-Fi Model (Bacnet/Ip)
BACnet Object Table - Wi-Fi Model (BACnet/IP) Object name Type & Instance Object Property Range (Readable/Writable) BACnet Thermostat Device 700001 Model Name (R) Application Software Version (R) Object Identifier (R) Object Name (R/W) 32 characters (max.) Type & Readable/ Object name Description Range and Definition Instance... - Page 32 Type & Readable/ Range and Definition Object name Description Instance Writable -999~9999: -99.9〜999.9 Current Dew Point Current Dew Point (221CH AI 5 °C/°F models only) Current CO Current CO Reading AI 6 0~3000: 0~3000 ppm Reading Control Valve 0〜1000 (0.0%〜100.0%) Control Valve Feedback AI 7 Feedback...
- Page 33 Type & Readable/ Range and Definition Object name Description Instance Writable Integral-Cycle Integral Time and Output 0~500 (Sec.) AV 10 Time Cycle Time Analog Minimum Minimum Output Voltage in AV 11 Output for AO1 Digital Value When Reach 0~125 (LSB) Low Limit for AO1 Span Offset for AO1 Span Offset for AO1...
- Page 34 Type & Readable/ Object name Description Range and Definition Instance Writable Modulating/floating Percentage of Modulating/ 0～100 (0%～100%) Control Out Floating Control Output AV 19 Percentage 0~4194302 (NOTE: Changing this value needs to unlock modification for communication parameters in advance. Device Instance AV 20 Device Instance i.e.
- Page 35 Type & Readable/ Object name Description Range and Definition Instance Writable Minimum Cooling °C:0~500 (0.0～50.0℃) Minimum Cooling Temperature Setpoint AV 39 °F: 320~1220 (32.0~122.0°F) Temperature Setpoint Minimum Heating Minimum Heating °C:0~500 (0.0～50.0℃) Temperature AV 40 Temperature Setpoint Setpoint °F: 320~1220 (32.0~122.0°F) Minimum Fan Minimum Fan Output at Auto...
- Page 36 Type & Readable/ Object name Description Range and Definition Instance Writable Relay 7 Status Status of Relay 7 0: Off, 1: On BI 9 Dl 1 Status Status of Digital Input 1 0: Off, 1: On BI10 Dl 2 Status Status of Digital Input 2 0: Off, 1: On BI11...
- Page 37 Type & Readable/ Object name Description Range and Definition Instance Writable On-Off Control On/Off control of Thermostat 0: Off, 1: On BV 5 outputs 0: °C Temperature Scale BV 6 °C/ °F 1: °F Relay 1 Control On/Off Control of Relay 1 0: Off, 1: On (Stage 1) Relay 2 Control...
-
Page 38: Warranty
4: Heating Only 5 Warranty Contemporary Controls (CC) warrants this product to the original purchaser for two years from the product shipping date. Product returned to CC for repair is warranted for one year from the date the repaired product is shipped back to the purchaser or for the remainder of the original warranty period, whichever is longer. -
Page 39: Returning Products For Repair
6 Returning Products for Repair Return the product to the location where it was purchased by following the instructions at the URL below: www.ccontrols.com/rma.htm 7 Declaration of Conformity Additional compliance documentation can be found on our website. www.ccontrols.com UM-15095500-AA0 Page 39... - Page 40 United States China United Kingdom Germany Contemporary Control Contemporary Controls Contemporary Controls Contemporary Controls Systems, Inc. (Suzhou) Co. Ltd GmbH Tel: +1-630-963-7070 Tel: +86 512 68095866 Tel: +44 (0)24 7641 3786 Tel: +49 341 520359 0 Fax: +1-630-963-0109 Fax: +86 512 68093760...
