User Mode Thermostat - Contemporary Controls BASstat Series User Manual

User Mode Thermostat

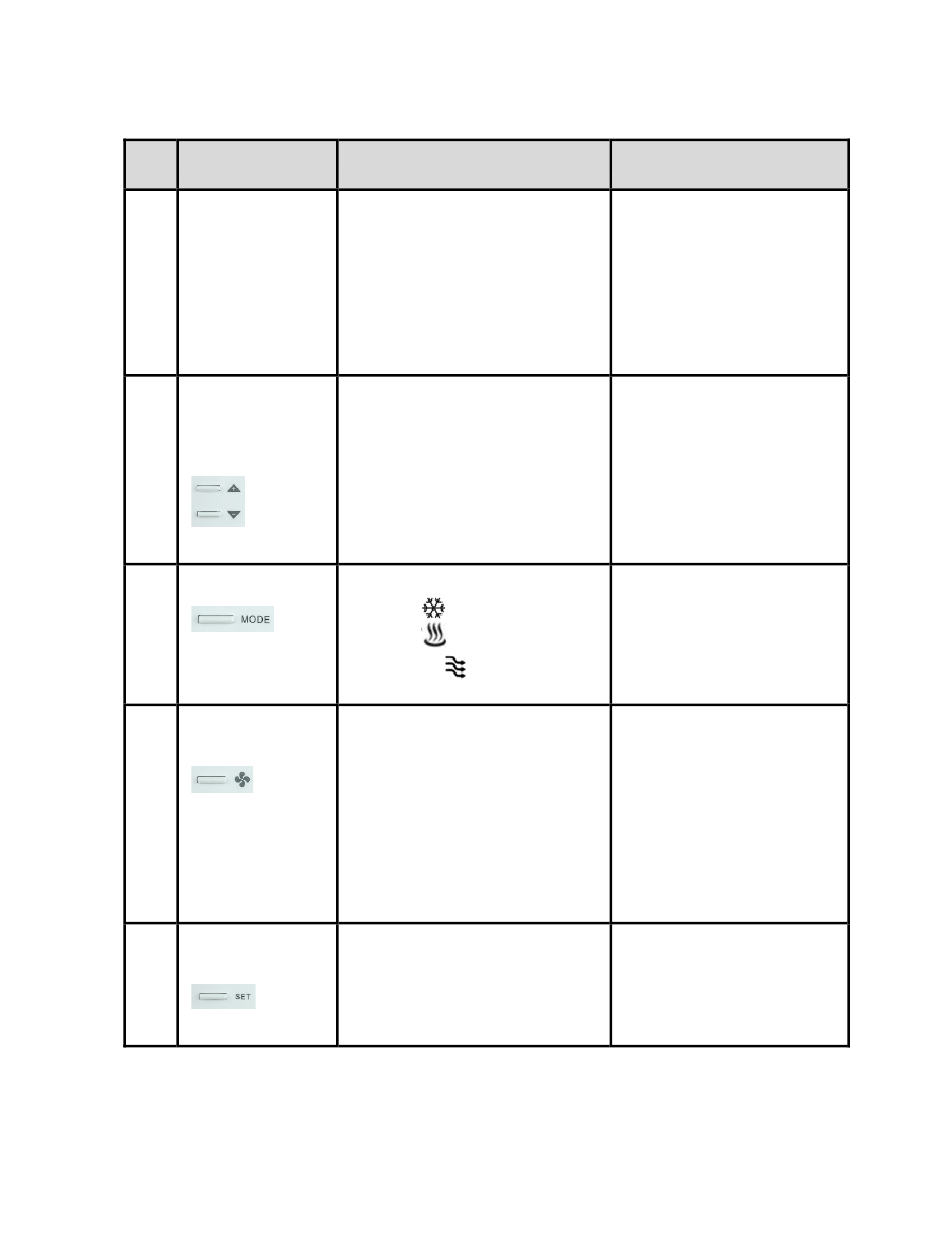

# Item
1 Normal Display
2 Temperature
Setpoint Setting
using Up/Down
Arrows
3 Mode Select
4 Fan Auto/
Continuous
5 Occupancy
Setting
UM-15095500-AA0
Description
Display current room or set-
point temperature
Set the desired temperature
Select the working mode:
Cooling ( )
Heating ( ), or
Ventilating ( )
Change the Fan mode between
Auto or Continuous.
Press SET, Used UP and
DOWN arrows to toggle
between the Occupied and
Unoccupied setting. Use MODE
or SET buttons to apply.
Remarks
Use the (SP) parameter in
the Engineering Menu or
[MSV6] Display Option for
BW2 or [MSV7] Display
Option for B2 model to
choose Current room or
Set- point temperature on
display.
The [AV0] / [AV3] Cool /
Heat Occupied and [AV8] /
[AV9] Unoccupied Cool /
Heat temperature setpoints
BACnet objects can be
used to write or force the
setpoint to a desired value
from BACnet supervisor.
After pressing the MODE
button, press the UP/
DOWN button to rotate the
selections. Dependent on
Control Type.
When AUTO is displayed,
the fan is handled
automatically. When AUTO
is flashing, the fan is
working under a delay
timer. When FAN icon is
spinning but AUTO is not
displayed, the fan will run
continuously until
commanded off.
The SET button could be
locked for applications
forbidding user occupancy
state control.
