Dakota Digital BIM-19-2 Quick Start Manual

Bus interface module for air ride pressure

Advertisement

Quick Links

BIM-19-2

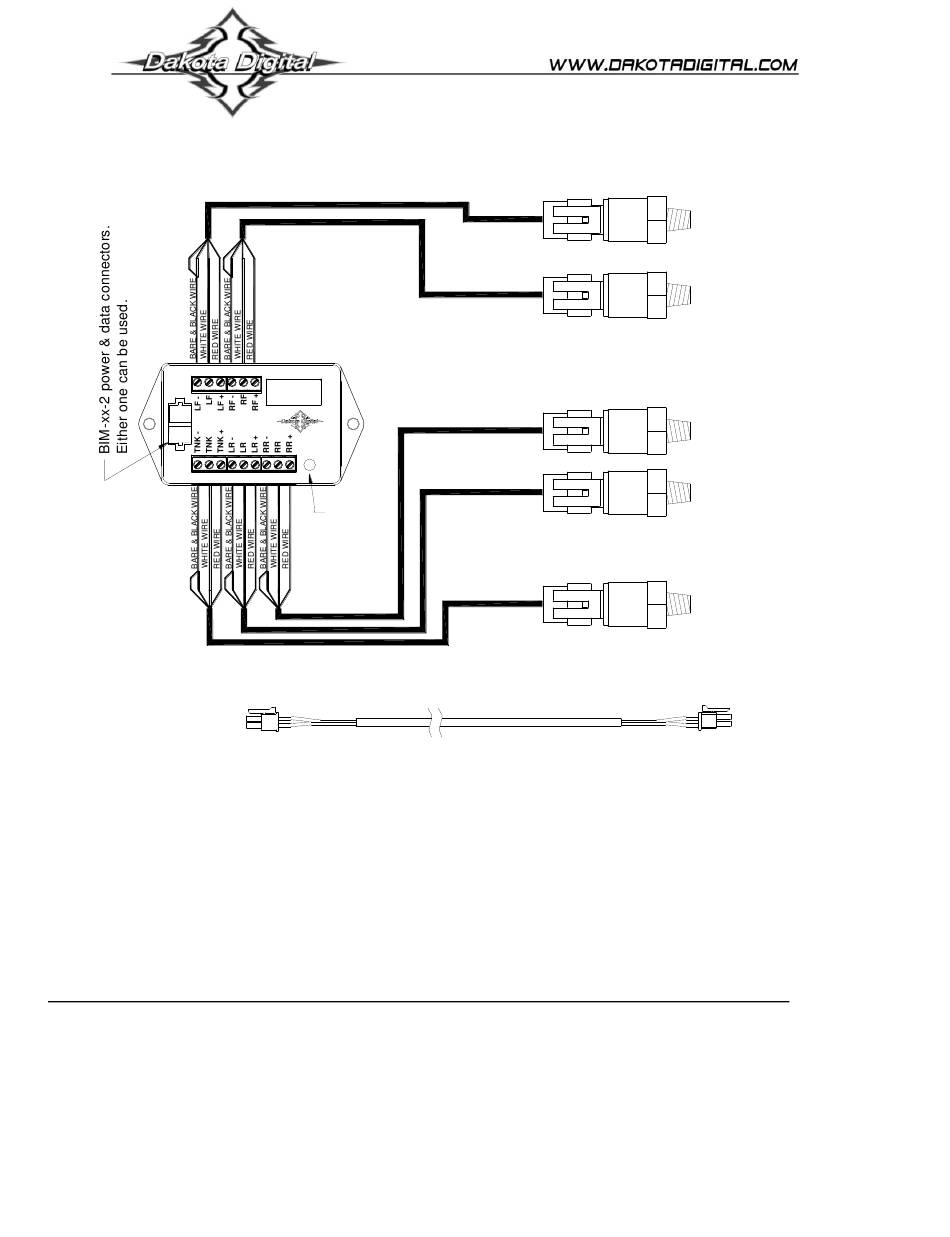

Connect to the BIM-19-2
if you need to connect to
an ODYR/SLX-19-7,
ODY-19-6, or BIM-xx-2
This Bus Interface Module has inputs for up to five solid state pressure sensors. Each input can be configured
individually. There are two interface (I/O) ports on the module. Either one can be connected to the gauge system or to
another module, allowing several units to be daisy chained together. Do not connect the I/O port to anything other than a
Dakota Digital gauge or BIM. Do not mount the module in the engine compartment; it should be mounted in interior of the
vehicle.
Each sensor connected to the bus needs a unique ID number assigned to it. This module has five inputs so it can use
one, two, three, four, or five ID numbers. The module is assigned an ID from 1 – 16 or turned off and will auto detect how
many sensors are connected and use additional ID's as needed. The factory default ID numbers are 12 – 16 with all five
sensors connected.
Air Ride setup options:
4 bag
LR
-
LEFT REAR
RR
-
RIGHT REAR
LF
-
LEFT FRONT
RF
-
RIGHT FRONT
TNK
-
TANK (optional for all bag setups)
Specs for each input are:
Part #
Range
SEN-03-9
0 - 300psi
BIM-19-2

Bus Interface Module for air ride pressure

(Sensors are sold separately)
setup/status switch
BIM-xx-2 36 inch power/data harness
3 bag
REAR
not connected
LEFT FRONT
RIGHT FRONT
resolution
low warning
0 – 252
1
Front/Rear
Left/Right
REAR
LEFT
not connected
RIGHT
FRONT
not connected
not connected
not connected
high warning
48 – 300
Left Front pressure sensor
Right Front pressure sensor
Right Rear pressure sensor
Left Rear pressure sensor
Tank pressure sensor
Connect directly to
ODYR/SLX-19-7, ODY-19-6,
or another BIM-xx-2.
MAN#650507C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIM-19-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dakota Digital BIM-19-2

  • Page 1 Do not connect the I/O port to anything other than a Dakota Digital gauge or BIM. Do not mount the module in the engine compartment; it should be mounted in interior of the vehicle.
  • Page 2 To set or change the ID numbers: The ID will not normally need to be changed. The following procedure will allow the BIM-19-2 to automatically select a new, unused set of ID’s. Make sure that all of the senders are connected first.
  • Page 3 When you are finished, select BACK to return to the BIM list menu, select BACK to return to the main menu, and then select EXIT SETUP to return to normal operation. With HDX systems the setup can also be done with the Dakota Digital app for Apple and Android devices. Troubleshooting quick tips: While the BIM is operating, the dot in the upper left corner of the display will indicate the status.
  • Page 4 This Warranty does not apply to any product or part thereof which in the opinion of the Company has been damaged through alteration, improper installation, mishandling, misuse, neglect, or accident. Dakota Digital assumes no responsibility for loss of time, vehicle use, owner inconvenience nor related expenses.
