TRIOBIKE HAFNIA Assembly Instructions Manual
Hide thumbs
Also See for HAFNIA:
- Original instructions manual (19 pages) ,
- Installation manual (6 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for TRIOBIKE HAFNIA
Summary of Contents for TRIOBIKE HAFNIA

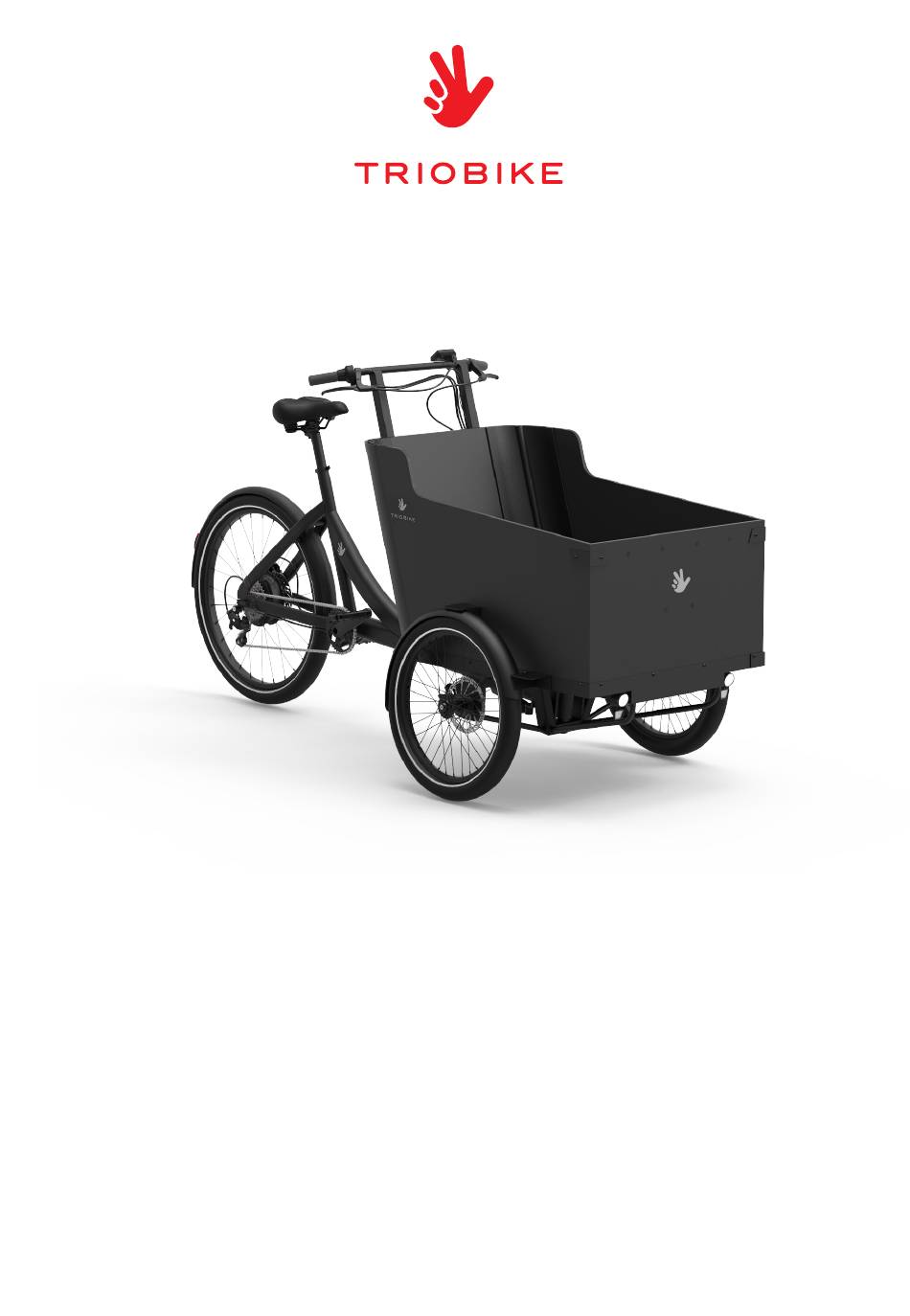

- Page 1 HAFNIA SEAT ASSEMBLY INSTRUCTIONS ENGLISH V 1.0...
- Page 2 SEAT KIT PARTS TRIOBIKE MODEL: XXX QR code - scan to download the manual Front seat 3x L shaped brackets: - 1x front (big) - 2x side (small) 8x M6 nuts 8x DIN 7991 M6x25 bolts 8x M6 washers 2x 3-points seat belts...
-
Page 3: Needed Tools
NEEDED TOOLS Hex key, sizes: 4 mm Wrench, sizes: 10 mm... -
Page 4: Assembling The Seat
ASSEMBLING THE SEAT ASSEMBLING THE SEAT Mount the brackets on the box, using 1x M6x25 bolt for each side bracket, and 2x M6x25 Place the front seat on the brackets, aligning the holes. Mount the seat on the brackets bolt for the front one. Put bolts, washers and nuts according to the picture above. using 1x M6x25 bolt for each side bracket, and 2x M6x25 bolt for the front one. - Page 5 ASSEMBLING THE SEAT ASSEMBLING THE SEAT Connect seat belt shoulder holders to the wall on the box with 2xM6x35 bolt each in the Connect seat belt bottom parts to the box floor, using 1xM6x25 bolt each in the specific specific holes. Put bolts, washers and nuts according to the picture. threaded holes.
- Page 6 TITLE TRIOBIKE A/S Vesterbrogade 149, 1620 Copenhagen V - Denmark phone: +45 3670 0070 info@triobike.dk | www.triobike.com...
