HAFNIA
ORIGINAL INSTRUCTIONS
ENGLISH V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAFNIA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRIOBIKE HAFNIA

Summary of Contents for TRIOBIKE HAFNIA

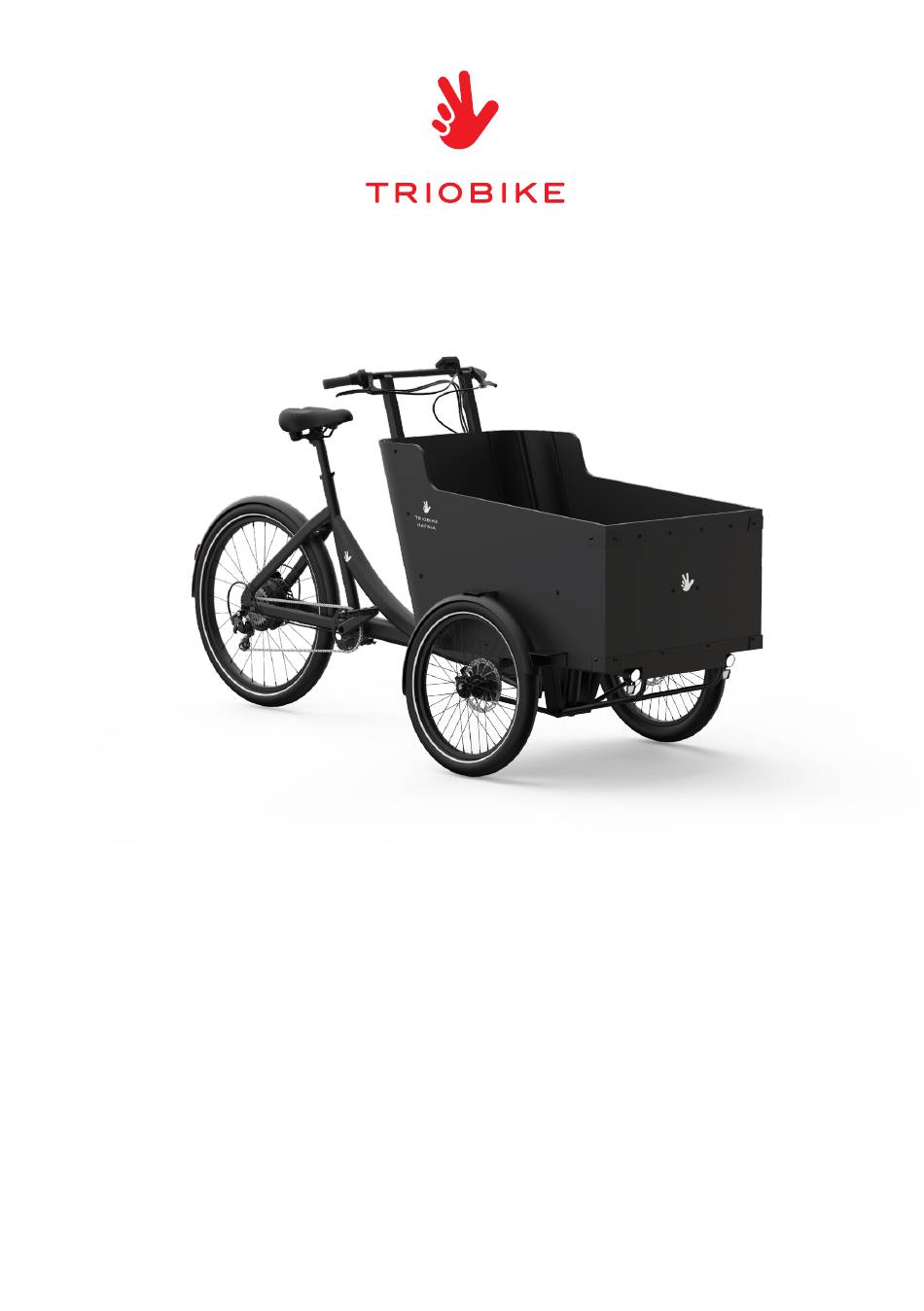

  • Page 1 HAFNIA ORIGINAL INSTRUCTIONS ENGLISH V 1.0...
  • Page 2 Our customer service department is dedicated to your satisfaction with Triobike and its products. If you have questions or need advice regarding assembly, parts, performance, or returns, please contact the experts at Triobike.
  • Page 3 INDEX ABOUT THIS MANUAL REMINDER WARNINGS GENERAL SAFETY SAFETY CHECKLIST INSTRUCTIONS QUICK RELEASE SEAT CLAMP PARKING LOCK GEAR E-SYSTEM HOOD SEAT BELTS SPECIFICATIONS DIMENSIONS WARRANTY MAINTENANCE EC DECLARATION OF CONFORMITY...

  • Page 4: About This Manual

    ABOUT THIS MANUAL WARNINGS It is important that you understand your new bicycle. By reading this manual before you go DO NOT INSTALL ANY KIND OF ADDITIONAL ELECTRIC MOTOR out on your first ride, you’ll know how to get better performance, comfort, and enjoyment OR INTERNAL COMBUSTION ENGINE TO THE BICYCLE.

  • Page 5: General Safety

    - The usage of bicycles or any accessories such as lamps, bells etc. is the user’s own - Do not use items that may restrict your hearing and vision. responsibility, and TRIOBIKE cannot be held responsible for any damage, accidents, personal injury or fines caused by the usage of these products.
  • Page 6 GENERAL SAFETY GENERAL SAFETY WET WEATHER NIGHT RIDING - When riding in wet weather always use safety lights to enhance visibility. - Do not ride the bike at night without lights on, both front and rear. - Exercise extreme caution when riding in wet conditions. - If using battery powered lights, make sure batteries are well charged.
  • Page 7 GENERAL SAFETY CORNERING TECHNIQUE - Brake slightly before cornering and prepare to lean your body into the corner. - Decrease your riding speed, avoid sudden braking and sharp turns. FRONT BOX - When loading and unloading passengers on the front box, be sure that the parking lock is activated.

  • Page 8: Safety Checklist

    SAFETY CHECKLIST Before every ride, it is important to carry out the following safety checks. Do not ride a CRANKS AND PEDALS bicycle that is not in proper working condition! - The pedals are securely tightened to the crank arms. - The crank arms are secured to the axle and are not bent.

  • Page 9: Quick Release Seat Clamp

    QUICK RELEASE SEAT CLAMP - Unlock the quick-release lever - Try to close the quick-release lever. If it closes easily, open it up and tighten the adjustment nut further. If it’s too difficult to close, open the quick release lever up and - Adjust the seat height up or down until the rider feels that he/she has control of the loosen the adjustment nut a little and try again.

  • Page 10: Parking Lock

    GEAR PARKING LOCK PUSH POPS OUT LOCK EXTERNAL SHIMANO GEARS The following steps are valid for the both the front and the rear brakes. The pictures show The rear shifter is placed on the right handlebar and has an indicator that shows the the front brake only.

  • Page 11: Mid Drive E-System

    MID DRIVE E-SYSTEM DECREASE SUPPORT LEVEL / WALK ASSIST INCREASE SUPPORT LEVEL / LIGHTS BATTERY CHARGE LEVEL ASSISTANCE LEVEL INCREASE SUPPORT LEVEL / LIGHTS POWER BUTTON DECREASE SUPPORT LEVEL / WALK ASSIST USING THE SYSTEM FRONT BOX MOUNTED BATTERY - To turn on the system, press the power button for more than 2 seconds. - To remove the battery, with the left hand insert the key in the lock and turn it counter- - Choose the desired assist level by pushing the “+/-”...

  • Page 12: Seat Belts

    HOOD SEAT BELTS FASTEN THE SEAT BELTS OPENING THE SIDE WINDOWS - move to the side of the box you want to open; - Join the two ending parts coming from the backrest parts of the seat belt. The right one - release the 3 snap buttons (check the red circles on the picture);...

  • Page 13: Specifications

    MAX PAYLOAD ON THE FRONT BOX: 100 kg STEERING DAMPER: two included DISPLAY: display & remote control included MAX TOTAL WEIGHT: 250 kg SADDLE: triobike gel BATTERY: Li-Ion cells, 522 Wh MAX OVERALL LOAD (RIDER+PASSENGERS): 152 kg E-SYSTEM WARRANTY: 1 - 2 years...
  • Page 14 DIMENSIONS DIMENSIONS 1380 2215 Hub O.L.D. dimensions in mm TRIOBIKE Hafnia Date: 30-05-2023 Copyright© TRIOBIKE A/S 2023...

  • Page 15: Warranty

    The bicycles are intended to be used for city biking. TRIOBIKE shall not be held responsible for any accidents, injury, losses or damage caused by use of the bicycle, being that of responsibility of the owner.

  • Page 16: Maintenance

    MAINTENANCE year/km operation dealer stamp checklist brakes gears 3 months bearings check spokes GENERAL ADVISE brakes gears Please remember to have your first check & fine tune after 3 months. Hereafter we bearings 1 year battery status recommend a complete service and fine tuning of your bike every year/2000 km. Please 2000 km tires check 1240 miles...

  • Page 17: Ec Declaration Of Conformity

    - meets all the provisions of the Directive 2004 / 108EG (Electromagnetic Compatibility); - meets the associated battery charger complies with all provisions of the Directive 2006/95 / EC (Low Voltage). Triobike A/S Copenhagen, 4 June 2023 Sammy Eisinger (managing director) Copyright© Triobike A/S 2023. All Rights Reserved.
  • Page 18 TRIOBIKE A/S Vesterbrogade 149, 1620 Copenhagen V - Denmark phone: +45 3670 0070 info@triobike.dk | www.triobike.com...
