- Page 1 SLICER G220, G250, G275, G300, G330, G350, V300, V330, V350, V370, AC300, AC350, AC370 Installation and Operation Manual 8.1.2016 4080230, 4080232, 4080234, 4080236, 4080238, 4080240, 4080250, 4080252...
-
Page 2: Purpose Of The Manual
CONTENT ORGANIZATION AND CONSULTATION PURPOSE of the MANUAL KEEPING THE MANUAL This manual must be considered as an integral part of the machine: It must be kept for the entire life of the machine. It must be given to the person who will use and maintain the machine. Beyond containing all the information necessary for the operators, it includes (divided in specific chapters) the electric diagrams to be used for maintenance and reparation. -
Page 3: Symbols Used In The Manual
SYMBOLS USED IN THE MANUAL DANGER Shows a possible danger for those who are using the machine and the nearby persons. Therefore, it signals that the operation taking place must be performed respecting all the safety norms contained in the manual PRECAUTION Shows a warning on useful information and/or further recommendations and/or suggestions about the actual operation. - Page 4 GRAVITY SLICING MACHINE TECHNICAL AND MANUFACTURING DATA MODEL TECHNICAL DATA G220 G250 G275 G300 G330 G350 Power (kW) / 0.25/0.35 0.25/0.35 0.27/0.40 0.27/0.40 0.38/0.50 0.38/0.50 (Hp) Blade diameter (mm) Cut capacity 170x210 190x250 160x230 160x230 240x250 240x250 (mm) regulation 0 ÷ 15...

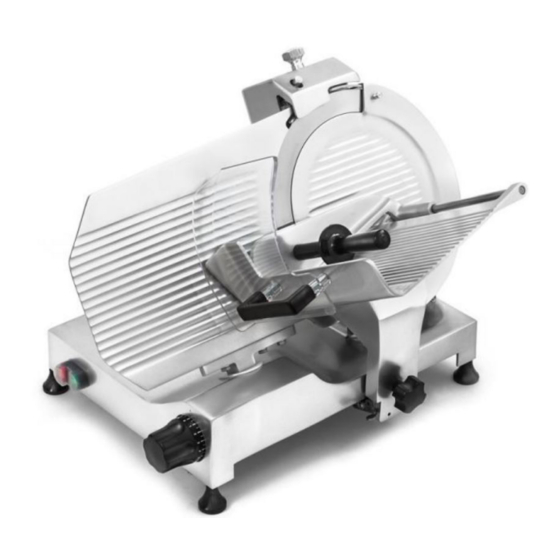

- Page 5 GROUP EXAMPLE 1. graduated scale knob 2. on/off push buttons 3. gauge plate 4. food table 5. carriage tray 6. product tray handle 7. food press 8. product tray hand protection 9. blade 10. sharpener GRAVITY SLICING MACHINE 11. sharpener knob 12.
- Page 6 NORMAL USE, IMPROPER USE, INCORRECT OR FORBIDDEN USE The slicing machine must be used only by an adequately trained person who has carefully read the contents of this manual. The operators must be, in perfect mental physical condition, have the right attitude and capacity and necessary knowledge for maneuvering and normal maintenance of simple mechanical and electrical components.
- Page 7 21. to remove the blockage or operate control devices without proper authorization 22. to push the feeder with bare hands on the food plate 23. to manoeuvre or use the machine with wet or humid hands (the knob hold can be slippery) 24.
-
Page 8: Safety Instructions
SAFETY INSTRUCTIONS INTRODUCTION Negligence of standards and safety procedures can cause danger and damage. When operating the machine the users mus respect: all rules, concerning the environment and human behaviour, established in the applicable laws and/or standards; with particular reference to the fixed plant upstream of the machine and for its connection/functioning;... - Page 9 PROTECTION DEVICES ON THE MACHINE The machine protections and safety devices must not be removed. If they have to be removed for any extraordinary maintenance some measures will have to be immediately adopted in order to inform of any risks and avoid any injuries. All the safety devices must be put back in place once the need for temporary removal is over.
- Page 10 TRANSPORTATION, PUT IN SERVICE AND USE The machine can be operated by authorized and properly trained personnel Before to switch on the machine perform the following operations: Read thoroughly this manual Be informed about the protections and emergency devices that are available on the machine, their localization and their functioning.
- Page 11 PREPARATION PRELIMINARY OPERATIONS STABILITY The machine stability is designed so that, in the foreseen functioning conditions, taking into account of the climatic conditions, is such to allow it the use without spilling risk, of falling, or of unexpected movement. Tenuto conto della conformazione e della sua posizione, quando posta su un banco di lavoro stabile, privo di ruote e solido, la macchina risulta essere intrinsecamente stabile senza necessità...
- Page 12 STARTING The machine starting is possible only with a voluntary action on the control device foreseen for this aim: button “I” for the machine start control. STOP For the stop control activate the button “0”. In case of temporary or prolonged stop, before putting in function the machine all food products placed on the food platform case plate must be removed.
- Page 13 BLADE SHARPENING Blade should be sharpened periodically and as soon as decrease in cutting. Please follows the following instructions: turn OFF the machine, return the sail to position “0” and unplug the power supply carefully clean the blade with denatured alcohol to decrease, Loosen the knob (1), lift the sharpener (2) and rotate it 180 °;...
-
Page 14: Maintenance Requirements
MAINTENANCE, TROUBLE SHOOTING AND CLEANING MAINTENANCE REQUIREMENTS With the term “maintenance” must not be understood only a periodic control of the normal operation, but also the analysis and the resulting remedy of all causes that for any reason puts the machine it out of service. It is absolutely necessary for the maintenance, cleaning, replacement parts and troubleshooting performed from the user, that this task is entrusted to an experienced, competent and authorized service person. - Page 15 CLEANING It is forbidden to clean the machine or its parts when in operation. All cleaning work must be put in place exclusively , after discharging car with the food being processed and have it isolated from the electrical power source and external energy .
- Page 16 At end of each Service person SLICE GUARD CLEANING shift and 1. switch off the machine and before the disconnect the feeding cable daily use wear metal gloves 2. unscrew two knobs (a) that block the slice guard, 3. clean the guard with the products specified below, 4.
-
Page 17: Extraordinary Maintenance
LUBRICATION It is forbidden to lubricate with hand the organs and the elements in motion. Lubrication can be done only and exclusively after discharging the machine with the food being processed and having it isolated from the electrical power source. FREQUENCY PERSONNEL Weekly... - Page 18 FAILURES IN MACHINE OPERATIONS The following failures can only be solved by trained service personal. TYPE POTENTIAL CAUSES ACTION AND CHECKS General Black out Contact the local electricity distributor Fuses or magnetic thermal After having eliminated the causes that Missing power fuses placed upstream of the have determined the protection device machine supply line...
-
Page 19: Disposal Of The Machine
DISPOSAL OF THE MACHINE The crossed container symbol on the machine shows that the product at the end of its useful life must be collected separately from other refusals If we decide to not use ever the machine because it is obsolete, damaged or worn, its out of service must be entrusted to specialized and trained personnel.
