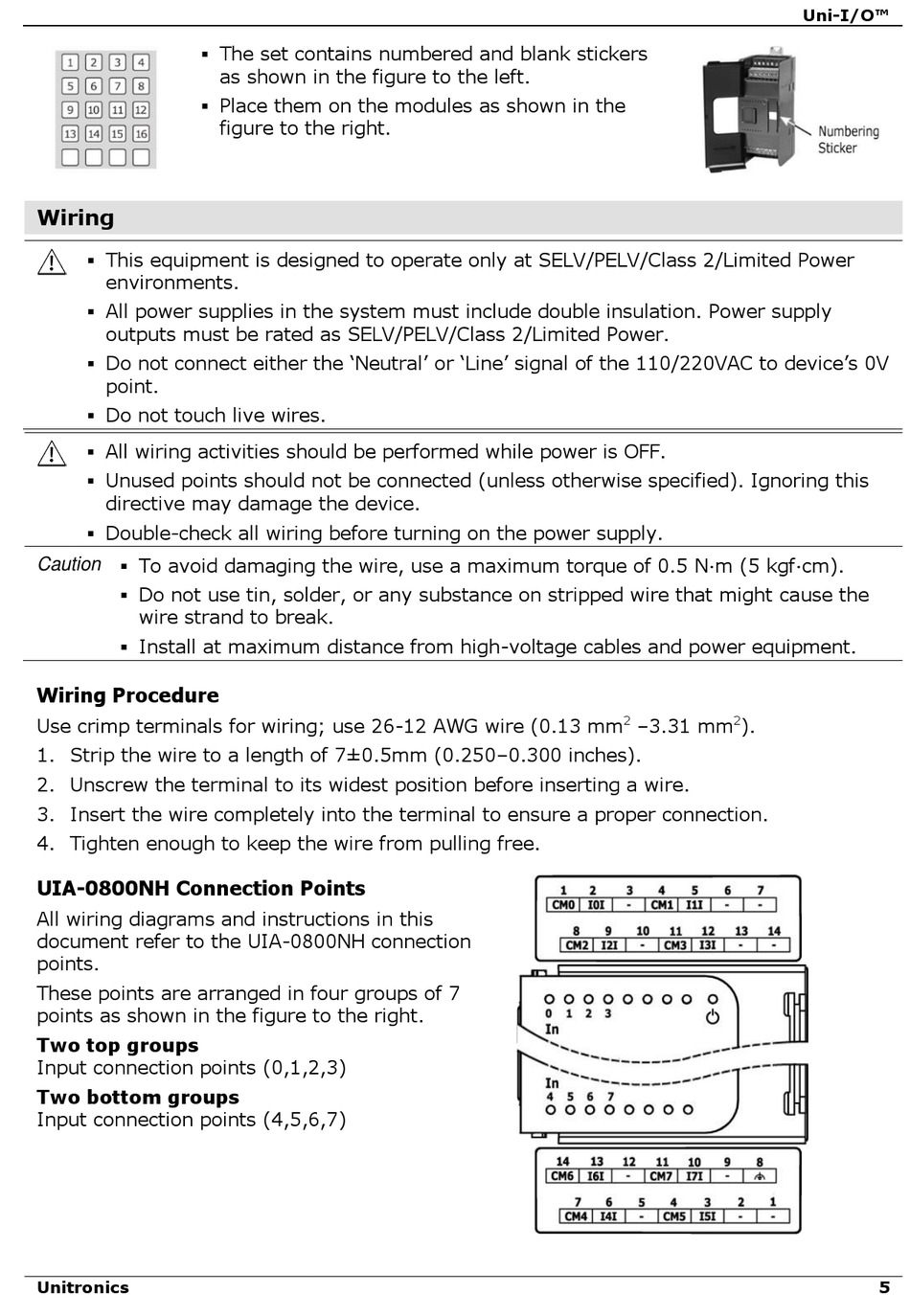

Wiring; Wiring Procedure; Uia-0800Nh Connection Points - Unitronics Uni-I/O UIA-0800NH Installation Manual

 The set contains numbered and blank stickers
 Place them on the modules as shown in the

Wiring

 This equipment is designed to operate only at SELV/PELV/Class 2/Limited Power
environments.
 All power supplies in the system must include double insulation. Power supply
outputs must be rated as SELV/PELV/Class 2/Limited Power.
 Do not connect either the 'Neutral' or 'Line' signal of the 110/220VAC to device's 0V
point.
 Do not touch live wires.
 All wiring activities should be performed while power is OFF.
 Unused points should not be connected (unless otherwise specified). Ignoring this
directive may damage the device.
 Double-check all wiring before turning on the power supply.
Caution  To avoid damaging the wire, use a maximum torque of 0.5 N·m (5 kgf·cm).
 Do not use tin, solder, or any substance on stripped wire that might cause the
wire strand to break.
 Install at maximum distance from high-voltage cables and power equipment.

Wiring Procedure

Use crimp terminals for wiring; use 26-12 AWG wire (0.13 mm
1. Strip the wire to a length of 7±0.5mm (0.250–0.300 inches).
2. Unscrew the terminal to its widest position before inserting a wire.
3. Insert the wire completely into the terminal to ensure a proper connection.
4. Tighten enough to keep the wire from pulling free.

UIA-0800NH Connection Points

All wiring diagrams and instructions in this
document refer to the UIA-0800NH connection
points.
These points are arranged in four groups of 7
points as shown in the figure to the right.
Two top groups
Input connection points (0,1,2,3)
Two bottom groups
Input connection points (4,5,6,7)
Unitronics
as shown in the figure to the left.
figure to the right.
2 2
–3.31 mm ).
