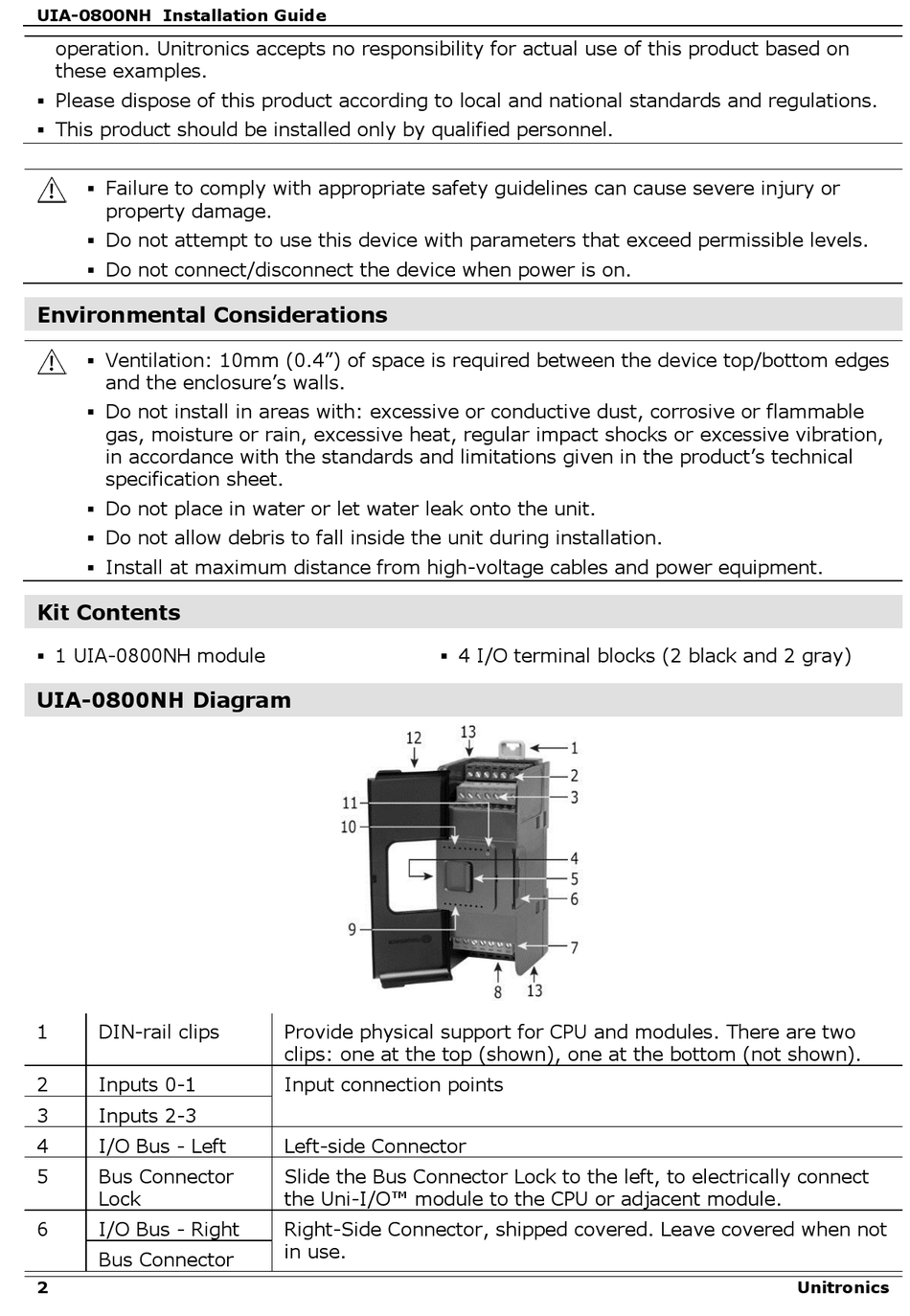

UIA-0800NH Installation Guide
operation. Unitronics accepts no responsibility for actual use of this product based on
these examples.
 Please dispose of this product according to local and national standards and regulations.
 This product should be installed only by qualified personnel.
 Failure to comply with appropriate safety guidelines can cause severe injury or
property damage.
 Do not attempt to use this device with parameters that exceed permissible levels.
 Do not connect/disconnect the device when power is on.

Environmental Considerations

 Ventilation: 10mm (0.4") of space is required between the device top/bottom edges
and the enclosure's walls.
 Do not install in areas with: excessive or conductive dust, corrosive or flammable
gas, moisture or rain, excessive heat, regular impact shocks or excessive vibration,
in accordance with the standards and limitations given in the product's technical
specification sheet.
 Do not place in water or let water leak onto the unit.
 Do not allow debris to fall inside the unit during installation.
 Install at maximum distance from high-voltage cables and power equipment.

Kit Contents

 1 UIA-0800NH module

UIA-0800NH Diagram

1 DIN-rail clips
2 Inputs 0-1
3 Inputs 2-3
4 I/O Bus - Left
5 Bus Connector
Lock
6 I/O Bus - Right
Bus Connector
2
 4 I/O terminal blocks (2 black and 2 gray)
Provide physical support for CPU and modules. There are two
clips: one at the top (shown), one at the bottom (not shown).
Input connection points
Left-side Connector
Slide the Bus Connector Lock to the left, to electrically connect
the Uni-I/O™ module to the CPU or adjacent module.
Right-Side Connector, shipped covered. Leave covered when not
in use.
