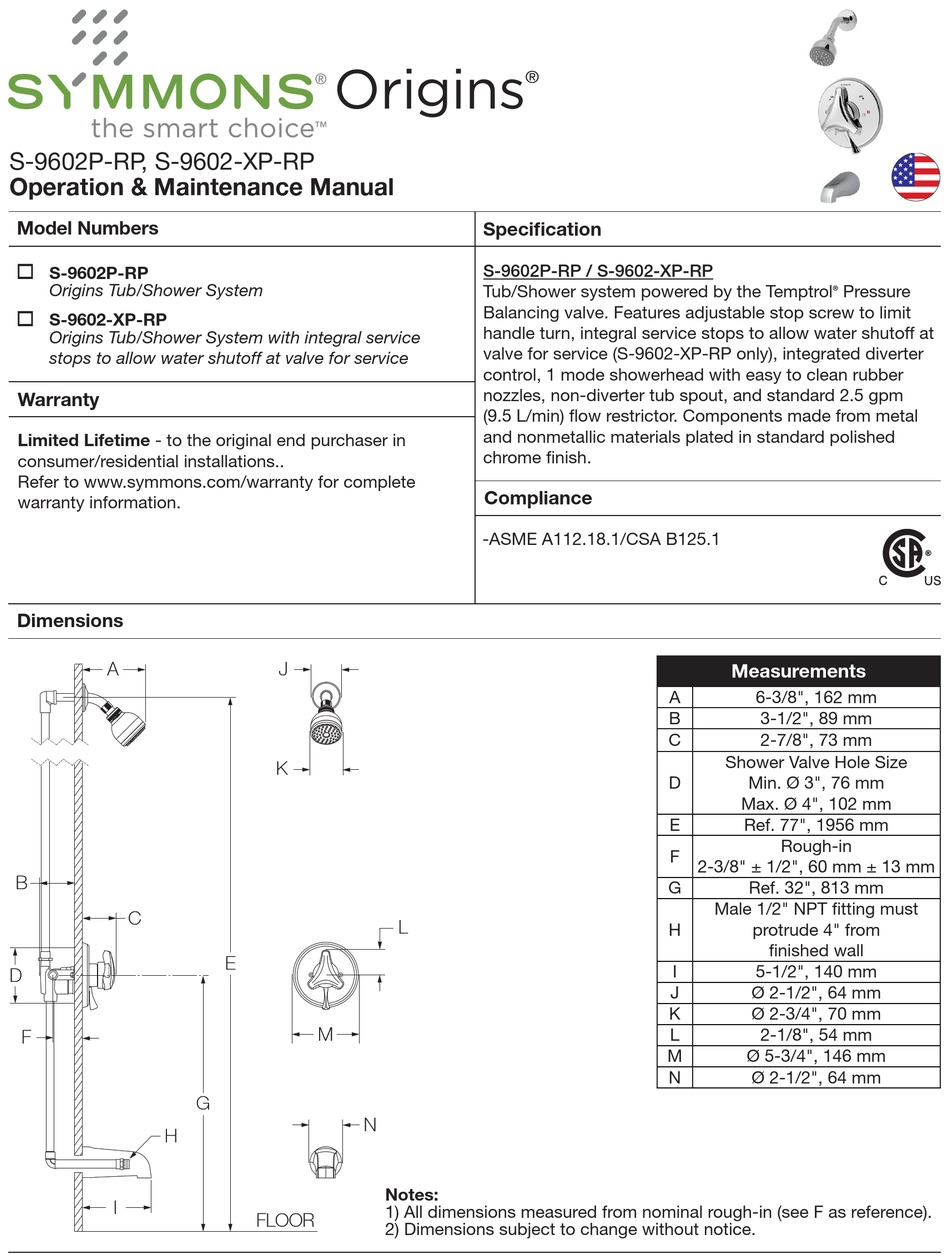

Symmons Origins S-9602P-RP Operation & Maintenance Manual

S-9602P-RP, S-9602-XP-RP
Operation & Maintenance Manual
Model Numbers

S-9602P-RP

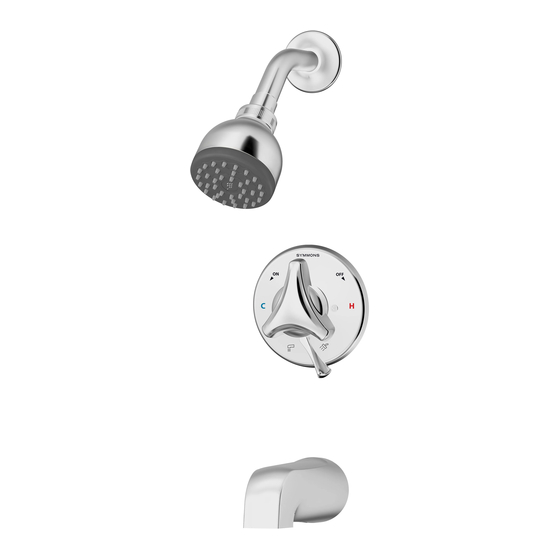

Origins Tub/Shower System

S-9602-XP-RP
Origins Tub/Shower System with integral service
stops to allow water shutoff at valve for service

Warranty

Limited Lifetime - to the original end purchaser in
consumer/residential installations..
Refer to www.symmons.com/warranty for complete
warranty information.

Dimensions

A A
B B
C C
D D
F F
H H
I I
Origins
J J
K K
E E
M M
G G
N N
FLOOR FLOOR
®

Specification

S-9602P-RP / S-9602-XP-RP
Tub/Shower system powered by the Temptrol
Balancing valve. Features adjustable stop screw to limit
handle turn, integral service stops to allow water shutoff at
valve for service (S-9602-XP-RP only), integrated diverter
control, 1 mode showerhead with easy to clean rubber
nozzles, non-diverter tub spout, and standard 2.5 gpm
(9.5 L/min) flow restrictor. Components made from metal
and nonmetallic materials plated in standard polished
chrome finish.

Compliance

-ASME A112.18.1/CSA B125.1
L L
Notes:
1) All dimensions measured from nominal rough-in (see F as reference).
2) Dimensions subject to change without notice.
Pressure
®
Measurements
A 6-3/8", 162 mm
B 3-1/2", 89 mm
C 2-7/8", 73 mm
Shower Valve Hole Size
D Min. Ø 3", 76 mm
Max. Ø 4", 102 mm
E Ref. 77", 1956 mm
Rough-in
F
2-3/8" ± 1/2", 60 mm ± 13 mm
G Ref. 32", 813 mm
Male 1/2" NPT fitting must
H protrude 4" from
finished wall
I 5-1/2", 140 mm
J Ø 2-1/2", 64 mm
K Ø 2-3/4", 70 mm
L 2-1/8", 54 mm
M Ø 5-3/4", 146 mm
N Ø 2-1/2", 64 mm
