SK23 Series
Kitchen Faucet
Operation & Maintenance Manual
Model Numbers
SK23
Faucet only
SK231
Faucet with swivel spray aerator in place of
hose and spray
SK232
Faucet with hose and spray
SK233
Faucet with hose and spray mounted on
escutcheon
Compliance
- ASME A112.18.1/CSA B125.1
- NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
WARNING: This product can expose you to chemicals
including lead, which is known to the state of California to
cause cancer, birth defects, or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
Dimensions
Symmons Industries, Inc.
Copyright © 2023 Symmons Industries, Inc.
Origins®

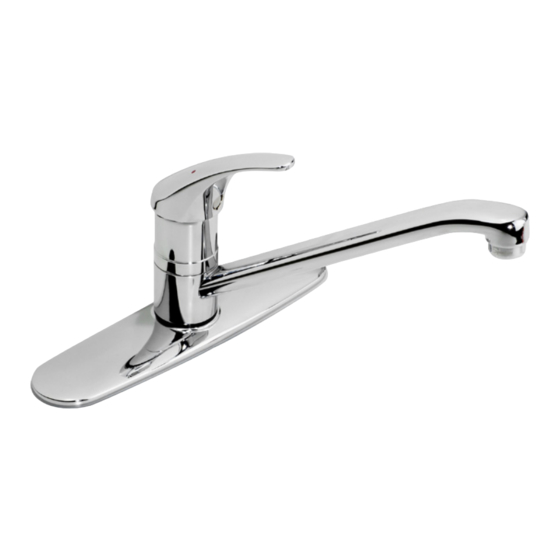

Origins Kitchen Faucet, S23
spacer
1
"-20
UNC
4
31 Brooks Drive
Feature Highlights
Single lever kitchen faucet with red & blue indicators
on handle
Handle limit stops
8-3/4 inch swing spout with aerator
Ceramic control components
3/8 inch braided supply lines
Metal contruction, polished chrome finish
1.5 gpm (5.7 L/min) standard flow rate
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
3
"-COMP
8
Braintree, MA 02184
Phone: (800) 796-6667
symmons.com
gethelp@symmons.com
Model SK23
Fax: (800) 961-9621
ZV-3758 REV 0
061423
