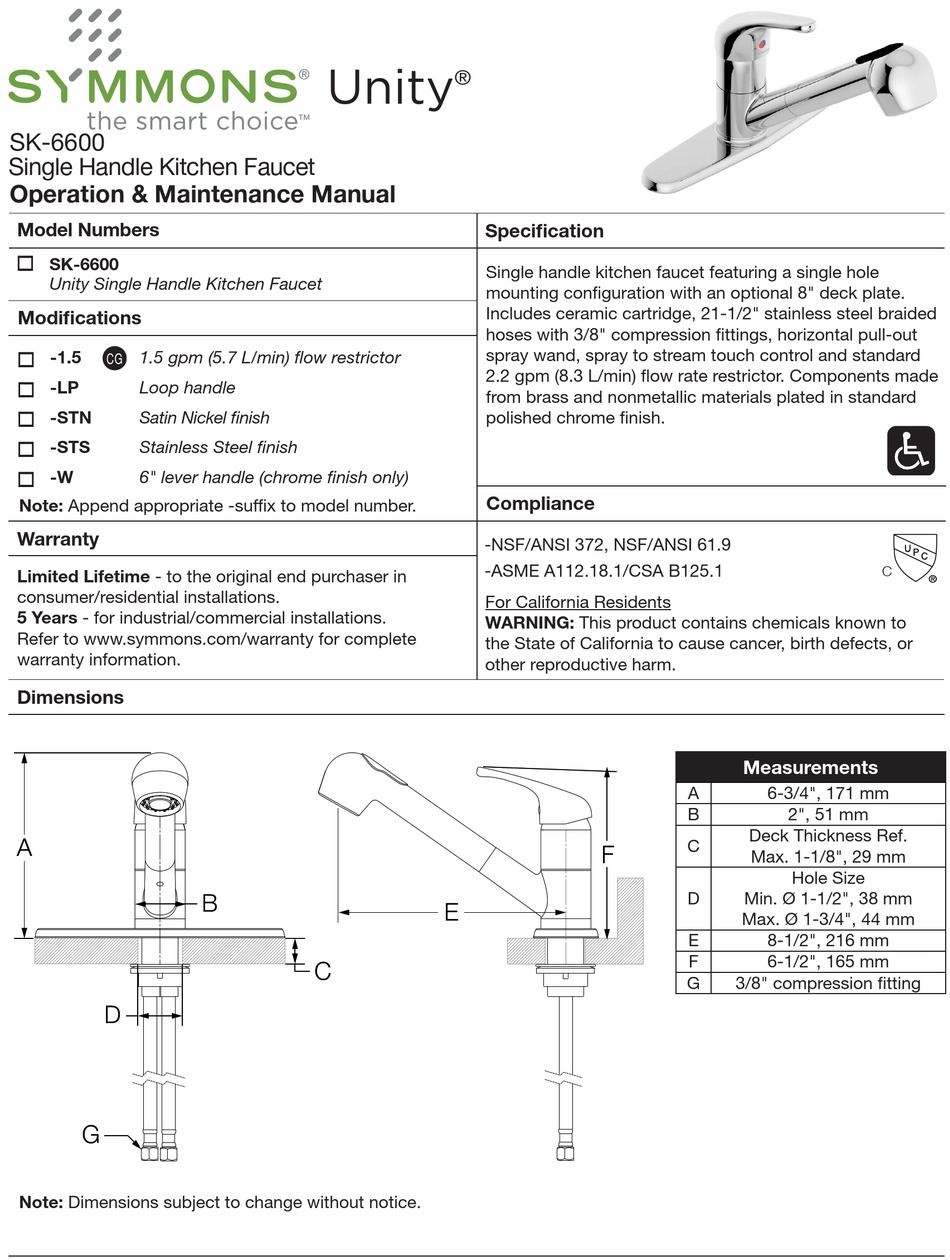

SK-6600
Single Handle Kitchen Faucet
Operation & Maintenance Manual
Model Numbers
SK-6600
Unity Single Handle Kitchen Faucet
Modifications
-1.5
CG
1.5 gpm (5.7 L/min) flow restrictor
-LP
Loop handle
-STN
Satin Nickel finish
-STS
Stainless Steel finish
-W
6" lever handle (chrome finish only)
Note: Append appropriate -suffix to model number.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Dimensions
A A
D D
G G
Note: Dimensions subject to change without notice.
Unity
B B
C C
®
Specification

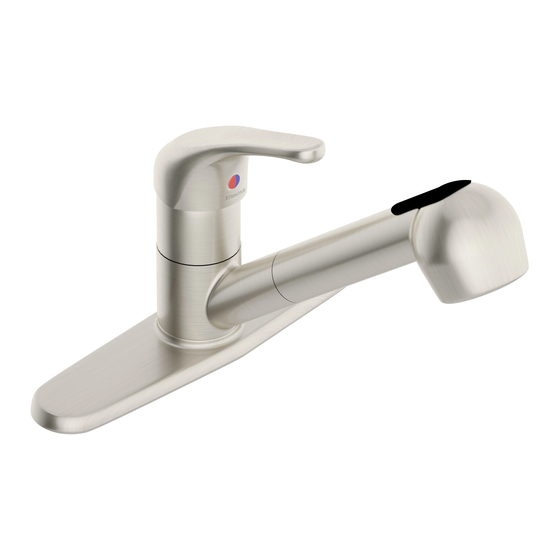

Single handle kitchen faucet featuring a single hole
mounting configuration with an optional 8" deck plate.
Includes ceramic cartridge, 21-1/2" stainless steel braided
hoses with 3/8" compression fittings, horizontal pull-out
spray wand, spray to stream touch control and standard
2.2 gpm (8.3 L/min) flow rate restrictor. Components made
from brass and nonmetallic materials plated in standard
polished chrome finish.
Compliance
-NSF/ANSI 372, NSF/ANSI 61.9
-ASME A112.18.1/CSA B125.1
For California Residents
WARNING: This product contains chemicals known to
the State of California to cause cancer, birth defects, or
other reproductive harm.
F F
E E
Measurements
A
6-3/4", 171 mm
B
2", 51 mm
Deck Thickness Ref.
C
Max. 1-1/8", 29 mm
Hole Size
D
Min. Ø 1-1/2", 38 mm
Max. Ø 1-3/4", 44 mm
E
8-1/2", 216 mm
F
6-1/2", 165 mm
G
3/8" compression fitting
c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SK-6600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Symmons SK-6600

  • Page 1 Limited Lifetime - to the original end purchaser in consumer/residential installations. For California Residents 5 Years - for industrial/commercial installations. WARNING: This product contains chemicals known to Refer to www.symmons.com/warranty for complete the State of California to cause cancer, birth defects, or warranty information. other reproductive harm. Dimensions Measurements 6-3/4", 171 mm...
  • Page 2: Parts Breakdown

    Parts Breakdown Replacement Parts Item Description Part Number Loop Handle Kit RK-020* Solid Handle Kit RK-016* Cartridge LN-01413 RK-018-1.5* (1.5) Spray Wand RK-018* (2.2) FLR-101-1.5 (1.5) Aerator RL-215-2.2 (2.2) Deck Plate Assembly RK-019* Mounting Hardware RK-017* 6" lever Handle Kit RK-025* *Note: Append -STN to part number for Satin Nickel finish;...
  • Page 3: Installation

    Installation 1) Insert supply line hoses (P), wand 3) Attach supply lines to shut-off 6) Remove wand from hose. hose (O) and shank of faucet valves and hand tighten. Using a body (J) through deck plate (R), wrench, finish with one-half turn. mounting gasket (K) and deck DO NOT overtighten.
  • Page 4: Maintenance

    ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2017 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3120 REV F 121917...
  • Page 5 Limitada de por vida - para el comprador original en -NSF/ANSI 372, NSF/ANSI 61.9 instalaciones para el consumidor/residenciales. -ASME A112.18.1/CSA B125.1 5 años - para instalaciones industriales/comerciales. Consulte www.symmons.com/warranty para obtener información completa sobre la garantía. Dimensiones Medidas 6-3/4", 171 mm 2", 51 mm...
  • Page 6: Herramientas Requeridas

    Desglose de piezas Repuestos Artículo Descripción Número de pieza Manija de lazo RK-020* Juego de manijas RK-016* Cartucho LN-01413 Caño aerosol RK-018-1.5* (1.5) RK-018* (2.2) extraible FLR-101-1.5 (1.5) Aireador RL-215-2.2 (2.2) Placa de cubierta RK-019* del grifo Hardware de RK-017* montaje 6"...
  • Page 7: Instalación

    Instalación 1) Insertar línea las mangueras de 3) Aplique cinta de plomero para 6) Retire la manguera varita. suministro (P), manguera de tubo válvula de cierre. Utilizando una (O) y caña del cuerpo del grifo (J) llave, termine con media vuelta. a través placa de cubierta del grifo NO apriete demasiado.
  • Page 8: Mantenimiento

    ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2017 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3120 REV F 121917...
  • Page 9: Garantie

    À vie limitée - à l’acheteur original dans les installations -NSF/ANSI 372, NSF/ANSI 61.9 du consommateur ou résidentielles. -ASME A112.18.1/CSA B125.1 5 ans - pour des installations commerciales et industrielles. Se reporter au site www.symmons.com/warranty (en anglais) pour l’information complète concernant la garantie. Dimensions Mesures 6-3/4 po, 171 mm 2 po, 51 mm Épaisseur du comptoir...
  • Page 10: Pièces De Remplacement

    Pièces de remplacement Pièces de remplacement Article Description Numéro de pièce Poignée en boucle RK-020* Ensemble de poignée RK-016* Cartouche LN-01413 RK-018-1.5* (1.5) Tirez sur pulvérisation RK-018* (2.2) FLR-101-1.5 (1.5) Aérateur RL-215-2.2 (2.2) Plaque de pont de RK-019* robinet Matériel de xation RK-017* 6 po Poignée à...
  • Page 11 Installation 1) Insérer les tuyaux d’alimentation 3) Appliquer du ruban de plombier 6) Enlever le bec du tuyau du robinet. en ligne (P), tuyau de rallonge (O) pour la vanne d’entrée. A l’aide et la tige du corps de robinet (J) d’une clé, terminer avec un demi- par plaque de pont de robinet (R), tour.
  • Page 12 ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2017 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3120 REV F 121917...
