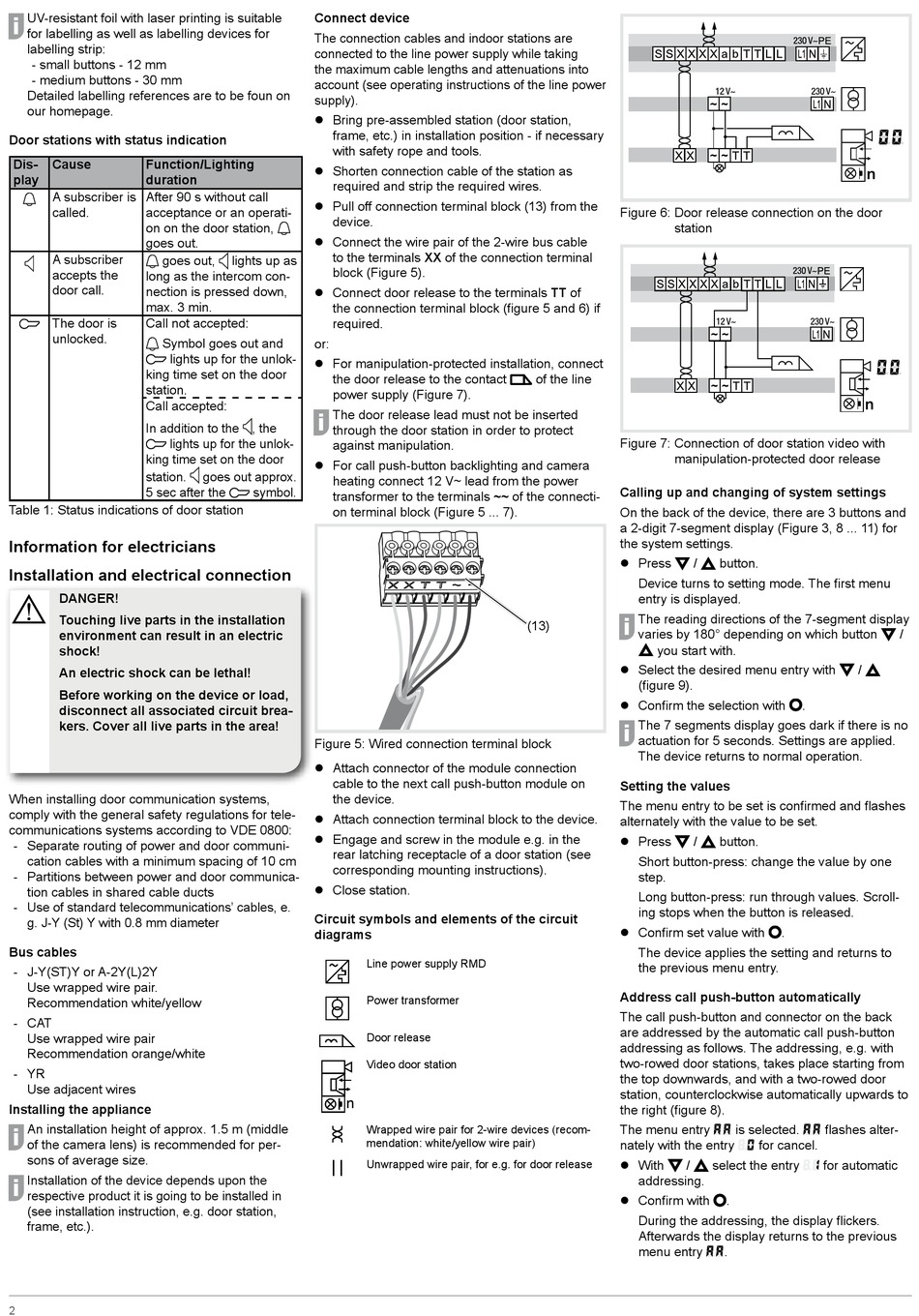

ELCOM RE 610 Series Quick Start Manual page 2

UV-resistant foil with laser printing is suitable
P
for labelling as well as labelling devices for
labelling strip:
- small buttons - 12 mm
- medium buttons - 30 mm
Detailed labelling references are to be foun on
our homepage.
Door stations with status indication
Dis- Cause Function/Lighting
play duration
A subscriber is After 90 s without call
called. acceptance or an operati-
on on the door station,
goes out.
A subscriber
goes out,
accepts the
long as the intercom con-
door call.
nection is pressed down,
max. 3 min.
The door is Call not accepted:
unlocked.
Symbol goes out and
lights up for the unlok-
king time set on the door
station.
Call accepted:
In addition to the , the
lights up for the unlok-
king time set on the door
station.
5 sec after the
Table 1: Status indications of door station
Information for electricians
Installation and electrical connection
DANGER!
ç
Touching live parts in the installation
environment can result in an electric
shock!
An electric shock can be lethal!
Before working on the device or load,
disconnect all associated circuit brea-
kers. Cover all live parts in the area!
When installing door communication systems,
comply with the general safety regulations for tele-
communications systems according to VDE 0800:
- Separate routing of power and door communi-
cation cables with a minimum spacing of 10 cm
- Partitions between power and door communica-
tion cables in shared cable ducts
- Use of standard telecommunications' cables, e.
g. J-Y (St) Y with 0.8 mm diameter
Bus cables
- J-Y(ST)Y or A-2Y(L)2Y
Use wrapped wire pair.
Recommendation white/yellow
- CAT
Use wrapped wire pair
Recommendation orange/white
- YR
Use adjacent wires
Installing the appliance
An installation height of approx. 1.5 m (middle
P
of the camera lens) is recommended for per-
sons of average size.
Installation of the device depends upon the
P
respective product it is going to be installed in
(see installation instruction, e.g. door station,
frame, etc.).
2
Connect device
The connection cables and indoor stations are
connected to the line power supply while taking
the maximum cable lengths and attenuations into
account (see operating instructions of the line power
supply).
z Bring pre-assembled station (door station,
frame, etc.) in installation position - if necessary
with safety rope and tools.
z Shorten connection cable of the station as
required and strip the required wires.
z Pull off connection terminal block (13) from the
device.
z Connect the wire pair of the 2-wire bus cable
to the terminals XX of the connection terminal
lights up as
block (Figure 5).
z Connect door release to the terminals TT of
the connection terminal block (figure 5 and 6) if
required.
or:
z For manipulation-protected installation, connect
the door release to the contact
power supply (Figure 7).
The door release lead must not be inserted
P
through the door station in order to protect
against manipulation.
z For call push-button backlighting and camera
goes out approx.
heating connect 12 V~ lead from the power
symbol.
transformer to the terminals ~~ of the connecti-
on terminal block (Figure 5 ... 7).
Figure 5: Wired connection terminal block
z Attach connector of the module connection
cable to the next call push-button module on
the device.
z Attach connection terminal block to the device.
z Engage and screw in the module e.g. in the
rear latching receptacle of a door station (see
corresponding mounting instructions).
z Close station.
Circuit symbols and elements of the circuit
diagrams
Line power supply RMD
Power transformer
Door release
Video door station
Wrapped wire pair for 2-wire devices (recom-
mendation: white/yellow wire pair)
Unwrapped wire pair, for e.g. for door release
Figure 6: Door release connection on the door
station
of the line
Figure 7: Connection of door station video with
manipulation-protected door release
Calling up and changing of system settings
On the back of the device, there are 3 buttons and
a 2-digit 7-segment display (Figure 3, 8 ... 11) for
the system settings.
z Press /
Device turns to setting mode. The first menu
entry is displayed.
The reading directions of the 7-segment display
P
(13)
varies by 180° depending on which button
you start with.
z Select the desired menu entry with
(figure 9).
z Confirm the selection with
The 7 segments display goes dark if there is no
P
actuation for 5 seconds. Settings are applied.
The device returns to normal operation.
Setting the values
The menu entry to be set is confirmed and flashes
alternately with the value to be set.
z Press /
Short button-press: change the value by one
step.
Long button-press: run through values. Scroll-
ing stops when the button is released.
z Confirm set value with
The device applies the setting and returns to
the previous menu entry.
Address call push-button automatically
The call push-button and connector on the back
are addressed by the automatic call push-button
addressing as follows. The addressing, e.g. with
two-rowed door stations, takes place starting from
the top downwards, and with a two-rowed door
station, counterclockwise automatically upwards to
the right (figure 8).
The menu entry
nately with the entry
z With /
addressing.
z Confirm with
During the addressing, the display flickers.
Afterwards the display returns to the previous
menu entry
button.
/
.
button.
.
is selected. flashes alter-
for cancel.
select the entry for automatic
.
.
/
