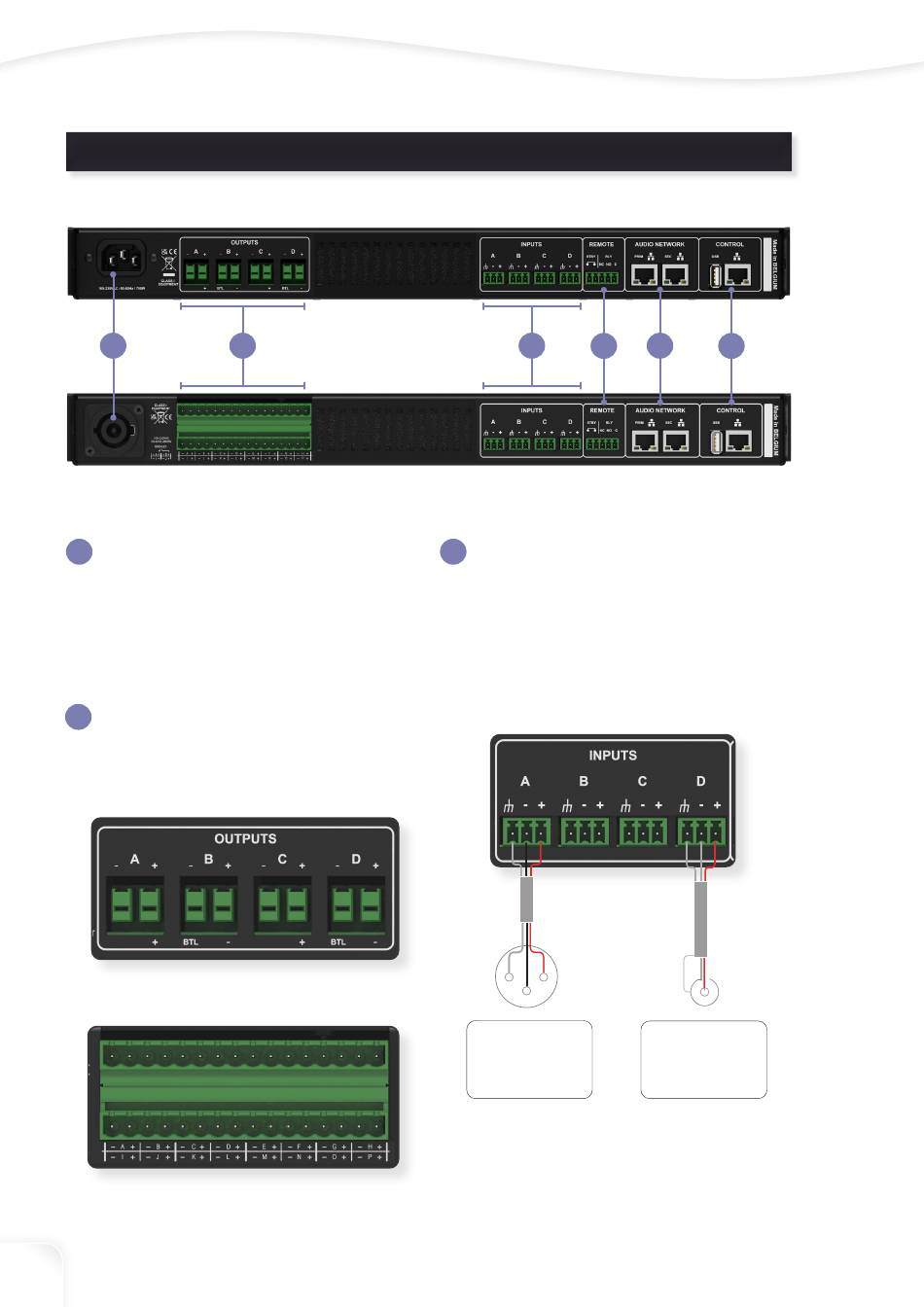

Rear Panel

Rear Panel
CP354D - 4 channel
1
CP716D - 16 channel
IEC connectors accept worldwide operation
1
from 100-240Vac. CloudPower™️ must be
grounded (earthed) with the safety ground
pin to the mains distribution system.
Never disconnect the earth (ground) pin on
the mains cable (AC power cord).
Amplifier output connectors are sturdy
2
terminal block connectors. Channels are
located from left to right. Each channel has a
marked hot (+) and cold (-) terminal.
4 channel models
16 channel CP716D
12
2 3 4
Balanced analog line inputs are available
3
on terminal block connectors with clearly
marked hot (+), cold (-) and ground terminals.
The use of twin-and-screen cable is recom-
mended. In order to link inputs, physical splits
can be made directly on the terminal block
connectors.
The input impedance is 20k Ohms.
XLR
1 2
3
Balanced
1 = Ground
2 = Hot +
3 = Cold -
Rear Panel
5 6
-
+ RCA
Unbalanced
Pin = Hot +
Screen = Cold -
Screen = Ground
