SA12 PWM Amplifier
INTRODUCTION
This easy-to-use kit provides a platform for the evaluation of PWM amplifiers using the SA12 pin-out con-
figuration. It can be used to analyze a multitude of standard or proprietary circuit configurations, and is flexi-
ble enough to do most standard amplifier test configurations.
The schematic is shown in Figure 2. Note that all of the components shown on the schematic will proba-
bly not be used for any single circuit. Some components will simply be omitted, while others require installa-
tion of a jumper to complete the signal path.
Only components unique to the EK17 are provided in this kit. Hardware similar to that shown in Figure 4
must be obtained locally.
www.apexanalog.com
Evaluation Kit

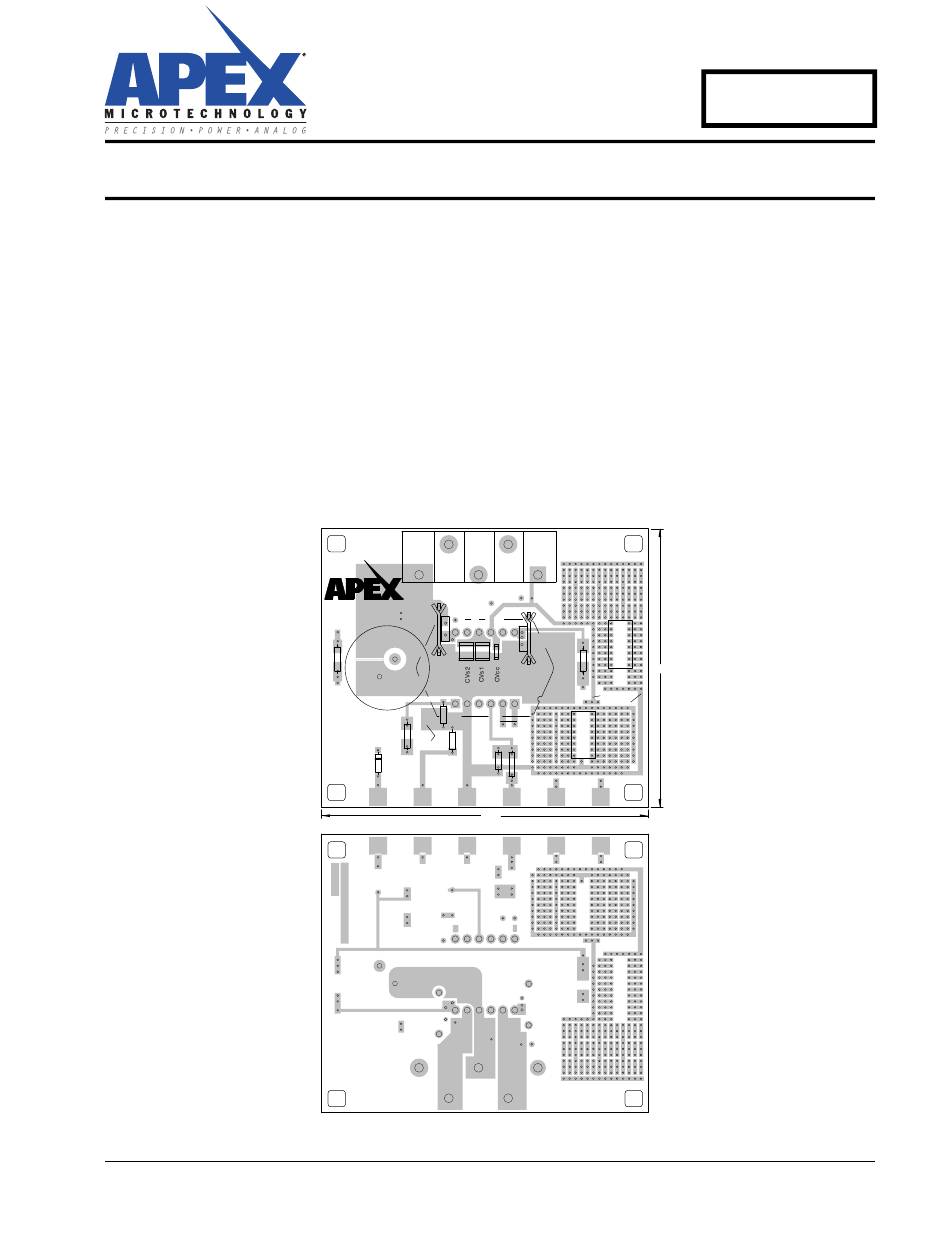

Figure 1: PCB
TOP SIDE
TB1
PWR
B OUT
+Vs
A OUT
GND
M I
C
R
O
T
E C H
N
O
L
O
G
Y
EVAL19 R
7
COMPONENT SIDE
+
Rb
+
R1
CVs3
6
C3
J1
R3
SIG
C2
GND
C1
D1
RAMP/-PWM
OR
SIG
+PWM
SHDN
FLAG
GND
5.500
BOTTOM SIDE
© Apex Microtechnology Inc.
All rights reserved
Vcc
12
Ra
IC
R2
4.686
Vcc
SIG
GND
1
IC
R4
SPARE
SPARE
EK17
Jan 2016
EK17U Rev I
