SUPERSERVER 1028GQ-TXR(T) User's Manual
2-4

Rack Mounting Instructions

This section provides information on installing the chassis into a rack unit with the
rails provided. There are a variety of rack units on the market, which may mean
that the assembly procedure will differ slightly from the instructions provided. You
should also refer to the installation instructions that came with the rack unit you are
using. Note: This rail will fit a rack between 27" and 32" deep.

Identifying the Sections of the Rack Rails

The chassis package includes two rail assemblies in the rack mounting kit. Each
assembly consists of three sections: an inner rail that secures directly to the chassis,
an outer rail that secures to the rack, and a middle rail that slides in the outer rail.
These assemblies are specifically designed for the left and right side of the chassis.
Middle Rails,
Front

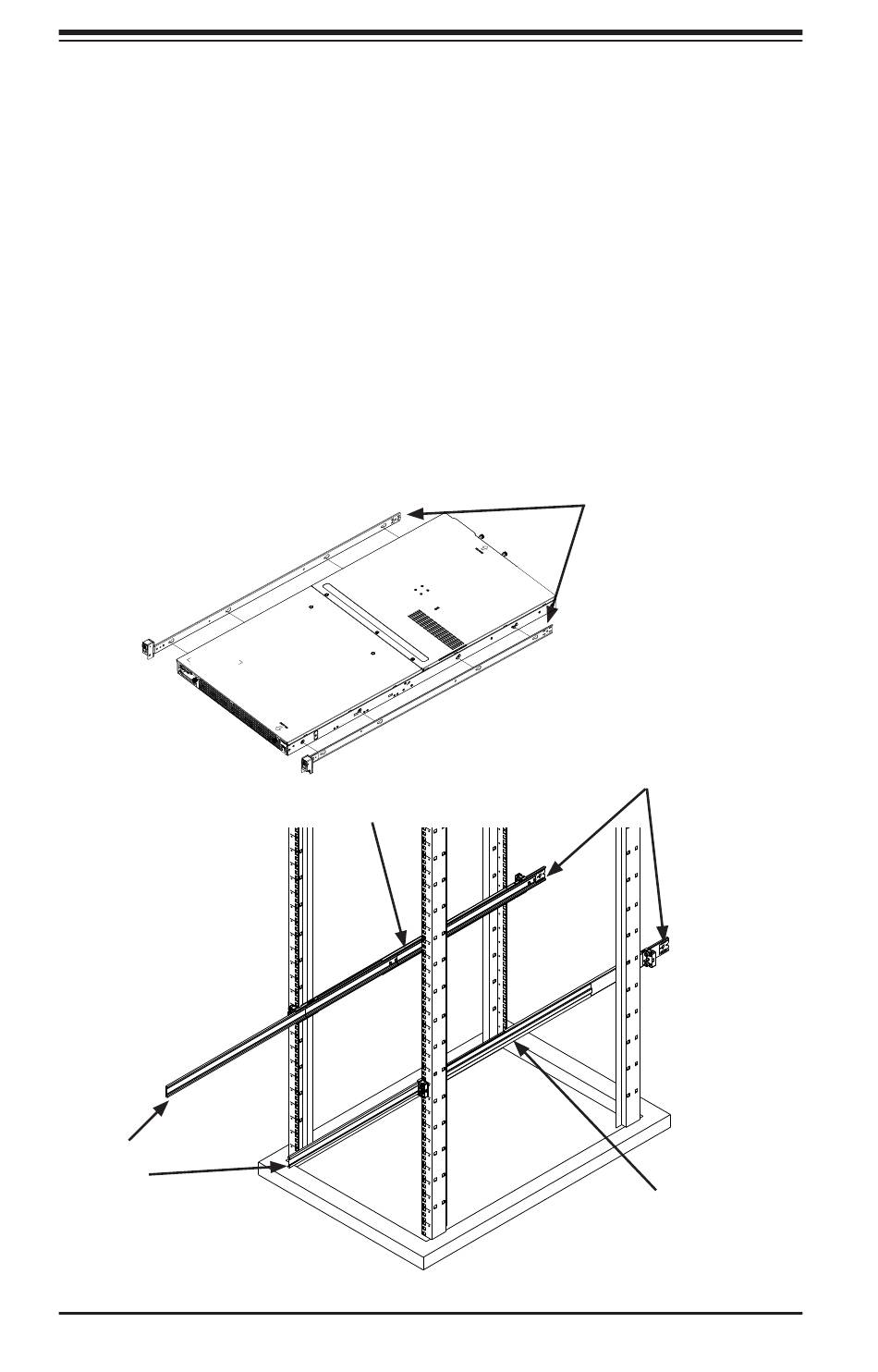

Figure 2-1. Identifying the Inner Rails, Middle Rails and Outer Rails
Left Outer
Rail
2-4
Inner Rails
Outer Rails,
Rear
Right Outer
Rail
