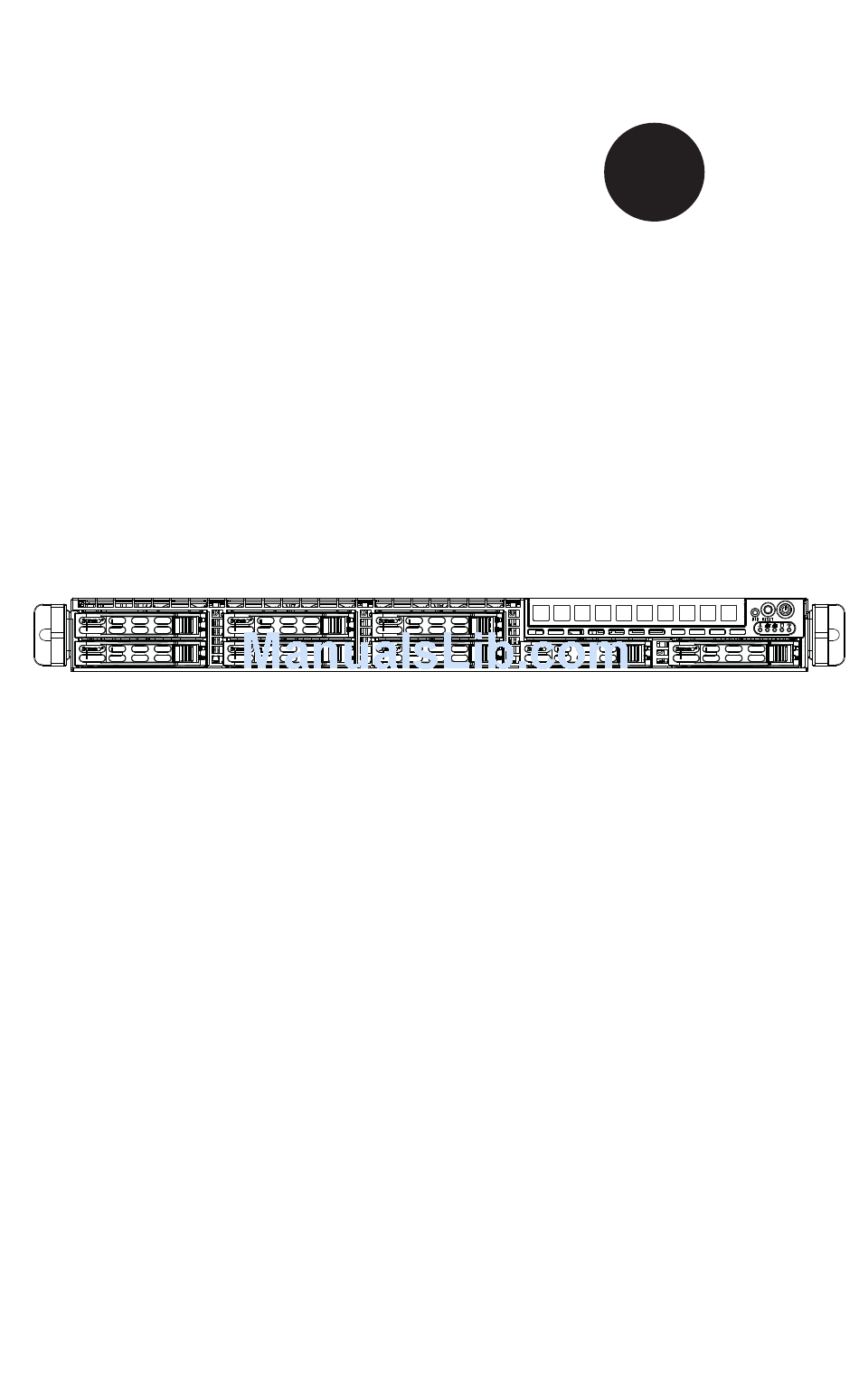

  • Page 1 UPER ® UPER ERVER 1027R-73DAF USER’S MANUAL...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Manual

    About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 1027R-73DAF. Installation and maintainance should be performed by experienced technicians only. The SuperServer 1027R-73DAF is a high-end server based on the SC113TQ-563CB 1U rackmountable chassis and the X9DRD-7LN4F dual processor serverboard.
  • Page 4 UPER ERVER 1027R-73DAF User's Manual Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X9DRD-7LN4F serverboard, in- cluding the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfi...
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER ERVER 1027R-73DAF User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 SAS ......................... 1-2 Serial ATA ......................1-2 PCI Expansion Slots ..................1-2 Rear I/O Ports ....................1-3 Server Chassis Features ................
  • Page 7 Table of Contents Power ......................3-1 UID ........................3-1 Control Panel LEDs ..................3-2 Information LED ....................3-2 NIC1 ........................ 3-3 NIC2 ........................ 3-3 HDD ......................... 3-3 Power ......................3-3 Hard Drive Carrier LEDs ................. 3-4 Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............
  • Page 8 UPER ERVER 1027R-73DAF User's Manual Memory Support ....................5-8 DIMM Installation .................... 5-8 Adding PCI Add-On Cards ................5-12 Serverboard Details ..................5-13 X9DRD-7LN4F Quick Reference ..............5-14 Connector Defi nitions ................... 5-16 Jumper Settings .................... 5-23 5-10 Onboard Indicators ..................5-25 5-11 SATA and SAS Ports ..................

  • Page 9: Chapter 1 Introduction

    One air shroud (MCP-310-19010-0N) • One riser card (RSC-RR1U-E8) • SATA Accessories One SATA backplane (BPN-SAS-113TQ) Eight drive carriers (MCP-220-00047-0B) • One rackmount kit (MCP-290-00043-0N) Note: a complete list of safety warnings is provided on the Supermicro web site at http://www.supermicro.com/about/policies/safety_information.cfm...

  • Page 10: Serverboard Features

    ERVER 1027R-73DAF User's Manual Serverboard Features At the heart of the SuperServer 1027R-73DAF lies the X9DRD-7LN4F, a dual processor serverboard based on the Intel C602J chipset and designed to provide maximum performance. Below are the main features of the X9DRD-7LN4F. (See Figure 1-1 for a block diagram of the chipset).

  • Page 11: Rear I/O Ports

    Chapter 6. The following is a general outline of the main features of the chassis. System Power The 1027R-73DAF features one 560W power supply. The system needs to be shut down when removing or replacing the power supply module. Control Panel The control panel provides important system monitoring and control information.

  • Page 12: System Block Diagram

    UPER ERVER 1027R-73DAF User's Manual Figure 1-1. Intel C602J Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. (AB) (AB) (CD) CPU REAR Socket 01 PROCESSOR SANDYBRIDGE CPU FRONT Socket 00 PROCESSOR...

  • Page 13: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 14 UPER ERVER 1027R-73DAF User's Manual Notes...

  • Page 15: Chapter 2 Server Installation

    Unpacking the System You should inspect the box the SuperServer 1027R-73DAF was shipped in and note if it was damaged in any way. If the server itself shows damage you should fi le a damage claim with the carrier who delivered it.

  • Page 16: Warnings And Precautions

    UPER ERVER 1027R-73DAF User's Manual • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units. Warnings and Precautions Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the fl...

  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 18: Installing The System Into A Rack

    ERVER 1027R-73DAF User's Manual Installing the System into a Rack This section provides information on installing the SuperServer 1027R-73DAF into a rack. If the system has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6. Note: This rail will fi t a rack between 26" and 33.5" deep.

  • Page 19: Inner Rails

    Chapter 2: Server Installation Inner Rails The SC113 chassis includes a set of inner rails in two sections: inner rails and inner rail extensions. The inner rails are pre-attached and do not interfere with normal use of the chassis if you decide not to use a server rack. Attach the inner rail extension to stabilize the chassis within the rack.

  • Page 20: Outer Rails

    UPER ERVER 1027R-73DAF User's Manual Outer Rails Installing the Outer Rails to the Rack (Figures 2-3 and 2-4) 1. Attach the short bracket to the outside of the long bracket. You must align the pins with the slides. Also, both bracket ends must face the same direction.
  • Page 21 Chapter 2: Server Installation SCALE 0.380 Figure 2-4. Installing the Outer Rails to the Rack...
  • Page 22 UPER ERVER 1027R-73DAF User's Manual Installing the Chassis into a Rack (Figure 2-5) 1. Confi rm that chassis includes the inner rails and rail extensions . Also, confi rm that the outer rails are installed on the rack. 2. Line chassis rails with the front of the rack rails.

  • Page 23: Installing The Server Into A Telco Rack

    Installing the Server into a Telco Rack To install the SuperServer 1027R-73DAF into a Telco type rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far follow the server will extend out the front of the rack.
  • Page 24 UPER ERVER 1027R-73DAF User's Manual Notes 2-10...

  • Page 25: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel to keep you constantly informed of the overall status of the system as well as the three buttons described below. Control Panel Buttons There are three buttons located on the front of the chassis: a reset button, a power on/off button and a UID button.

  • Page 26: Control Panel Leds

    UPER ERVER 1027R-73DAF User's Manual Control Panel LEDs The control panel located on the front of the SC113TQ chassis has fi ve LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 27: Nic1

    Chapter 3: System Interface NIC1 Indicates network activity on LAN2 when fl ashing. NIC2 Indicates network activity on LAN1 when fl ashing. Indicates DVD-ROM/hard drive activity when fl ashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.

  • Page 28: Hard Drive Carrier Leds

    UPER ERVER 1027R-73DAF User's Manual Hard Drive Carrier LEDs Each hard drive carrier has two LEDs. • Green: When illuminated, the green LED on the front of the drive carrier in- dicates drive activity. A connection to the SATA backplane enables this LED to blink on and off when that particular drive is being accessed.

  • Page 29: Chapter 4 Standardized Warning Statements For Ac Systems

    Only certifi ed technicians should attempt to install or confi gure components. Read this appendix in its entirety before installing or confi guring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Defi nition Warning! This warning symbol means danger.
  • Page 30 UPER ERVER 1027R-73DAF User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 31 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...

  • Page 32: Installation Instructions

    UPER ERVER 1027R-73DAF User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de...

  • Page 33: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 34: Power Disconnection Warning

    UPER ERVER 1027R-73DAF User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 35 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 36: Equipment Installation

    UPER ERVER 1027R-73DAF User's Manual Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi...

  • Page 37: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 38: Battery Handling

    UPER ERVER 1027R-73DAF User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬...
  • Page 39 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 40: Redundant Power Supplies

    UPER ERVER 1027R-73DAF User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 41: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 42: Comply With Local And National Electrical Codes

    UPER ERVER 1027R-73DAF User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫ﺍﻟﻠﻮﺣﺔ‬ ‫ﺃﻭﺍﻟﻄﺎﻗﺔ ﺍﻟﻤﻮﺟﻮﺩﺓ ﻋﻠﻰ‬ ‫ﺍﻟﺘﻴﺎﺭ ﺍﻟﻜﻬﺮﺑﺎﺋﻲ‬ ‫ﻣﻦ‬ ‫ﺧﻄﺮ‬ ‫ﻫﻨﺎﻙ‬ ‫ﻫﺬﺍ ﺍﻟﺠﻬﺎﺯ‬ ‫ﺧﺪﻣﺔ‬ ‫ﻛﻦ ﺣﺬﺭﺍ ﻋﻨﺪ‬ ‫ﻳﻌﻤﻞ‬ ‫ﺍﻟﻨﻈﺎﻡ‬ ‫ﻋﻨﺪﻣﺎ ﻳﻜﻮﻥ‬...

  • Page 43: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫ﺍﻟﻤﺘﻌﻠﻘﺔ‬ ‫ﺍﻟﻤﺤﻠﻴﺔ ﻭﺍﻟﻮﻁﻨﻴﺔ‬ ‫ﻘﻮﺍﻧﻴﻦ‬ ‫ﻳﺠﺐ ﺃﻥ ﻳﻤﺘﺜﻞ ﻟﻠ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬...

  • Page 44: Hot Swap Fan Warning

    UPER ERVER 1027R-73DAF User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 45 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 46: Power Cable And Ac Adapter

    fi re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certifi ed cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター...
  • Page 47 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifi és qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 48 UPER ERVER 1027R-73DAF User's Manual Notes 4-20...

  • Page 49: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference. Remember to completely close the chassis when you have fi...

  • Page 50: Connecting Cables

    UPER ERVER 1027R-73DAF User's Manual Connecting Cables Now that the serverboard is installed, the next step is to connect the cables to the board. These include the data cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed to prevent them from blocking the fl...

  • Page 51: Rear I/O Ports

    Chapter 5: Advanced Serverboard Setup Figure 5-1. Control Panel Header Pins Ground 3.3 V FP PWRLED ID_UID_SW/3/3V Stby HDD LED NIC1 Link LED NIC1 Activity LED NIC2 Activity LED NIC2 Link LED Blue+ (OH/Fan Fail/ Red+ (Blue LED Cathode) PWR FaiL/UID LED) Power Fail LED 3.3V Reset...

  • Page 52: Installing The Processor And Heatsink

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro web site for updates on CPU support. Installing an LGA 2011 Processor Press down on the lever labeled 'Close 1st' 1.
  • Page 53 Chapter 5: Advanced Serverboard Setup 3. With the lever labeled 'Close 1st' fully retracted, gently push down on the 'Open 1st' lever to open the load plate. Lift the load plate to open it completely. Gently push 4. Using your thumb and the index down to pop the load plate fi...
  • Page 54 UPER ERVER 1027R-73DAF User's Manual Caution: You can only install the CPU to the socket in one direction. Make sure that the CPU is properly inserted into the socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is aligned properly.

  • Page 55: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Serverboard Setup Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the serverboard and the heatsink bracket underneath.

  • Page 56: Installing Memory

    UPER ERVER 1027R-73DAF User's Manual Installing Memory Caution! Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X9DRD-7LN4F supports up to 512 GB of ECC registered (RDIMM), ECC Load Reduced (LRDIMM) or ECC/non-ECC unbuffered (UDIMM) DDR3- 1600/1333/1066/800 SDRAM in 16 DIMM sickets.
  • Page 57 Chapter 5: Advanced Serverboard Setup DIMM Module Population Table Follow the tables below when installing memory. Processors and their Corresponding Memory Modules CPU# Corresponding DIMM Modules CPU 1 DIMMA1 DIMMB1 DIMMC1 DIMMD1 DIMMA2 DIMMB2 DIMMC2 DIMMD2 CPU2 DIMME1 DIMMF1 DIMMG1 DIMMH1 DIMME2 DIMM F2...
  • Page 58 1333 1333 1333 Note: For detailed information on memory support and updates, please refer to the SMC Recommended Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. Populating RDIMM (ECC) Memory Modules Intel E5-2600 Series Processor RDIMM Memory Support Ranks Memory Capacity...

  • Page 59: Other Important Notes And Restrictions

    1333 Note: For detailed information on memory support and updates, please refer to the SMC Recommended Memory List posted on our website at http://www.supermicro. com/support/resources/mem.cfm. Other Important Notes and Restrictions • For the memory modules to work properly, please install DIMM modules of the same type, same speed and same operating frequency.

  • Page 60: Adding Pci Add-On Cards

    UPER ERVER 1027R-73DAF User's Manual Adding PCI Add-On Cards The 1027R-73DAF can accommodate one standard-size PCI-E 3.0 x8 add-on (expansion) cards. Installing an Add-on Card 1. Begin by removing the shield where the riser card is located. 2. Fully seat the card into the slot on the riser, pushing down with your thumbs evenly on both sides of the card.

  • Page 61: Serverboard Details

    Chapter 5: Advanced Serverboard Setup Serverboard Details Figure 5-4. X9DRD-7LN4F Layout VGA1 LAN2/4 LAN1/3 USB2/3 USB0/1 JUIDB COM2 COM1 JPW4 CTRL IPMI_LAN FAN8 FAN7 CPU2 CPU2 JBAT1 JBT1 Battery CMOS CLEAR Intel JUSB6 BIOS X9DRD-7(J)LN4F Rev. 1.01 JPW3 CPU1 CPU2 LSI SAS CTRL L-SAS4~7 L-SAS0~3...

  • Page 62: X9Drd-7Ln4F Quick Reference

    UPER ERVER 1027R-73DAF User's Manual X9DRD-7LN4F Quick Reference Jumper Description Default Setting JBT1 Clear CMOS See Section 5-9 C1/JI SMB to PCI-E Slots Off (Disabled) JPB1 BMC Enable/Disable Pins 1-2 (Enabled) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPL1 GLAN1/GLAN2 Enable/Disable...
  • Page 63 Chapter 5: Advanced Serverboard Setup Slots 1/2/6 (CPU1), PCI-Express 3.0 x8 Slots Slots 3/4/5 (CPU2) (T-)SGPIO 1/2 SATA General Purpose I/O Header (BP) USB 0/1, 2/3 Back Panel USB 0/1, 2/3 (FP) USB 4/5, USB 8/9 Front Panel Accessible USB Connections (4/5, 8/9) (FP) USB 6 Type A USB Embedded Drive Connector Backpanel VGA Port...

  • Page 64: Connector Defi Nitions

    UPER ERVER 1027R-73DAF User's Manual Connector Defi nitions Power Connectors ATX Power 24-pin Connector Pin Defi nitions A 24-pin main power supply connector Pin# Defi nition Pin # Defi nition (JPW1), two 8-pin CPU power con- +3.3V +3.3V nectors (JPW2/3) must be connected -12V +3.3V...
  • Page 65 Chapter 5: Advanced Serverboard Setup Power Fail LED PWR Fail LED Pin Defi nitions (JF1) The Power Fail LED connection is Pin# Defi nition located on pins 5 and 6 of JF1. See p. 5-4 and the table on the right for Ground pin defi...
  • Page 66 UPER ERVER 1027R-73DAF User's Manual Power On LED The Power On LED connector is lo- Power LED cated on pins 15 and 16 of JF1 (use Pin Defi nitions (JF1) JLED for a 3-pin connector). This Pin# Defi nition connection is used to provide LED...
  • Page 67 Chapter 5: Advanced Serverboard Setup LAN Ports Pin Defi nition Pin# Defi nition P2V5SB SGND Ethernet Ports TD0+ Act LED Four Ethernet ports are located on the TD0- P3V3SB I/O backplane. A dedicated IPMI LAN TD1+ Link 100 LED (Yel- low, +3V3SB) port is also included to provide KVM TD1-...
  • Page 68 UPER ERVER 1027R-73DAF User's Manual Internal Buzzer (SP1) Pin Defi nition Pin# Defi nitions Pin 1 Pos. (+) Beep In Internal Speaker Pin 2 Neg. (-) Alarm The internal speaker, located at SP1, Speaker can be used to provide audible indica- tions for various beep codes.
  • Page 69 Chapter 5: Advanced Serverboard Setup TPM/Port 80 Header Pin Defi nitions Pin # Defi nition Pin # Defi nition TPM Header/Port 80 LCLK A Trusted Platform Module/Port 80 LFRAME# <(KEY)> header is located at JTPM1 to provide LRESET# +5V (X) TPM support and a Port 80 connec- LAD 3 LAD 2...
  • Page 70 UPER ERVER 1027R-73DAF User's Manual Standby Power Header Standby PWR Pin Defi nitions The +5V Standby Power header is lo- Pin# Defi nition cated at JSTBY1. See the table on the +5V Standby right for pin defi nitions. (You must also...

  • Page 71: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used Connector to choose between optional settings. Pins Jumpers create shorts between two pins to change the function of the con- nector.
  • Page 72 UPER ERVER 1027R-73DAF User's Manual LAN Enable/Disable LAN Enable/Disable Jumper Settings JPL1 enables or disables the LAN Jumper Setting Defi nition ports 1/2 and 3/4. See the table on the Enabled right for jumper settings. The default Disabled setting is Enabled.

  • Page 73: 5-10 Onboard Indicators

    Chapter 5: Advanced Serverboard Setup 5-10 Onboard Indicators Link LED Activity LED LAN LEDs The Ethernet ports (located beside the Link LED Activity LED VGA port) have two LEDs. On each port, the yellow LED fl ashes to indi- LAN1/2 LED (Connection Speed Indicator) cate activity while the other LED may be green, amber or off to indicate the...

  • Page 74: 5-11 Sata And Sas Ports

    UPER ERVER 1027R-73DAF User's Manual Unit Identifi cation Switch/LED A Unit Identifi er switch (UID) and a rear UID LED indicator (LED3) are located next to LAN ports on the back UID LED Status of the chassis. When the user pushes...

  • Page 75: 5-12 Installing Software

    5-12 Installing Software After the hardware has been installed, you should fi rst install the operating system and then the drivers. The necessary drivers are all included on the Supermicro CDs that came packaged with your serverboard. Driver/Tool Installation Display Screen Note: Click the icons showing a hand writing on paper to view the readme fi...
  • Page 76 UPER ERVER 1027R-73DAF User's Manual SuperDoctor III ® The SuperDoctor III program is a Web base management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program included on the CD-ROM that came with your serverboard allows you to monitor the environment and operations of your system.

  • Page 77: Superdoctor Iii

    Chapter 5: Advanced Serverboard Setup Supero Doctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User's Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/software/ SuperDoctorIII.cfm. For Linux, we recommend using SuperDoctor II. 5-29...

  • Page 78: 5-13 Onboard Battery

    UPER ERVER 1027R-73DAF User's Manual 5-13 Onboard Battery Care must be taken to assure that the chassis cover is in place when the 1027R- 73DAF is operating to assure proper cooling. Out of warranty damage to the system can occur if this practice is not strictly followed.

  • Page 79: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC113 chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the next step.

  • Page 80: Control Panel

    Fan speed is controlled by system temperature via IPMI. If a fan fails, the remaining fans will ramp up to full speed. Replace any failed fan at your earliest convenience with the same type and model (the system can continue to run with a failed fan). The 1027R-73DAF system includes six pre-installed fans.
  • Page 81 Chapter 6: Advanced Chassis Setup Replacing a System Fan (Figure 6-2) 1. Open the chassis while the system is running to determine which fan has failed. Never run the server for an extended period of time with the chassis open. 2.

  • Page 82: Drive Bay Installation/Removal

    Proceed to the "DVD-ROM Drive Installation" section later in this chapter for instructions. Note: Only a "slim" DVD-ROM drive will fi t into the 1027R-73DAF. Hard Drive Installation The hard drives are mounted in drive carriers to simplify their installation and removal from the chassis.
  • Page 83 Chapter 6: Advanced Chassis Setup 2. Align the drive in the carrier so that the screw holes of both line up. Note that there are holes in the carrier marked “SATA” to aid in correct installation. 3. Secure the drive to the carrier with four screws as illustrated below. 4.

  • Page 84: Dvd Drive Installation

    UPER ERVER 1027R-73DAF Manual Figure 6-4. Removing a Hard Drive DVD Drive Installation The SC113 chassis includes a pre-installed DVD-ROM. Installing or Replacing a DVD-ROM Drive (Figure 6-5) 1. Power down the system and if necessary, remove the server from the rack and the front bezel from the chassis.
  • Page 85 Chapter 6: Advanced Chassis Setup 5. Insert the new drive unit in the slot until the tab locks in place. 6. Reconnect the data and power cables. 7. Replace the chassis cover (replace the server in the rack, if necessary) and power up the system.

  • Page 86: Power Supply

    The SuperServer 1027R-73DAF has a single 560W power supply. If the power supply module fails, the system will shut down and you will need to replace the module. Replacements can be ordered directly from Supermicro (see contact information in the Preface).

  • Page 87: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS Setup utility for the X9DRD-7JLN4F/X9DRD- 7LN4F It also provides the instructions on how to navigate the AMI BIOS Setup utility screens. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated.

  • Page 88: How To Change The Confi Guration Data

    UPER ERVER 1027R-73DAF User's Manual How To Change the Confi guration Data The confi guration data that determines the system parameters may be changed by entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing <Delete> at the appropriate time during system boot.
  • Page 89 Day MM/DD/YY format. The time is entered in HH:MM:SS format. (Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.). Supermicro X9DRD-7LN4F Version This item displays the SMC version of the BIOS ROM used in this system.

  • Page 90: Advanced Setup Confi Gurations

    UPER ERVER 1027R-73DAF User's Manual Advanced Setup Confi gurations Select the Advanced tab to access the following submenu items. Boot Feature Quiet Boot This feature allows the user to select bootup screen display between POST mes- sages and the OEM logo. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages.
  • Page 91 Chapter 7: BIOS at bootup and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Disabled, the ROM BIOS of the host adap- tors will not capture Interrupt 19, and the drives attached to these adaptors will not function as bootable devices.
  • Page 92 UPER ERVER 1027R-73DAF User's Manual • Processor Cores • Intel HT (Hyper-Threading) Technology • Intel VT-x Technology • Intel SMX Technology • L1 Data Cache / L1 Code Cache • L2 Cache • L3 Cache CPU Speed This item displays the speed of the CPU installed in Socket 1/Socket 2.
  • Page 93 Chapter 7: BIOS Execute-Disable Bit (Available if supported by the OS & the CPU) Select Enabled to enable the Execute Disable Bit which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from fl...
  • Page 94 UPER ERVER 1027R-73DAF User's Manual CPU Power Management Confi guration This submenu allows the user to confi gure the following CPU Power Manage- ment settings. Power Technology Select Energy Effi ciency to support power-saving mode. Select Custom to cus- tomize system power settings. Select Disabled to disable power-saving settings.
  • Page 95 Chapter 7: BIOS Package C-State limit (Available when Power Technology is set to Custom) This feature allows the user to set the limit on the C-State package register. The options are C0, C2, C6, and No Limit. Energy/Performance Bias Use this feature to select an appropriate fan setting to achieve maximum system performance (with maximum cooling) or maximum energy effi...

  • Page 96: North Bridge

    UPER ERVER 1027R-73DAF User's Manual Chipset Confi guration North Bridge This feature allows the user to confi gure the settings for the Intel North Bridge. Integrated IO Confi guration ® Intel VT-d Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to the VMM (Virtual Machine Monitor) through the DMAR ACPI Tables.
  • Page 97 Chapter 7: BIOS IIO 2 PCIe Port Bifurcation Control This submenu confi gures the following IO PCIe Port Bifurcation Control settings for IIO 2 PCIe ports to determine how the available PCI-Express lanes to be distributed between the PCI-Exp. Root ports. QPI Confi...
  • Page 98 UPER ERVER 1027R-73DAF User's Manual DIMM Information CPU Socket 1 DIMM Information, CPU Socket 2 DIMM Information The status of the memory modules detected by the BIOS will be displayed as detected by the BIOS. Memory Mode When Independent is selected, all DIMMs are available to the operating system.
  • Page 99 Chapter 7: BIOS correctable error, the error is corrected and sent to the requestor (the original source). Memory is updated as well. Select Enabled to use Demand Scrubbing for ECC memory correction. The options are Enabled and Disabled. Data Scrambling Select Enabled to enable data scrambling to ensure data security and integrity.
  • Page 100 UPER ERVER 1027R-73DAF User's Manual Port 60/64 Emulation Select Enabled to enable I/O port 60h/64h emulation support for the legacy USB keyboard so that it can be fully supported by the operating systems that does not recognize a USB device. The options are Disabled and Enabled.
  • Page 101 Chapter 7: BIOS Port 0~5 Hot Plug Select Enabled to enable hot-plug support for a particular port, which will allow the user to change a hardware component or device without shutting down the system. The options are Enabled and Disabled. Staggered Spin Up Select Enabled to enable Staggered Spin-up support to prevent excessive power consumption caused by multiple HDDs spinning-up simultaneously.
  • Page 102 UPER ERVER 1027R-73DAF User's Manual SERR# Generation Select Enabled to allow a PCI device to generate an SERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled. Maximum Payload Select Auto to allow the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance.
  • Page 103 Chapter 7: BIOS VGA Priority This feature allows the user to select the graphics adapter to be used as the primary boot device. The options are Onboard, and Offboard. Network Stack Select Enabled enable PXE (Preboot Execution Environment) or UEFI (Unifi ed Extensible Firmware Interface) for network stack support.

  • Page 104: Serial Port Console Redirection

    UPER ERVER 1027R-73DAF User's Manual Change Settings This option specifi es the base I/O port address and the Interrupt Request address of Serial Port 2. Select Disabled to prevent the serial port from accessing any system resources. When this option is set to Disabled, the serial port becomes unavailable.
  • Page 105 Chapter 7: BIOS client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second). Data Bits Use this feature to set the data transmission size for Console Redirection. The options are 7 Bits and 8 Bits.
  • Page 106 UPER ERVER 1027R-73DAF User's Manual Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400. Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) The submenu allows the user to confi...

  • Page 107: Acpi Settings

    Chapter 7: BIOS Data Bits, Parity, Stop Bits The status of these features is displayed. ACPI Settings Use this feature to confi gure Advanced Confi guration and Power Interface (ACPI) power management settings for your system. ACPI Sleep State Use this feature to select the ACPI State when the system is in sleep mode. Select S1 (CPU_Stop_Clock) to erase all CPU caches and stop executing instructions.
  • Page 108 UPER ERVER 1027R-73DAF User's Manual Pending Operation Use this item to schedule an operation for the security device. The options are None, Enable Take Ownership, Disable Take Ownership, and TPM Clear. Note: During restart, the computer will reboot in order to execute the pend- ing operation and change the state of the security device.
  • Page 109 Chapter 7: BIOS TPM Support: Trusted Platform support TPM State: Trusted Platform state ME Subsystem This feature displays the following ME Subsystem Confi guration settings. • ME BIOS Interface Version • ME Version iSCSI Confi guration: This item displays iSCSI confi guration information: iSCSI Initiator Name This item displays the name of the iSCSI Initiator, which is a unique name used in the world.
  • Page 110 UPER ERVER 1027R-73DAF User's Manual Blink LEDs This feature allows the user to specify the duration for LEDs to blink. The range is from 0 ~ 15 seconds. The default setting is 0. PORT CONFIGURATION INFORMATION This section displays the following port information: •...

  • Page 111: Event Logs

    Chapter 7: BIOS Event Logs Select the Event Logs tab to access the following submenu items. Change SMBIOS Event Log Settings This feature allows the user to confi gure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 112 UPER ERVER 1027R-73DAF User's Manual Erasing Settings Erase Event Log Select Enabled to erase the SMBIOS (System Management BIOS) Event Log, which is completed before a event logging is initialized upon system reboot. The options are No, Yes, Next reset, and Yes, Every reset.

  • Page 113: Ipmi

    Chapter 7: BIOS IPMI Select the IPMI (Intelligent Platform Management Interface) tab to access the fol- lowing submenu items. IPMI Firmware Revision This item indicates the IPMI fi rmware revision used in your system. IPMI Status This item indicates the status of the IPMI fi rmware installed in your system. System Event Log Enabling/Disabling Options SEL Components...
  • Page 114 UPER ERVER 1027R-73DAF User's Manual When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.

  • Page 115: Boot

    Chapter 7: BIOS Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253). Boot This submenu allows the user to confi gure the following boot settings for the system.

  • Page 116: Security

    UPER ERVER 1027R-73DAF User's Manual Security This menu allows the user to confi gure the following security settings for the system. Password Check Use this feature to determine when a password entry is required. Select Setup to require the password only when entering setup. Select Always to require the pass- word when entering setup and on each boot.

  • Page 117: Save & Exit

    Chapter 7: BIOS Save & Exit This submenu allows the user to confi gure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system confi guration, and reboot the computer. Select Discard Changes and Exit, and press <Enter>.
  • Page 118 UPER ERVER 1027R-73DAF User's Manual Discard Changes Select this feature and press <Enter> to discard all the changes and return to the BIOS setup. When the dialog box appears, asking you if you want to load previ- ous values, select Yes to load the values previous saved, or select No to keep the changes you've made so far.

  • Page 119: Appendix A Bios Error Beep Codes

    Appendix A: BIOS POST Error Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed at each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 120 UPER ERVER 1027R-73DAF User's Manual Notes...

  • Page 121: Appendix B System Specifi Cations

    Appendix B: System Specifi cations Appendix B System Specifi cations Processors Single or dual Intel® Xeon E5-2600 Series processors Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel C602J chipset BIOS 128 Mb AMI® SPI Flash ROM Memory Capacity Sixteen DIMM sockets supporting up to 512 GB of RDIMM, ECC LRDIMM or ECC/non-ECC UDIMM DDR3-1600/1333/1066/800 type memory...
  • Page 122 UPER ERVER 1027R-73DAF User's Manual System Cooling Six 4-cm counter-rotating fans System Input Requirements AC Input Voltage: 100V - 240V AC Rated Input Current: 7.5A max Rated Input Frequency: 50 to 60 Hz Power Supply Rated Output Power: 560W (Part# PWS-563-1H) Rated Output Voltages: +3.3V (15A), +5V (18A), +12V ( 46A @ 100V-180V, 49A...
  • Page 123 Appendix B: System Specifi cations Notes...
  • Page 124 ERVER 1027R-73DAF User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...

Table of Contents
