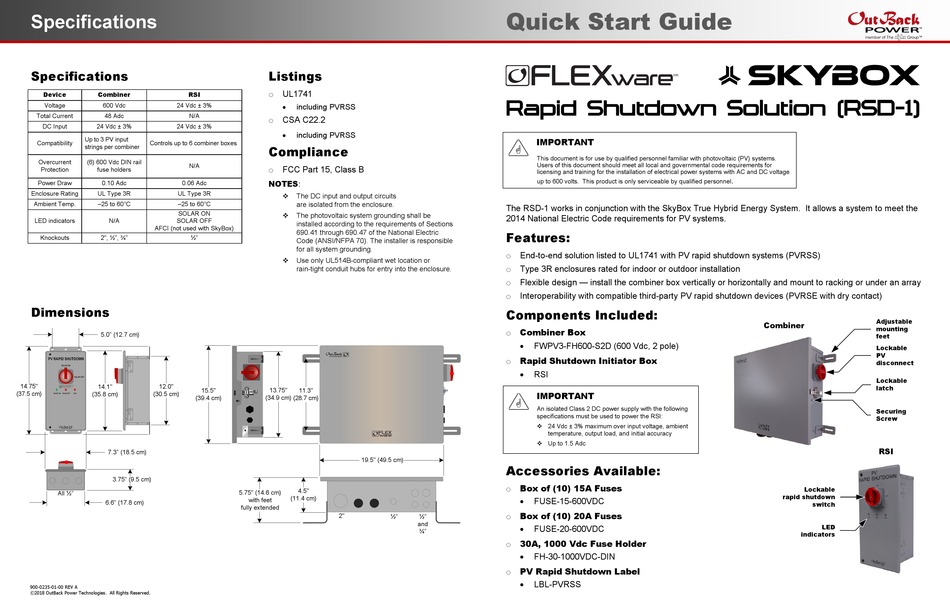

OutBack Power FLEXware SKYBOX RSD-1 Quick Start Manual

Specifications
Specifications
Device Combiner RSI
Voltage 600 Vdc 24 Vdc ± 3%
Total Current 48 Adc N/A
DC Input 24 Vdc ± 3% 24 Vdc ± 3%
Up to 3 PV input
Compatibility Controls up to 6 combiner boxes
strings per combiner
Overcurrent (6) 600 Vdc DIN rail
N/A
Protection fuse holders
Power Draw 0.10 Adc 0.06 Adc
Enclosure Rating UL Type 3R UL Type 3R
Ambient Temp. –25 to 60°C –25 to 60°C
SOLAR ON
LED indicators N/A SOLAR OFF
AFCI (not used with SkyBox)
Knockouts 2", ½", ¾" ½"
Dimensions
5.0" (12.7 cm)
14.75" 12.0"
14.1"
(37.5 cm) (35.8 cm) (30.5 cm)
(39.4 cm)
7.3" (18.5 cm)
3.75" (9.5 cm)
All ½"
6.6" (17.8 cm)
900-0235-01-00 REV A
©2018 OutBack Power Technologies. All Rights Reserved.
Listings
o UL1741

including PVRSS
o CSA C22.2
 including PVRSS
Compliance
o FCC Part 15, Class B
NOTES:
 The DC input and output circuits
are isolated from the enclosure.
 The photovoltaic system grounding shall be
installed according to the requirements of Sections
690.41 through 690.47 of the National Electric
Code (ANSI/NFPA 70). The installer is responsible
for all system grounding.
 Use only UL514B-compliant wet location or
rain-tight conduit hubs for entry into the enclosure.
PV DISCONNECT
15.5" 13.75" 11.3"
(34.9 cm) (28.7 cm)
19.5" (49.5 cm)
4.5"
5.75" (14.6 cm)
(11.4 cm)
with feet
fully extended
2"
Quick Start Guide
Rapid Shutdown Solution (RSD-1)
IMPORTANT
This document is for use by qualified personnel familiar with photovoltaic (PV) systems.
Users of this document should meet all local and governmental code requirements for
licensing and training for the installation of electrical power systems with AC and DC voltage
up to 600 volts. This product is only serviceable by qualified personnel
The RSD-1 works in conjunction with the SkyBox True Hybrid Energy System. It allows a system to meet the
2014 National Electric Code requirements for PV systems.
Features:
o End-to-end solution listed to UL1741 with PV rapid shutdown systems (PVRSS)
o Type 3R enclosures rated for indoor or outdoor installation
o Flexible design — install the combiner box vertically or horizontally and mount to racking or under an array
o Interoperability with compatible third-party PV rapid shutdown devices (PVRSE with dry contact)
Components Included:
o Combiner Box
 FWPV3-FH600-S2D (600 Vdc, 2 pole)
o Rapid Shutdown Initiator Box
 RSI
IMPORTANT
An isolated Class 2 DC power supply with the following
specifications must be used to power the RSI:
24 Vdc ± 3% maximum over input voltage, ambient
temperature, output load, and initial accuracy
Up to 1.5 Adc
Accessories Available:
o Box of (10) 15A Fuses
 FUSE-15-600VDC
o Box of (10) 20A Fuses
½" ½"
and
 FUSE-20-600VDC
¾"
o 30A, 1000 Vdc Fuse Holder
 FH-30-1000VDC-DIN
o PV Rapid Shutdown Label
 LBL-PVRSS
.

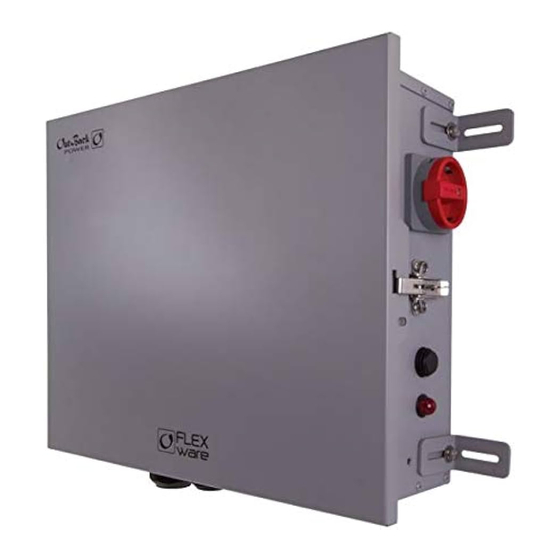

Adjustable
Combiner
mounting
feet
Lockable
PV
disconnect
Lockable
latch
Securing
Screw
RSI
Lockable
rapid shutdown
switch
LED
indicators
