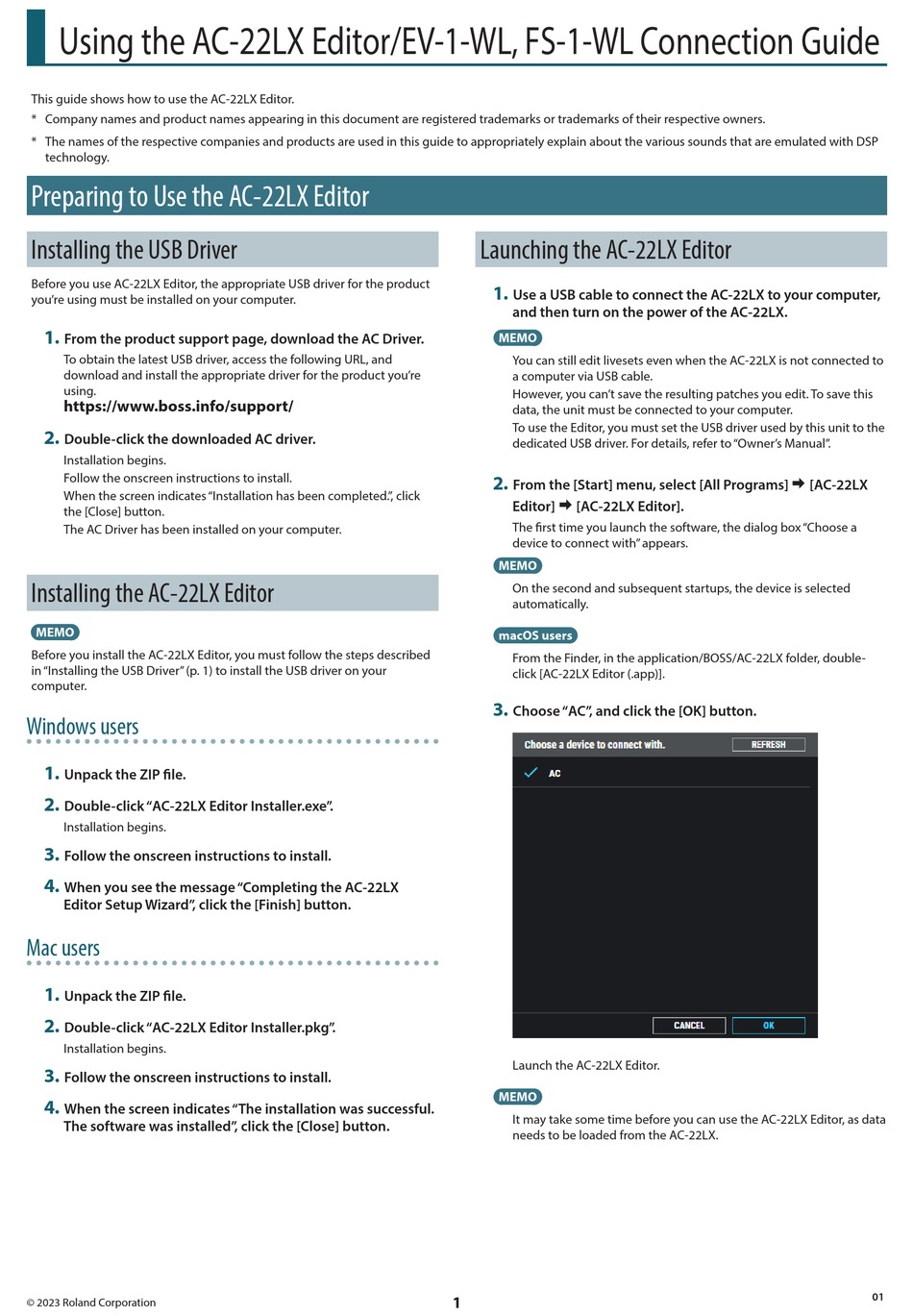

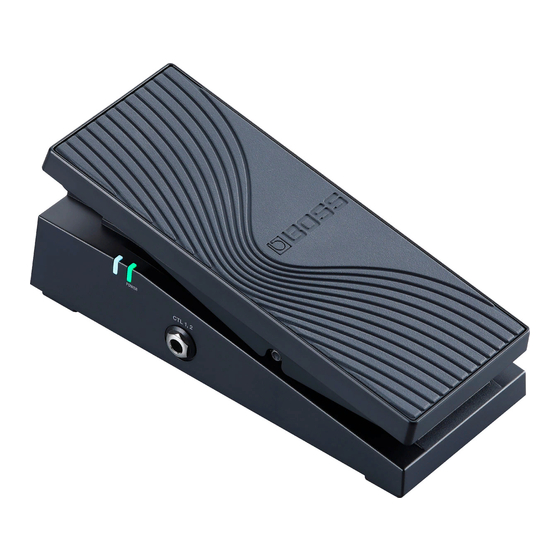

Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide
This guide shows how to use the AC-22LX Editor.
* Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.
* The names of the respective companies and products are used in this guide to appropriately explain about the various sounds that are emulated with DSP
technology.
Preparing to Use the AC-22LX Editor
Installing the USB Driver
Before you use AC-22LX Editor, the appropriate USB driver for the product
you're using must be installed on your computer.
1.
From the product support page, download the AC Driver.
To obtain the latest USB driver, access the following URL, and
download and install the appropriate driver for the product you're
using.
https://www.boss.info/support/
2.
Double-click the downloaded AC driver.
Installation begins.
Follow the onscreen instructions to install.
When the screen indicates "Installation has been completed. " , click
the [Close] button.
The AC Driver has been installed on your computer.
Installing the AC-22LX Editor
MEMO
Before you install the AC-22LX Editor, you must follow the steps described
in "Installing the USB Driver" (p. 1) to install the USB driver on your
computer.
Windows users
1.
Unpack the ZIP file.
2.
Double-click "AC-22LX Editor Installer.exe".
Installation begins.
3.
Follow the onscreen instructions to install.
4.
When you see the message "Completing the AC-22LX
Editor Setup Wizard", click the [Finish] button.
Mac users
1.
Unpack the ZIP file.
2.
Double-click "AC-22LX Editor Installer.pkg".
Installation begins.
3.
Follow the onscreen instructions to install.
4.
When the screen indicates "The installation was successful.
The software was installed", click the [Close] button.
© 2023 Roland Corporation
Launching the AC-22LX Editor
1.
Use a USB cable to connect the AC-22LX to your computer,
and then turn on the power of the AC-22LX.
MEMO
You can still edit livesets even when the AC-22LX is not connected to
a computer via USB cable.
However, you can't save the resulting patches you edit. To save this
data, the unit must be connected to your computer.
To use the Editor, you must set the USB driver used by this unit to the
dedicated USB driver. For details, refer to "Owner's Manual".
2.
From the [Start] menu, select [All Programs]
Ø
Editor]
[AC-22LX Editor].
The first time you launch the software, the dialog box "Choose a
device to connect with" appears.
MEMO
On the second and subsequent startups, the device is selected
automatically.
macOS users
From the Finder, in the application/BOSS/AC-22LX folder, double-
click [AC-22LX Editor (.app)].
3.
Choose "AC", and click the [OK] button.
Launch the AC-22LX Editor.
MEMO
It may take some time before you can use the AC-22LX Editor, as data
needs to be loaded from the AC-22LX.
1
Ø
[AC-22LX
01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV-1-WL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roland EV-1-WL

Summary of Contents for Roland EV-1-WL

  • Page 1 Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide This guide shows how to use the AC-22LX Editor. * Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners. * The names of the respective companies and products are used in this guide to appropriately explain about the various sounds that are emulated with DSP technology.
  • Page 2 Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide EDITOR Basic Screen Patch select area Here you can select the PANEL patch as well as 15 other patches by combining the AIR FEEL knob setting on the AC-22LX with the MEMORY button colors (green, red, orange).

  • Page 3: Editing A Patch

    Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide Editing a Patch Saving Your Edited Settings (WRITE) Here’s how to save the settings you’ve edited. At the top of AC-22LX Editor screen, click the [EDITOR] button. In the upper right of the AC-22LX Editor screen, click the Click the patch that you want to edit.
  • Page 4 Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide Click [WRITE]. Using the Rhythm Box The patch you edited is saved in the specified destination. MEMO To discard your edited settings, click the [CLEAR] button in the top right-hand part of the screen.
  • Page 5 Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide Reference Variation button Reference Variation button Pattern Pattern tempo default setting tempo default setting SHAKER 1 : 8beat Green DRUMS 19 : 16beat SHAKER 2 : 8beat DRUMS 20 : 16beat SHAKER 3 : 8beat...
  • Page 6 Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide LIBRARIAN Basic Screen [CREATE LIVESET] button Press this button to create a new empty liveset. Liveset name Shows the name of the liveset and the number of patches. Liveset name edit button Click this to edit the name of the liveset. You can click the trash can symbol to delete the liveset.
  • Page 7 Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide Click the [OK] button. Importing All User Patches into the The patches are saved as a liveset in the LIBRARIAN. LIBRARIAN (IMPORT FROM AC-22LX) Here’s how you can import all of the AC-22LX’s user patches into the LIBRARIAN.
  • Page 8 Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide Restoring a Patch to the AC-22LX Saving a Liveset to a Computer (EXPORT TO FILE) Here’s how to select a patch from a liveset that you saved, and restore it back to the AC-22LX.

  • Page 9: Copying Patches

    Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide Copying Patches Creating an Original Liveset Here’s how to copy a patch to another liveset or to an AC-22LX patch. You can collect your favorite patches to create an original liveset. Click the patch that you want to copy.
  • Page 10 Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide Selecting multiple patches The difference between operations when selecting and copying multiple patches By using your computer’s mouse and keyboard together, you can select multiple patches. When you drag and drop the selected patches, the copy result will Selecting a range of patches differ depending on your mouse operation.

  • Page 11: Deleting Patches

    Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide Moving Patches Editing a Liveset Name Here’s how to move a patch to another liveset or to an AC-22LX patch. Click the [ ] button to the right of the name of the liveset When you move a patch, it disappears from its previous location.

  • Page 12: Using The Tuner

    Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide Deleting a Liveset Selecting the Device Controlled by AC-22LX Editor Here’s how to delete a liveset that you no longer need. Here’s how to select the device controlled by the AC-22LX Editor. Click the [ ] button to the right of the name of the liveset that you want to delete.
  • Page 13 MIDI expression pedal (sold separately). LINE OUT LINE OUT OUT LEVEL level sent to LINE OUT. See “EV-1-WL Connection Guide” (p. 16) for how to connect the EV-1-WL Adjusts the output wireless MIDI expression pedal. TO USB OUT/LINE level of the rhythm RHYTHM BOX RHYTHM BOX See “FS-1-WL Connection Guide”...

  • Page 14: Usb Setting

    Using the AC-22LX Editor/EV-1-WL, FS-1-WL Connection Guide USB SETTING You can set the USB audio volume used when your computer is connected to the AC-22LX. Position Parameter Explanation Adjusts the level of input just before MIX (Windows) MIX LEVEL the signal from the computer reaches OUTPUT1/2 (Mac) MASTER.

  • Page 15: Foot Volume

    LEVEL 0–100 Sets the volume. (doubling effect). Adjusts the volume of the chorus sound in HIGH LEVEL 0–100 * Use the EV-1-WL (sold separately) to control the LEVEL. the high-frequency range.
  • Page 16 This guide explains how you can use BLE MIDI to wirelessly pair (connect) the EV-1-WL and AC-22LX. * The Bluetooth Audio MIDI Dual Adaptor (Model: BT-DUAL, sold separately) is needed when wirelessly pairing the EV-1-WL with the AC-22LX. See the Owner’s Manual for how to attach the adaptor.
  • Page 17 CTL 1 CTL 2 CTL 1 CTL 1 Configure the parameters to be controlled by the EV-1-WL. CTL1 SW, CTL2 SW These are the settings for operating the footswitch (FS-5U, FS-6 or FS-7, sold separately) connected to the EV-1-WL. Value...
  • Page 18 FS-1-WL Connection Guide This explains how to use BLE MIDI to pair (connect) the FS-1-WL to the AC-22LX over a wireless connection. * The Bluetooth Audio MIDI Dual Adaptor (Model: BT-DUAL, sold separately) is needed when wirelessly pairing the FS-1-WL with the AC-22LX. See the Owner’s Manual for how to attach the adaptor.
  • Page 19 FS-1-WL Connection Guide Connection of CTL1, 2 terminals Setting the Parameters to Control via the Pin assignment CTL 1, 2 jack FS-1-WL Access the WIRELESS PEDAL SETTING screen from the AC-22LX Editor’s SYSTEM. FS-6 FS-5U x 2 FS-5U x 1 FS-7 Stereo 1/4”...
