Hardware Overview

Hardware Overview
This page provides an overview of the PURE DRIVE OCTO hardware. The tutorial section covers each control in more detail.

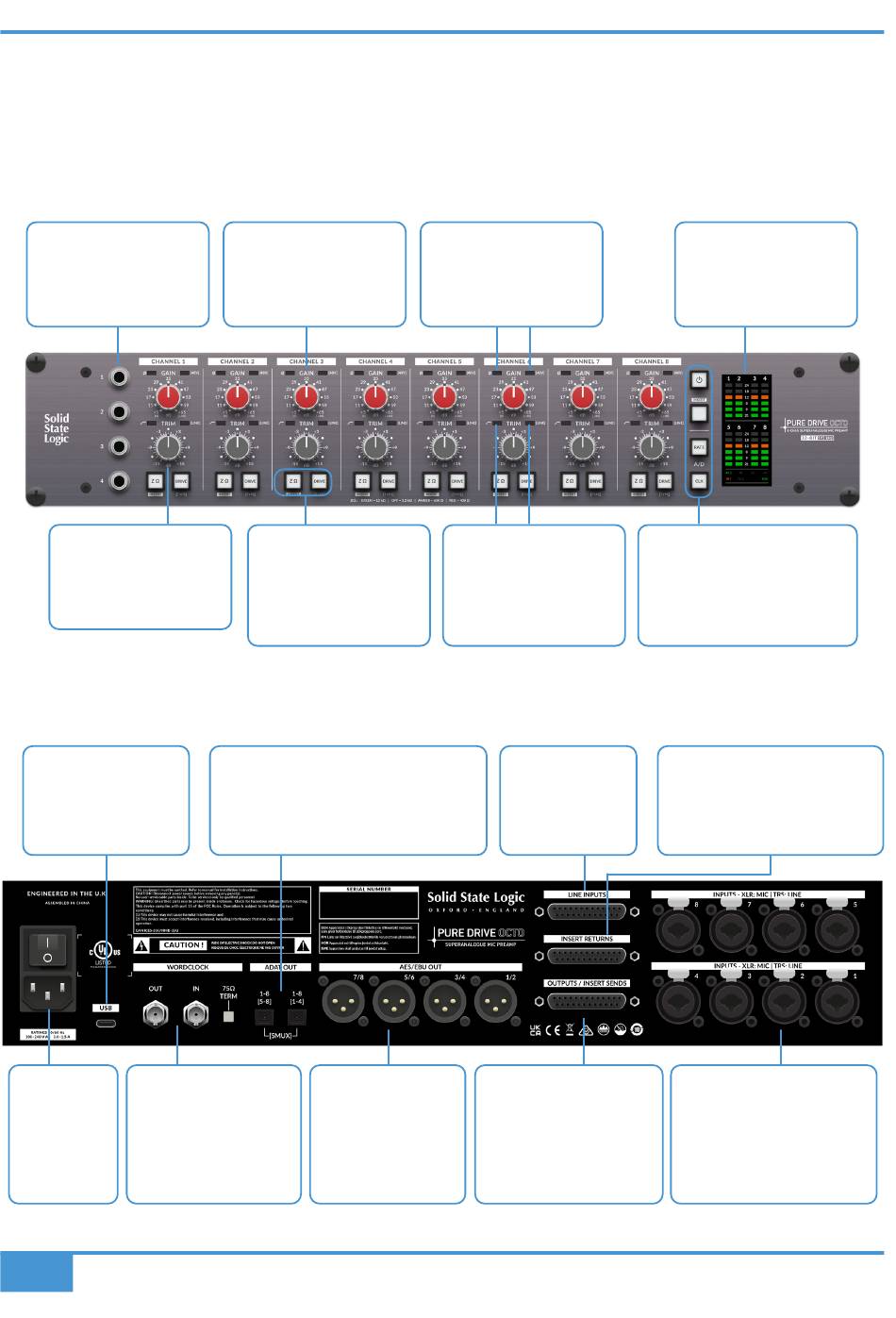

Front Panel

4 x HI-Z/DI INSTRUMENT
INPUTS
Connect guitars/bass/
keyboards directly.
TRIM (FINE)
31-position stepped control
with +/- 15 dB of gain in
1dB increments.

Rear Panel

USB
'C' Type connection
for in-built USB audio
interface.
AUTO- WORDCLOCK
RANGING Wordclock OUT and IN
PSU & Rocker via BNC connectors. 75Ω
Switch wordclock termination
6
GAIN (COARSE)
11-position stepped control
provides up to +65 dB of
gain.
CONFIGURATION
Impedance switching,
Drive modes & Insert in/
out.
ADAT OUT
Optical ADAT OUTS providing up to 8
channels (A/D mode) or 16 channels (USB
DAW outputs mode) of digital audio.
AES/EBU OUT
1/2, 3/4, 5/6 and 7/8
AES outputs.
.
POLARITY & +48V
INDICATORS
Polarity invert on/off & +48V
Phantom Power
HIGH-PASS FILTER &
LINE INDICATORS
18 dB per octave 75
Hz HPF & Line input
indicators.
LINE INPUTS
Dedicated Line
Inputs on D-Sub
connector (DB25).
ANALOGUE OUTPUTS/
INSERT SENDS
Balanced analogue outputs/
insert sends on D-Sub
connector (DB25).
METERING AND STATUS
6-segment metering,
Sample Rate & Clocking
status.
STANDBY, INSERT MODE and
DIGITAL CLOCK SETUP
Standby on/off, Insert mode and
digital clocking rate and source.
INSERT RETURNS
Balanced analogue insert returns/
ADC inputs (+24 dBu) on D-Sub
connector (DB25).
ANALOGUE INPUTS
Mic-level connections via the
XLR socket. Line-level via the
TRS jack in the centre of the
socket.
