Hi-Z/DI - Instrument Inputs
The first four input channels feature a 1MΩ Hi-Z/DI unbalanced Instrument input for connecting sources such
as guitars and keyboards.
These inputs have automatic detection meaning that plugging a jack into the socket will automatically cause the
Hi-Z/DI Input to be the selected source (instead of Mic or Line). The +48V, LINE and ZΩ buttons are disabled
but you can of course still use the DRIVE modes to colour the signal (or not) as you please.
Power, Digital Clock Setup & Metering

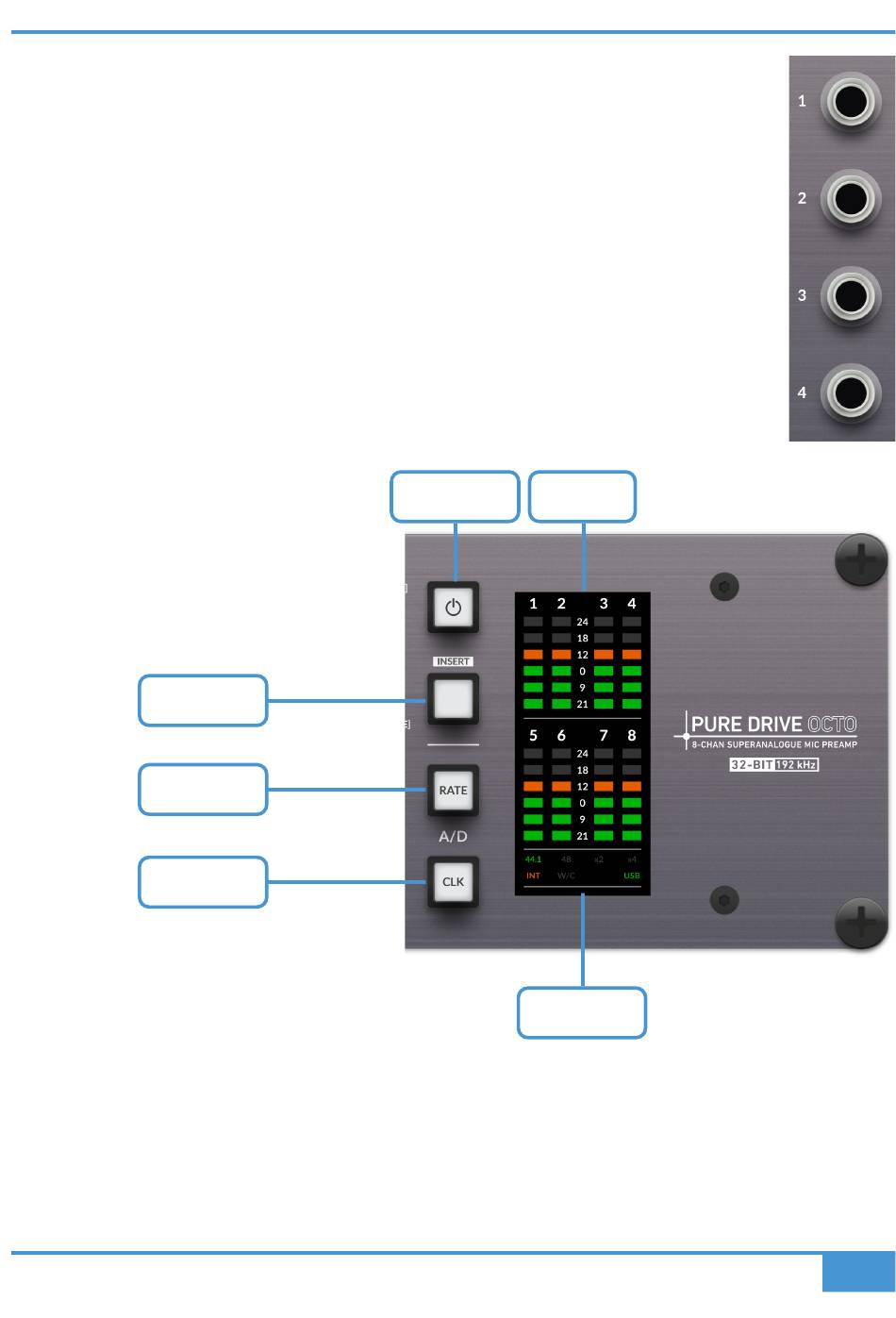

STANDBY MODE METERING
INSERT MODE
SAMPLE RATE
CLOCK SOURCE
STATUS
Metering
6-segment LED metering displays the signal level in dBu at the analogue to digital converter stage. The peak hold segment and the
release ballistics can be adjusted to suit your preference. Please refer to the Settings section of this user guide for more information.
INSERT MODE
Engaging the INSERT MODE button hijacks the channel ZΩ buttons to become insert return enable/disables whilst the INSERT
MODE button is engaged. The button will pulse bright white whilst active.
