Troubleshooting & FAQs
Soak and Potentiometer Test Mode
Soak mode is used to check the correct operation of all lights and indicators on front panel. It cycles through the phases listed

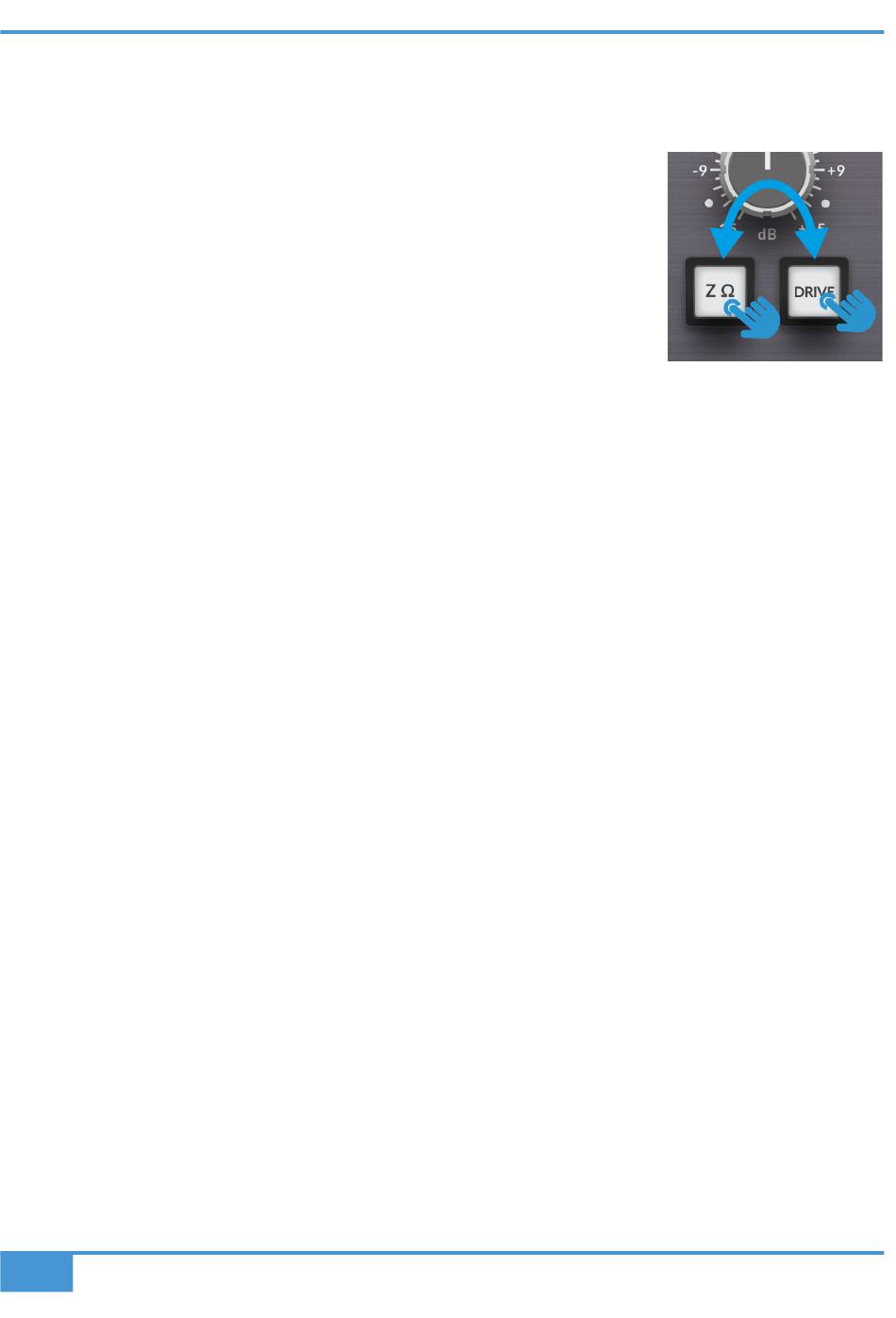

below. To enter Soak mode, hold down Channel 1 ZΩ and DRIVE buttons during the power-up sequence.
1. All switches lights bright white, if available (otherwise off) + meters pattern
2. All switches lights red, if available (otherwise dim white) + meters pattern
3. All switches lights green, if available (otherwise dim white) + meters pattern
4. All indicators lit up (green or red, depending on function) + meters pattern
5. Same as 1 but meters full lit
6. Same as 2 but meters full lit
7. Same as 3 but meters full lit
8. Same as 4 but meters full lit
In this mode it's also possible to test the correct operation of the potentiometers. A position change on any of the pots will trigger
the relay to click as a confirmation feedback.
Channel 1 GAIN controls the speed at which the patterns are cycled.
Full CCW position pauses the animation at the current step. Rotating the knob towards clockwise direction will increase pattern
speed.
Exit Soak and Potentionmeter Test Mode mode by holding the STANDBY button until the unit power cycles back into normal
operation.
