Peak KAL-12A Installation And Service Manual

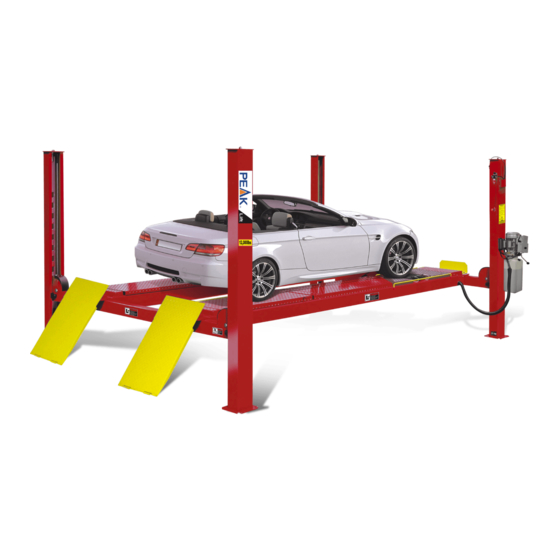

4-post lift
Hide thumbs Also See for KAL-12A:
Table of Contents

Advertisement

Quick Links

Download this manual
Original
4-post Lift
Model: KAL-12, KAL-12A, KAL-12AX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KAL-12A and is the answer not in the manual?

Questions and answers

Related Manuals for Peak KAL-12A

Summary of Contents for Peak KAL-12A

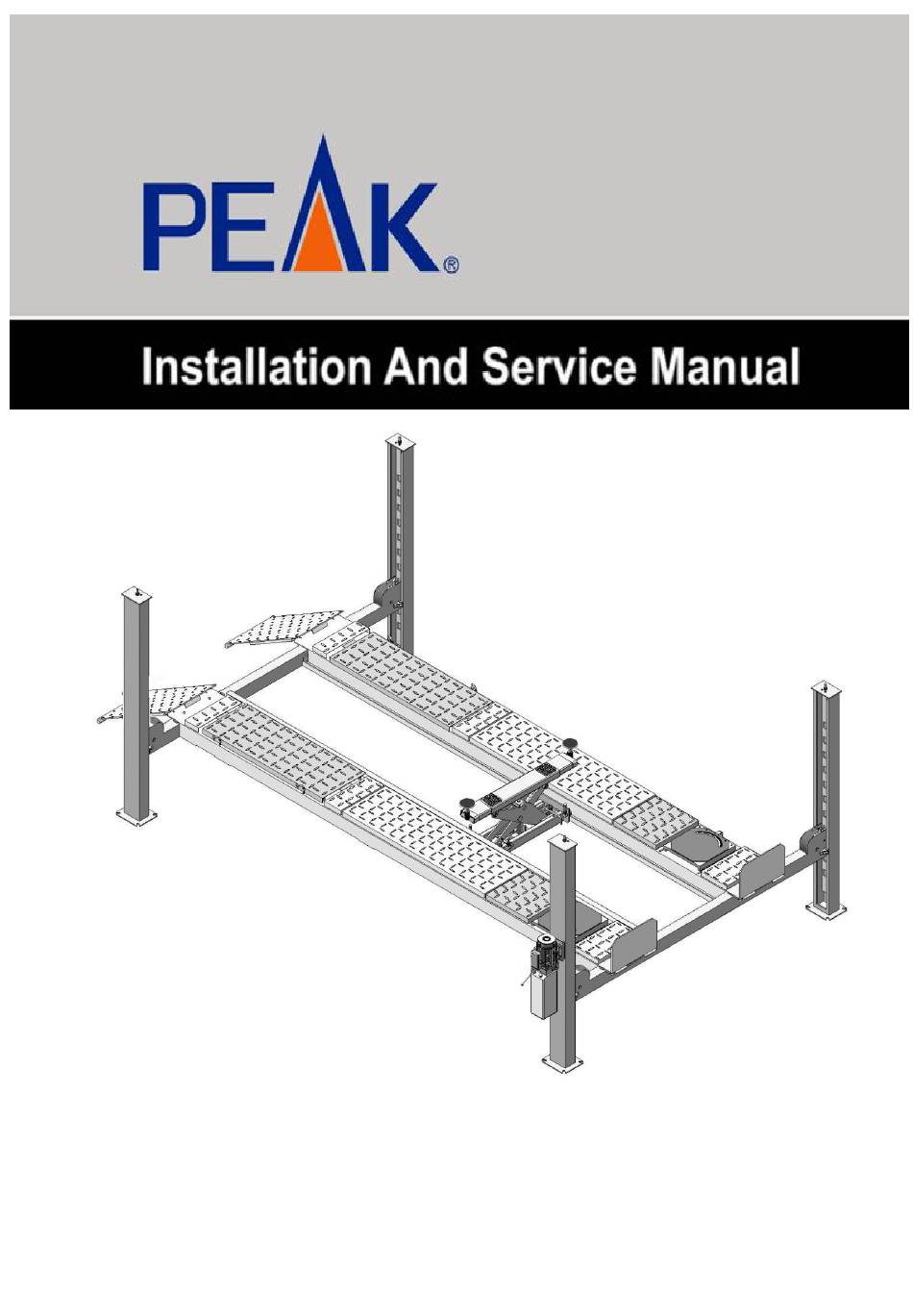

  • Page 1 Original 4-post Lift Model: KAL-12, KAL-12A, KAL-12AX...

  • Page 2: Table Of Contents

    CONTENTS Product Features and Specifications ............. 1 Installation Requirement ..............2 Steps of Installation ................5 Exploded View ..................24 Test Run ..................34 Operation Instruction ............... 35 Maintenance ................... 35 Trouble Shooting ................37 Lift Disposal..................37...

  • Page 3: Product Features And Specifications

    · Strengthen and Non-skid diamond platforms. · Adjustable platform and adjustable safety lock ladders. · Optional Jack: With hand pump/Air-operated hydraulic pump/Controlled by power unit. . Optional Turnplate：Alignment model only KAL-12 KAL-12A, KAL-12AX Fig.1 Fig.2 ALIGNMENT MODEL SPECIFICATIONS Width Lifting...

  • Page 4: Installation Requirement

    II. INSTALLATION REQUIREMEN A. TOOLS REQUIRED Rotary Hammer Drill (Φ19) Carpenter’s Chalk   Hammer Screw Sets   Level Bar Tape Measure (7.5m)   English Spanner (12") Pliers     Wrench Set Lock Wrench , 12 , 13 , 14 , 17...
  • Page 5 B. Equipment storage and installation requirements. The equipment should be stored or installed in a shady, normal temperature, ventilated and dry place. C. The equipment should be unload and transfer by forklift. Fig. 4 D. SPECIFICATIONS OF CONCRETE (See Fig. 5) Specifications of concrete must be adhered to the specification as following.

  • Page 6: Steps Of Installation

    III. STEPS OF INSTALLATION A. Location of installation Check and insure the installation location (concrete, layout, space size etc.) is suitable for lift installation. B. Check the parts before assembly 1. Packaged lift and hydraulic power unit (See Fig. 6) Fig.
  • Page 7 Move aside the parts and check the parts according to the shipment parts list (See Fig. 9). KAL-12 Fig. 9 KAL-12A KAL-12AX Fig. 10 - 6 -...
  • Page 8 6. Open the carton of parts and check the parts according to the parts box list (See Fig. 11) Fig. 11 7. Check the parts of the parts bag according to the parts bag list (See Fig. 12) KAL-12 Parts bag 1 KAL-12A KAL-12AX Parts bag 1 - 7 -...
  • Page 9 Note: Reserve space before and behind the installation site. Car in Direction Use a carpenter’s chalk line to establish installation layout Fig. 13 Model KAL-12 5100mm 3208mm 6025mm KAL-12A 200 3/4” 126 1/4” 237 1/4” KAL-12AX 5100mm 3356mm 6105mm - 8 -...
  • Page 10 D. Install cross beams (See Fig. 14, Fig. 15) Hole towards inside Fig. 14 Fig. 15 - 9 -...
  • Page 11 E. Fix the anchor bolts 1. Prepare the anchor bolts (See Fig. 16). Spring washer Washer Fig. 16 2. Using the prescribed rotary hammer drill, and drill all the anchor holes and install the anchor bolts, do not tighten the anchor bolts first (See Fig.
  • Page 12 2. Install safety ladders (See Fig. 19). This height should be the same for four safety ladders Safety ladder pass through the hole of the top plate, then tighten the two nuts Fig. 19 G. Put the Cross Beams at the same height (See Fig.
  • Page 13 H. Install power-side platform. 1. Put the power-side platform upon the cross beams by forklift or manual, offset the cross beams to the outside till the pulleys of both platforms can set up into the cross beam (See , Install the power-side platform and screw up the bolts Fig.21,22) (See Fig.23) Beams and columns tilt...
  • Page 14 I. Assembly offside platform and slider block, check the plumbness of (See Fig. 24) columns with level, adjusting with the shims if not, and then tighten the anchor bolts (See Fig. 25). 3-15 3-16 Note: Torque of Anchors is 150N.m. Using the ratchet spanner with socket to tighten the bolts 3-14...
  • Page 15 J. Install cables 1. Pass through the cables from the platform to the columns according to the number of the cables (See Fig. 26). Fig. 26 ○ ○ ○ ○ Cable KAL-12(A) Length 3775mm 10325mm 5380mm 8710mm (w/ fitting) Length 3850mm 10400mm 5455mm...
  • Page 16 2. The cable pass through the cross beam to top plate of columns and be screwed with cable nuts then install the cable limit pin. (See Fig. 27, 28), (See Fig. 29) Cable pass through top Cable pass through plate and be screwed between the big pulley with cable nuts.
  • Page 17 3. Illustration for platform cables (See Fig. 30, 31, 32). Limit Slider cable ④ cable ② cable ② cable ④ cable ① cable ③ Fig. 30 cable ④ cable ④ cable ③ cable ② cable ② cable ① Fig. 31 cable ②...
  • Page 18 K. Install oil-water separator, manual control air valve and power unit (See Fig. 33). Air inlet Air outlet The side marking “P” on the air valve is Air Input. direction Fig. 33 - 17 -...
  • Page 19 L. Install hydraulic system Note: Oil hoses and oil return pipe connected to oil cylinder must be passed above the cable and cylinder inlet port must swing upward to avoid the oil hose and oil return pipe scratched by cable. Oil and air pipes through the clamp...
  • Page 20 M. Install air-line system 1. Connecting front and rear Cross Beam cylinders by using 6*4 black air pipe. (the actual length of air line can be cut by user) ( See Fig.38 2, Cut the 6*4 black air pipe by scissor between two retainers, then connect the air line with T fitting.
  • Page 21 4. Connecting Oil-water separator and Manual control air valve using air line (See Fig. 41) Oil-water separator Connecting Oil-water separator and Manual control air valve using black air line Manual control air valve Air pipe ￠6×￠4 Fig. 41 5. Connecting air inlet (Air supply pressure 8 kg/cm ), adjusting the air pressure of Oil-water separator to 0.8 MPa (See Fig.
  • Page 22 N. Install Electrical System Connect the power source on the data plate of Motor. Note: 1. For the safety of operators, the power wiring must contact the floor well. 2. Pay attention to the direction of rotations when using 380V, three phase motors. Single phase motor 1.
  • Page 23 Three phase motor The power supply wires L1, L2, L3 are connected with terminals of AC contactor marked L1, L2, L3 respectively.Earth wire( yellow and green wire) is connected with the earth wire terminal of the motor. (See Fig. 45) Wire of motor Fig.
  • Page 24 P. Install drive-in ramp, tire stop plate, platform lock plates,Limit rod (See Fig. 47 Install Drive-in ramp Install Tire stop plate The lock plates are used to prevent the turning & slipping of offside platform, Using Hex bolt M8*20 for the connection. Install Limit rod Fig.47 - 23 -...

  • Page 25: Exploded View

    IV. EXPLODED VIEW KAL-12 Fig.48 - 24 -...
  • Page 26 KAL-12A KAL-12AX When installing the turntable, both sides are required a 35mm-high turntable block. Fig.49 - 25 -...
  • Page 27 PARTS LIST FOR KAL-12, KAL-12A, KAL-12AX KAL-12AX Item Part# Description KAL-12 KAL-12A 11420011A Power-side Column 11420002 Offside Column 10420253 Cross Beam Assy. 10480040 10440041 Slider block 10209059 Anchor Bolt 11410022 Safety Ladder 10420175A Hex Nut 11440038 Power-side Platform 11440002A 11420022A...
  • Page 28 10440501 Part box 10450501 11420031-1 Tire stop plate 10201005 Split pin 10620065 Shim 1mm 10201090 Shim 2mm 10209056 Self-locking Nut 11420217 Cable limit pin 11420007 Plate for Adjustable Turnplate 11420012A Cylinder fixing ring 10420012 Cylinder 11430622 Cable connecting plate 10420014 Hex nut 10420016B Protective hose...
  • Page 29 4.1 CROSS BEAM Fig. 38 Fig. 50 Parts list for Cross Beam Item Part# Description Note 11420254 Cross Beam KAL-12(A) 11480023 Cross Beam KAL-12AX 10420051B Pulley Safety Cover 10209009 Cup Head Bolt 11420044 Limit Plate 10420138 Socket Bolt 11420038 10420037 Snap Ring 10420033 Spring...
  • Page 30 4.2 CYLINDERS Fig. 51 Parts list for Cylinder Item Part# Description Note 51-1 10420059 Dust Ring 51-2 10420060 Y- Ring 51-3 11420061 Head Cap 51-4 10420062 O- Ring 51-5 11420063 Bore Weldment 51-6 11420064 Piston Rod 51-7 11420065 51-8 10420066 Support Ring 51-9 10420067...
  • Page 31 4.3 Power unit（071102）exploded view： 220V/60HZ, Single Phase Fig.52 - 30 -...
  • Page 32 Parts list for 220V/50Hz, Single Phase Item Part# Description 81400180 Rubber Pad 81400250 Starting capacitor 81400200 Running capacitor 10420148 Cap Head Bolt with washer 81400066 Cover of Motor Terminal Box 81400363 Motor Connecting Shaft 80101013 Manifold block Washer 10209149 Iron plug 81400276 Red rubber plug 81400259...
  • Page 33 Illustration of hydraulic valve for power unit Oil return port Relief Release valve valve Check valve Throttle valve Oil outlet Handle for relief valve Fig.53 - 32 -...

  • Page 34: Test Run

    V. TEST RUN Fill the reservoir with approximately 14L Hydraulic Oil (Note: In consideration of Power Unit’s durability，please use Hydraulic Oil 46#). Press button UP, the Cables will be strained. Check whether the Cables match the Pulley. Make sure the Cables are not across. 3.

  • Page 35: Operation Instruction

    VI. OPERATION INSTRUCTIONS To lift vehicle 1. Keep clean of environment near the lift; 2. Drive vehicle to the Platform and put on the brake; 3. Turn on the power and press the button UP, raise the lift to the working position; Note: make sure the vehicle is steady when the lift is raised.

  • Page 36: Maintenance

    Oil cylinder maintenance: In order to extend the service life of the oil cylinder, please operate according to the following requirements. 1. Recommend to use N46 anti-wear hydraulic oil. 2. The hydraulic oil of the lifts should be replaced regularly during using. Replace the hydraulic oil 3 months after the first installation, Replace the hydraulic oil once a year afterwards.

  • Page 37: Trouble Shooting

    VIII. TROUBLE SHOOTING TROUBLE CAUSE REMEDY 1. Button does not work 1.Replace button 2.Wiring connections are not in good 2.Repair all wiring connections condition 3.Repair or replace motor Motor does 3. Motor burned out 4.Replace AC contactor not run 4. AC contactor burned out 5.Replace 5.
  • Page 38 PEAK CORPORATION No. 3 Luomu Road,Shishan Town,Nanhai District,Foshan(528225),Guangdong,China Tel:86-757-81102815 81102805 Fax: 86-757-81102809 Email:peak@peaklift.cn http://www.peaklift.cn Manual Part No.: 72204409 72104408 Revision Date: 2022/03 2019/12 - 37 -...

This manual is also suitable for:

Kal-12axKal-12
