Summary of Contents for Extraflame EVELYNE IDRO 2.0

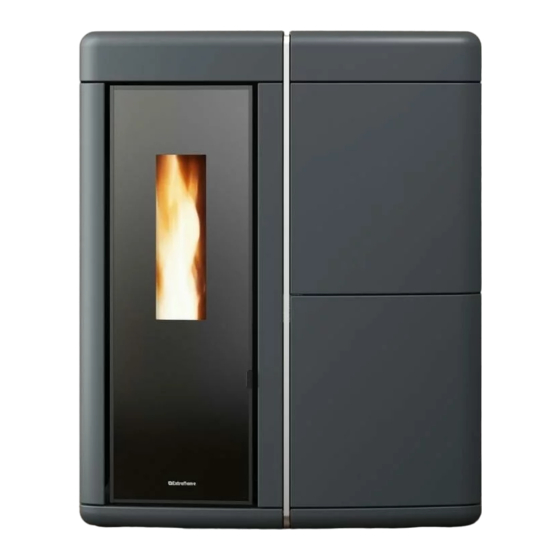

- Page 1 THERMO PRODUCTS USER MANUAL EVELYNE IDRO 2.0 MADE ITALY design & production 004281061 - REV.000...
- Page 2 APPLY TECHNICAL DATA LABEL...
-
Page 3: Table Of Contents
FuMES EXHAuST SYSTEM............................................9 HydrauLIc SyStEM ...................................... 10 INSTALLATION AND SAFETY DEVICES ......................................10 aNtI-coNdENSatIoN dEVIcE (MaNdatory) ............................11 dEtaILS EVELyNE Idro 2.0 ..................................12 fEaturES........................................13 cHEckS aNd MEaSurES for coMMISSIoNING ............................13 THE PELLET LOAD MOTOR DOES NOT FuNCTION: ..................................13 buLb THERMOSTATS - RESETTINg ........................................13... -
Page 4: English
We thank you for having chosen our company; our product is a great heating solution developed from the most advanced technology with top quality machining and modern design, aimed at making you enjoy the fantastic sensation that the heat of a flame gives, in complete safety. Warnings This instructions manual is an integral part of the product: make sure that it always accompanies the appliance, even if transferred to another owner... - Page 5 received instructions on sAfe use of the APPliAnce And thAt theY understAnd the inherent dAngers. Š the generAtor must not Be used BY Persons (including children) with reduced PhYsicAl, sensorY And mentAl cAPAcities or who Are unsKilled Persons, unless theY Are suPervised And trAined regArding use of the APPliAnce BY A Person resPonsiBle for their sAfetY.
-
Page 6: Routine Maintenance
(strong wind, freezing) sAfetY sYstems mAY intervene thAt switch the generAtor off. if this occurs, contAct the technicAl After-sAles service And AlwAYs disABle the sAfetY sYstems. Š in the event the flue cAtches fire, use suitABle sYstems for suffocAting the flAmes or reQuest helP from the fire BrigAde. -
Page 7: Installation
InstallatIOn general The flue gas exhaust and hydraulic connections must be carried out by qualified personnel who must issue installation conformity documentation compliant with national standards. the installer must provide the owner or person acting for him, according to the legislation in force, with the declaration of conformity, supplied with: 1) the use and maintenance manual of the appliance and of the system components (such as for example, the smoke ducts, chimney, etc.);... - Page 8 In the presence of type B gas appliances with intermittent operation not intended for heating, they must have their own aeration and/or ventilation opening. The air inlets must meet the following requirements: Š they must be protected with grids, metal mesh, etc., but without reducing the net useful section; Š...
-
Page 9: Hermetically Sealed Installation
Hermetically sealed installation The generator is a fully sealed product with respect to the environment in which it is installed. This means that it is ideal for passive houses because it does not take air in from within the house. combustion air To ensure the stove remains hermetically sealed, the connection pipe for the combustion air must be directly connected to the exterior, using special pipes and sealed connectors. -
Page 10: Hydraulic System
Standards in force, national, regional and municipal, as well as these instructions. For Italy, installation must be carried out by professionally qualified staff (Ministerial Decree dated 22.01.08 n°37). Extraflame S.p.A. declines all responsibility for damage to objects and/or persons caused by the system. TYPE OF SYSTEM Š... -
Page 11: Anti-Condensation Device (Mandatory)
DISTANCES OF SAFETY DEVICES ACCORDINg TO THE STANDARD The temperature safety sensors must be in place on the machine at a distance no greater than 30 cm from the flow connection. Whenever the generators lack a device, those missing can be installed on the generator flow pipe, within a distance no greater than 1 m from the machine. COMMISSIONINg CHECkS Before connecting the boiler: a) wash all system piping thoroughly in order to remove any residues which might compromise the correct functioning of certain system... -
Page 12: Details Evelyne Idro 2.0
Details eVelYNe iDRO 2.0 Exchanger scraper cover Room air output Pellet hopper pressurised closure External door handle Upper flue gas outlet Rear flue gas outlet Lateral flue gas outlet Power supply 230v fuse On/Off Rear combustion air inlet Radio/emergency board... -
Page 13: Features
featuRes Water content of the thermo-product heat exchanger (l) volume of expansion vessel integrated into thermo-product (l) 3 bar safety valve integrated into the thermo-product Minimum and maximum pressure switch integrated into the thermo-product PWM pump integrated into the thermo-product Pump max. -
Page 14: Stove Positioning
stOVe pOsitiONiNg for correct product functioning, it is recommended to position it in a way that it is perfectly level, with the aid of a spirit level. NOtes fOR cORRect OpeRatiON Pellet tank cover for correct operation of the pellet stove, one must comply with the following indications: Both during the functioning and when the stove is not in use, all the machine doors (pellet hopper, fire door, ash drawer) must... -
Page 15: Pellets And Feeding
Pellets and feeding Pellets are made by subjecting wood shavings i.e. the rejects of pure wood (without paint) sawmill, carpenter products and products from other activities connected to working and transforming wood, to very high pressures. This type of fuel is fully ecological as no glues are used to hold it together. In fact, the compactness of the pellets is guaranteed over time by a natural substance that is found in wood: wood coal. -
Page 16: Radio/Emergency Card
Radio/emeRgency caRd The stove is fitted with an emergency radio card which allows for basic control of the stove in the event of a fault or if the remote control is malfunctioning. The functions that can be managed from the emergency card are: On/Off stove. -
Page 17: Radio Control Device
radIO cOntrOl devIce cOnFIGUratIOn RAdIo conTRol devIce codIng pRoceduRe: 1. disconnect the power supply to the stove. 2. press the keys at the same time until the UNIT selection page appears. 3. using keys select the new UNIT' . 4. power the stove. Within 10 seconds (the led on the emergency module will flash) confirm the selected unit by pressing on the radio control device. -
Page 18: Radio Control Device Features
radIO cOntrOl devIce FeatUres Š The radio control is fitted with an lcd backlit display. The display remains lit for 5 seconds. After a certain period of time, in order to minimise battery consumption, the display turns off (sleeP mode). Š... -
Page 19: Display
dIsplay screen with ventilAtion not enABled Stby active chrono active Battery low power 1-5^ Time Water temperature (H2o) detected in the boiler Set H2o temperature set display text screen with ventilAtion enABled Stby active chrono active Battery low power 1-5^ Time Water temperature (H2o) Temperature detected in... -
Page 20: General Menu
General menU function function Scroll through parameters Back - exit key Modify settings on - off key Access menu key ventilAtion enABling sPeed eAsY setuP set thermostAt chrono enABling Prg1 Prg2 settings dAte-time Prg3 lAnguAge Prg4 disPlAY stAnd BY first loAd outlet Air cleAning *stove stAtus... -
Page 21: First Ignition Settings
FIrst IGnItIOn settInGs After connecting the power cord at the back of the generator, turn the switch (if any) to position (i). the switch is used to power the heat generator board. if the switch is in the off position, the generator will remain off and the word off will appear on the panel. dAte-time This menu allows the date and time to be set. -
Page 22: Operation And Logic
OperatIOn and lOGIc ignition once the previously listed points have been checked, press key for three seconds to ignite the stove. 15 minutes are available for the ignition phase. After ignition and after the control temperature has been reached, the stove interrupts the ignition phase and switches to pRepARATIon. -
Page 23: Additional Thermostat
addItIOnal thermOstat n.B. : InstallatIOn mUst Be perFOrmed By an aUthOrIsed technIcIan It is possible to control the temperature of a room adjacent to the room where the stove is positioned; simply connect a thermostat following the procedure described in the following section (it is advisable to place the optional mechanical thermostat at a height off the ground equal to 1.50 m). -
Page 24: Ventilation
ventIlatIOn This menu allows to enable or disable the operation of the tangential motor and to adjust the speed (-2, -1, 0, +1, +2) of the front fan. The set thermostAt allows to set the room temperature to be reached (front ventilation must be active). once the temperature set in set temPerAture has been reached, the ventilation will turn oFF and then it will turn back on when required. -
Page 25: Chrono
chrOnO This function allows stove ignition and switch-off to be automatically programmed. The factory setting for cHRono is off. The chrono allows the programming of 4 time slots per day, which can be used every day of the week. For each time slot, it is possible to set ignition and switch-off times, specific days of application, desired temperature and set power. - Page 26 eXAmPle of chrono overlAPPing times/slots TIMe SloT 02:00 08:00 16:30 23:00 SeT poWeR 02:00 08:00 16:30 23:00 SeT H2o 72° 68° 02:00 08:00 16:30 23:00 Start 02:00 Time slot 1 power 3 - SeT H2o 72°c Stop 23:00 Start 08:00 Time slot 2 power 1 - SeT H2o 68°c Stop 16:30...
-
Page 27: Settings
settInGs • date-tIme • lanGUaGe See chapter: firSt ignition SettingS • set deGrees dIsplay The "disPlAY" menu allows: Š Adjustment of display contrast. Š Activation/deactivation of backlight. Š enabling/disabling of acoustic signal. Š Setting of the timer to turn off the display backlight. Š... -
Page 28: Reset
To set: OK > SeTTINgS > WI-FI > INFO - mAc: unique identification code of the Wi-Fi device - code: numeric code required for connection with the extraflame server - rssi: Received signal strength, when the Wi-Fi is correctly connected to an access point The rSSI value is expressed in decibels (dB) as a negative number which is typically in the range between -60dB (excellent signal) and -85dB (very poor signal). -
Page 29: Depressure Notice
wi-fi led stAtus eXPlAnAtion solution enable the module from the Wi-Fi menu Module off check the stove power supply contact the technical support service It is correct for the stove not to be recognised in FAST on/oFF FlASHIng Stove not recognised the first few seconds after being switched on Connection problem with the main stove card (0.1s on / 0.1s oFF) -
Page 30: Cleaning And Maintenance
Your neArest service centre is, contAct Your deAler or visit the weBsite: www.lAnordicA-eXtrAflAme.com CLEANING AND MAINTENANCE ALWAYS FOLLOW THE INSTRUCTIONS IN COMPLETE SAFETY! Š Make sure that the power supply cable plug is disconnected, as the generator may have been programmed to turn on. -
Page 31: Mechanism Lubrication
BURN POT AND COMBUSTION CHAMBER By means of a mechanical system, the burn pot is cleaned automatically at preset intervals. it is however advisable to remove any residues by using a vacuum cleaner. Š Suck the ash deposited between the partition and the fire holder. -
Page 32: Burn Pot Details
A CLEAN BURN POT GUARANTEES CORRECT OPERATION! BY KEEPING THE BURN POT AND ITS HOLES CONSTANTLY CLEAN AND FREE OF COMBUSTION RESIDUE, EXCELLENT COMBUSTION IS GUARANTEED OVER TIME, THUS PREVENTING ANY GENERATOR MALFUNCTIONS THAT MAY REQUIRE TECHNICAL ASSISTANCE. THE “EASY SETUP” FUNCTION IN THE USER MENU CAN BE USED TO ADAPT COMBUSTION ACCORDING TO THE NEEDS DESCRIBED. -
Page 33: Mechanism Lubrication (Technician)
Your neArest service centre is, contAct Your deAler or visit the weBsite: www.lAnordicA-eXtrAflAme.com ROUTINE MAINTENANCE PERFORMED BY QUALIFIED TECHNICIANS Routine maintenance must be performed at least once a year. - Page 34 Your neArest service centre is, contAct Your deAler or visit the weBsite: www.lAnordicA-eXtrAflAme.com THE iMAgES ARE foR illUSTRATiVE PURPoSES. Fumes motor (disassembly and cleaning and fumes pipe and "T"), new silicone in the provided points Gaskets, pellet hopper, inspections, ash drawer and door (replace and apply silicone where indicated) Combustion chamber and heat exchanger (full cleaning) including ignition plug pipe Hopper (complete emptying and cleaning).
-
Page 35: Displays
Displays Display Reason Generator off sTaRT The start-up phase is in progress pelleT loaDinG Continuous pellet feeding is in progress during the ignition phase iGniTion The ignition phase is in progress pRepaRaTion The PrePArAtion phase is in progress WoRK The normal work phase is in progress MoDUlaTion The generator is working at minimum **BURn poT CleaninG... -
Page 36: Alarms
alaRMs Display eXplanaTion solUTion On: indicates the presence of an alarm Flashing: indicates the deactivation of the depression sensor. The alarm can be reset only if the fumes motor has stopped and 15 minutes Indicates the presence of an alarm. have passed since the alarm was displayed, by pressing the key 1/ON/ for 3 seconds. - Page 37 The automatic cleaning of the burn pot is Check that the door closes correctly. Check that the burn pot is clear and blocked. **TRapDooR BloCKeD clean. The automatic cleaning of the burn pot is blocked. Burn pot dirty/clogged If the problem persists, contact the service centre. The door is not closed correctly.
-
Page 38: Disposal
Disposal informAtion for mAnAgement of electric And electronic APPliAnce wAste contAining BAtteries or AccumulAtors This symbol, which is used on the product, batteries, accumulators or on the packaging or documents, means that at the end of its useful life, this product, the batteries and the accumulators included must not be collected, recycled or disposed of together with domestic waste. Improper management of electric or electronic waste or batteries or accumulators can lead to the leakage of hazardous substances contained in the product. - Page 39 ENGLISH...
- Page 40 CONTACT YOUR DEALER OR CONSULT THE SITE WWW.LANORDICA-EXTRAFLAME.COM The manufacturer reserves the right to vary the characteristics and the data reported in this pamphlet at any moment and without notice, in order to improve its products. 26/01/2022 004281061-000 MAN.UT. EVELYNE IDRO 2.0...
