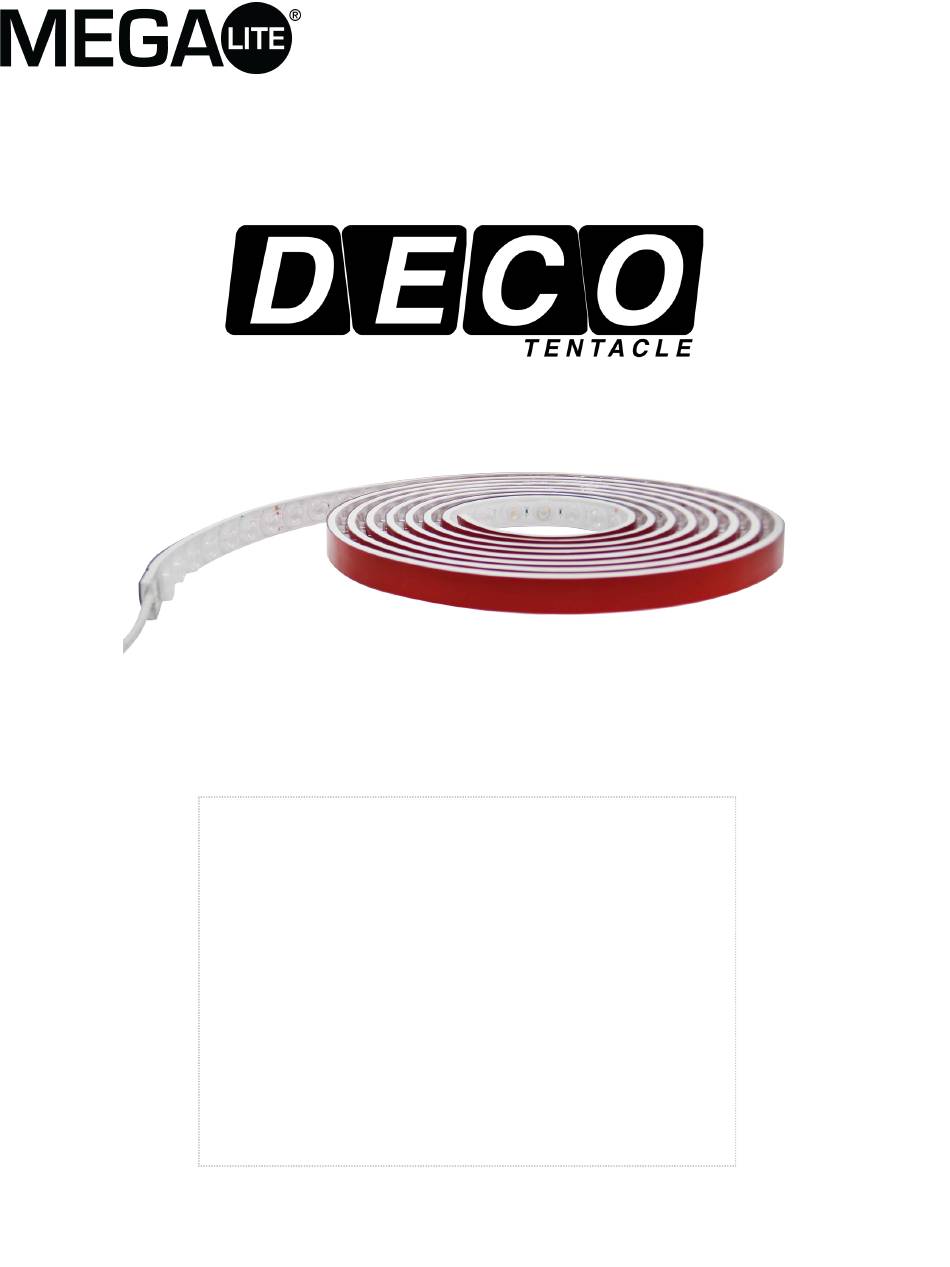

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information What Is Included Specifications Main Power Connection DMX-512 Control Deco Driver Info Size & Weight Cleaning & Maintenance Rigging the Fixture Warranty Customer Support... -
Page 2: Safety Information
An IP66 rating in this fixture indicates that dust particles can not enter the fixture. And there is protection against water spray from entering the fixture from any direction. What is Included 1pc Deco Tentacle 6pc Single Point Mounting Clips 1pc User Manual... -
Page 3: Specifications
Specifications Part Numbers Fixture 5050T– Deco Tentacle Mechanical Specifications IP Rating: IP65 Fastening System: 6 Mounting Clips (included) 3M Temporary Mounting Tape Power Connection: 5 Conductor Cable Housing: Silicone type material Housing Type: Lensed flex unit Curving Type: Up & Down Curve (when light output is facing up) 16.5 feet (5030mm) -
Page 4: Main Power Connection
White Cable DMX-512 Control When using the Deco Tentacle with Deco Drivers the fixture is intended to be used in Ch4 or Ch7 modes. The Deco Driver will be required to be set in Ch4 or Ch7 operating modes Ch4 Mode... -
Page 5: Size & Weight
Size & Weight Cuttable Every 6.53 inches (166mm) .80 inches (20mm) .93 inches (23.8mm) LED Spacing 16.5 feet / 5030mm (+/- 30mm With Cable) Total Length .43 inches (11mm) .19 inches (5mm) 16’6" (5060mm) x .80" (20 mm) x 1.1"(23.8mm) Fixture Size Fixture Packaged 15"... -
Page 6: Cleaning & Maintenance
Cleaning and Maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installation and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. -
Page 8: Customer Support
(210) 684-2600 Email: sales@mega.lighting Manual Version Please Visit www.mega.lighting for the most up to date manual version. Document Date Fixture Software Notes Version 7/14/2023 UPDATED CONNECTIONS Mega Lite 18668 Highway 16N Helotes, Texas 78023 Ph 210-684-2600 Fax 210-855-6279 www.mega.lighting / info@mega.lighting...
