Chapter 2: Jumpers and Connectors

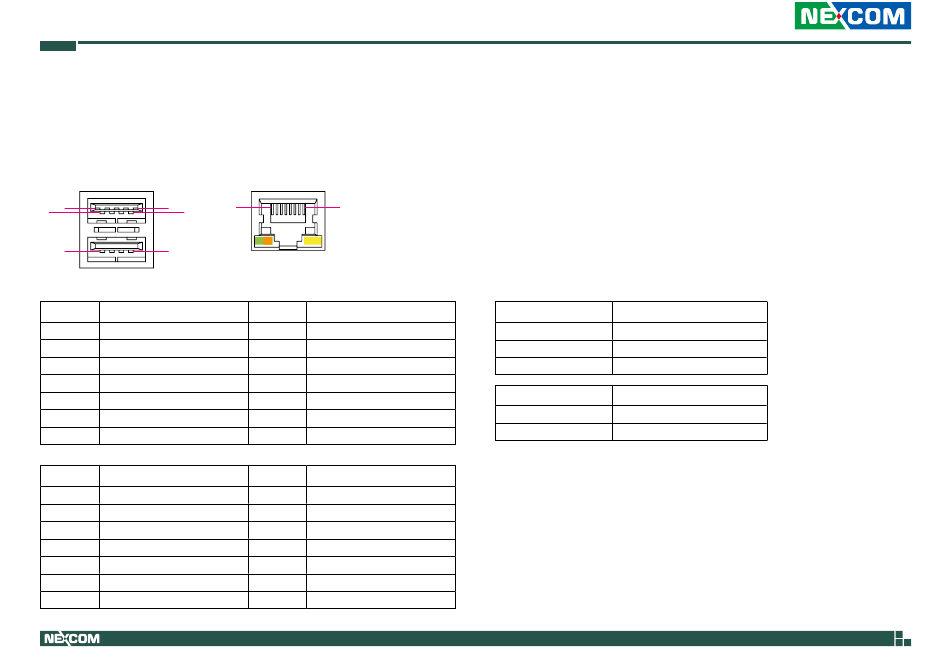

LAN1 and USB 3.0/USB 2.0 Ports

Connector type: RJ45 port with LEDs
USB 3.0 and USB 2.0 port, Type A
Connector location: CON1A (USB) and CON1B (LAN)
9 5
1 4
10 13
USB (CON1A)
Pin Definition
1 P5V_OC01_C
3 USB_0P_C
5 USB3_RX0_N_C
7 GND
9 USB3_TX0_P_C
11 HUBUSB_DN4_C
13 GND
LAN (CON1B)
Pin Definition
19 V1P5_LAN2
21 LAN2_MDI0N
23 LAN2_MDI1N
25 LAN2_MDI2N
27 LAN2_MDI3N
29 LAN2_ACT_CON
31 LAN2_100#_CON
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
20
27
LINK ACT
Pin Definition
2 USB_0N_C
4 GND
6 USB3_RX0_P_C
8 USB3_TX0_N_C
10 P5V_OC01_C
12 HUBUSB_DP4_C
Pin Definition
20 LAN2_MDI0P
22 LAN2_MDI1P
24 LAN2_MDI2P
26 LAN2_MDI3P
28 GND
30 LAN2_LED_ACT#
32 LAN2_LINK1G#
Link
Steady Green 1G network link
Steady Orange 100Mbps network link
Off 10Mbps or no link
Act
Flashing Yellow
Off
11
Status
Status
Data activity
No activity
