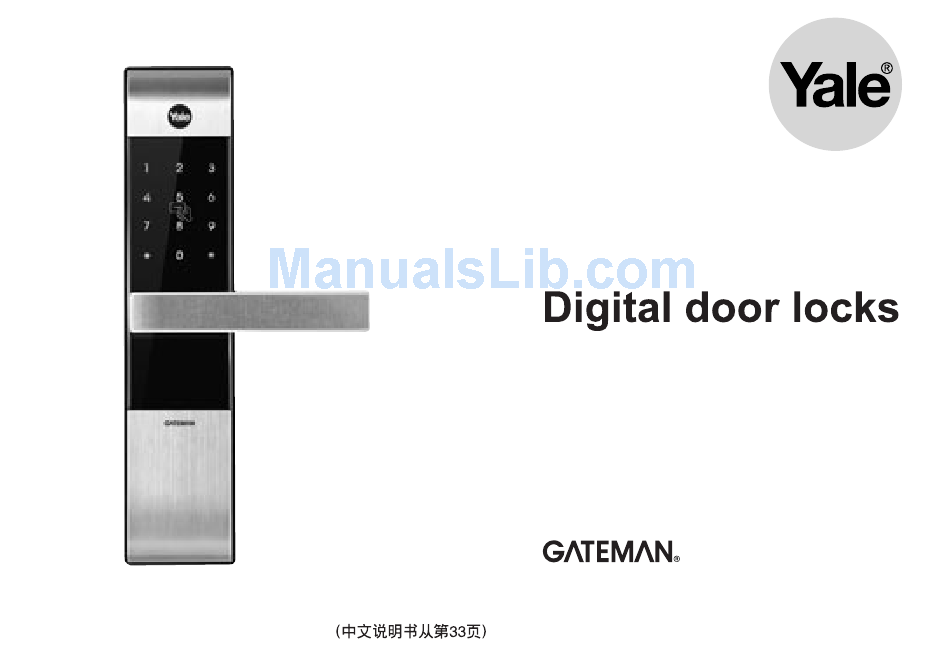

- Page 1 YDM 3109 User Manual Keep this manual safe for future reference The functions and design of this product can be changed without notice for quality improvement. ¡ Ø Chinese manual is from 33 page.
- Page 2 Ver. PMU-0904-01...
- Page 3 Disassembly, rework and reverse engineering are prohibited without a written approval of Yale except for a normal ¦ U installation of the product.
- Page 4 Yale GATEMAN digital Clean only with dry Do not attempt to When you move, door lock is a precision cloth.
- Page 5 Do not use an Handle the unit Be careful not to have Do not use water and Do not have your any type of solvent an unauthorized user card key lost or inappropriate tool with care. such as gasoline or know your security stolen.
- Page 6 Overview § š Proximity card identification Safe handle § š You can use your ISO 14443 A type RFID card such as credit Protects from any break-in attempts through the safe handle. card or pass card as your card key. Verification with the palm §...
-
Page 7: Basic Operation
Basic Operation Please do remember below operation! 1. Card Key Registration 4. Unlocking the door from the outside 7. Volume control Contact Card key Wake up the lock with the palm touch, enter the Press button Contact all the keys Press button security code and retouch the lock with the palm. -
Page 8: Table Of Contents
C O N T E N T S Specifications Option 1. Remote control module Identification of Product 2. Remote control How to use Cautions 1. Registering Card Keys 1. Emergency power supply 2. Registering Security Code 2. Lost card key 3. -
Page 9: Specifications
Specifications Parts Specifications Remarks Front (Front Body) 68.6(W) x 306.6(H) x 27(D)(70.6)mm, Zinc die-casting Operating temperature : -15~55¡ É (5~131 ¢ ªF ) Back (Main Body) 72.8(W) x 306.6(H) x 37.0(D)(80.8), Flame-Retardant ABS, Zinc D/C Lever Zinc die-casting Card Keys 4 EA Up to 40 keys (sold separately) Battery... -
Page 10: Identification Of Product
Identification of Product 1. Front (Front Body, install on the outside of the door) Keypad (10-Key) Card Key Reader Dead Bolt Jam Lamp Battery Change Lamp Lock case ¡ Ø Pull down Latch Bolt Lever Emergency Cover Automatic Locking Sensor Reset button Emergency Power Supply Terminal... - Page 11 2. Back (Back Body, install on the inside of the door) 1.5V AA Alkaline Batteries (4EA) Slot for Remote control module(Option) Battery Cover Auto / Manual Lock button Volume Control Switch Registration button Safe handle button Lever Manual thumb turn Internal Forced Lock Switch...
-
Page 12: How To Use
How to Use 1. Registering Card Keys ¢ Ã Keep the door open while you register card key to prevent yourself from accidentally getting locked out. Contact your local dealer for additional ¢ Ã ¢ Ã 4 card keys are provided at card keys. - Page 13 Contact all the card keys Press Press Check the key you wish to register on the [Registration] button operation [Registration] button [card key reader] one by one Open [Battery Cover] and If you hear a “pik” sound, the The registration is Opening the door with card keys are registered.
-
Page 14: Registering Security Code
2. Registering Security Code Keep the door open while you register the security code to prevent yourself from accidentally getting locked out. ¢ Ã (6 digits) Set a code of 6~12 digits using the number buttons (12 digits) 000000 ~ 000000000000 ¢... -
Page 15: Locking The Door From The Outside
3. Locking the door from the outside ¡ Ø Please check Automatic / Manual Lock Mode The automatic lock sensor detects the door closing and locks the door automatically within 5 seconds. Automatic lock mode Di - Within 5 seconds di - di n g The door locks when touch the keypad... -
Page 16: Unlocking The Door From The Outside
4. Unlocking the door from the outside Unlocking Contact card key Confirming the door open the door with card Security Touch the keypad Touch the keypad Enter your Confirming the with the palm again code with the palm security code door open or press button... - Page 17 Opening the lock by the fake PIN code This explains how to open the lock with the fake PIN code. Opening Touch the Touch the Press any number (fake PIN Confirming keypad with the keypad with the lock code) and the right PIN code palm or press the palm by the...
-
Page 18: Locking The Door From The Inside
5. Locking the door from the inside When set on automatic lock mode, the automatic lock sensor detects the door closing and locks the door Automatic automatically within 5 seconds. lock mode Within 5 seconds Use [manual thumb turn] on the back body. -
Page 19: Enabling/Disabling Safe Handle
7. Enabling/disabling Safe handle GATEMAN YDM3109 protects from any break-in attempts through the Safe handle button. Factory default : Enabled status Enabled Disabled status status fixing bolt fixing bolt Safe handle Safe handle button button Take out the hexagon Turn the fixing bolt on wrench which is docked the side of the inner Disabling... - Page 20 Egressing when the Safe handle egress button is on Down the lever while pressing the Example Safe handle egress button The locking bolt would not be retracted in case of not pressing the button. When the fire detection sensor is on, the feature is still on so the user must follow the usual procedure to open the door. ¦...
-
Page 21: Automatic / Manual Lock Mode
8. Automatic / Manual Lock Mode Automatic locking sensor which detects the door closing and automatically locks the door in 5 seconds. Automatic lock mode is a factory default setting. Setting it on Push up the Button automatic lock Mode. mode Manual Mode Automatic Mode... -
Page 22: Forced Lock Mode
9. Forced Lock Mode External forced lock mode Contact card key Setting Confirming external forced Lock external Contact the card key on External forced lock forced lock [card key reader] for 5 mode is set on with mode on with seconds until you hear 3 “Di-ri-ric”... -
Page 23: Break-In / Damage Alarm
10. Break-in / Damage alarm 80dB alarm goes off when the lock is damaged or anybody breaks in by force while the door is locked. Turning off the alarm (Choose one of the four options below.) Press [Unlock] Press and hold Enter your security Contact your card key button on the remote... -
Page 24: Wrong-Try Lock-Out
11. Wrong-try Lock-out No keypad function is available during this wrong-try lock-out delay. The break-in and damage alarm work regardless of this function. If incorrect security codes or unregistered card keys are attempted 5 times in a row, Lock-out 3 minutes it will lock out for about 3 minutes with the blinking LED. -
Page 25: Volume Control
12. Volume control This function can control the operating sounds so that the door can be opened and closed without disturbing others. ¦ å Silent Mode Setting the volume Button on “ 0 ” ¦ æ Normal Mode Setting the volume Button on “ 1 ” ¦... -
Page 26: Battery Use & Replacement
13. Battery use & Replacement Battery life ¡ Ø Battery life may (stand alone) vary due to 1.5V AA size alkaline battery This product uses 4 1.5V temperature, moisture, alkaline AA batteries which 10 months frequency of can be used approximately 10 1:1 actual size use, and the months on the condition of 10... -
Page 27: Displaying Operation Status (Smart Pad)
14. Displaying operation status (Smart Pad) ¦ å Battery Replacement warning External / Internal forced locking Starting from the left column, the LED Battery Icon lights on. comes on from left to right to left for twice. ¦ é ¦ æ Break-in / Damage warning Dead Bolt locking motion warning The LED keeps coming on to the... -
Page 28: Remote Control Module
Option 1. Remote control module Remote control module should be installed in advance to use remote control. Open [battery cover] and insert the module into the slot. Proper functioning of the module can be checked by operating a remote control. ¦... -
Page 29: Remote Control
2. Remote control The remote control is an FSK(Frequency Shift Keying) type that uses a Floating ID encoding system, which changes the wireless code each time you use it, so that there is no risk of hacking. It is non-directional and the operational range is up to 10~20m. - Page 30 Deleting remote control registration Press Deleting remote control Press Press buttons registration [Registration] button [Registration] button Remote control registration is cancelled with a “di-ri-ri- ring” sound. How to use the remote control Unlocking the door Changing the batteries Locking the door Press [open] button, and the door Press...
-
Page 31: Cautions
Cautions 1. Emergency power supply In case the batteries are completely discharged 9V battery can be used to supply electricity to the unit. Unlock with the card key or security code while contacting a 9V battery just like the below instruction. Discharged batteries should be replaced right away. -
Page 32: Lost Card Key
2. Lost card key If you lose your card, rest of card keys must be re-registered to invalidate missing one. Lost card key Re-registering card key Enter the security code in case you lose the card key or you are not carrying it. ¡... -
Page 33: Emergency Mechanical Key Override
4. Emergency mechanical key override Please operate the lock with the mechanical key when there is a problem to the lock or unlock the door that is the same as below listed. ¦ U Forgotten security code ¦ U Electronic malfunction ¡...
