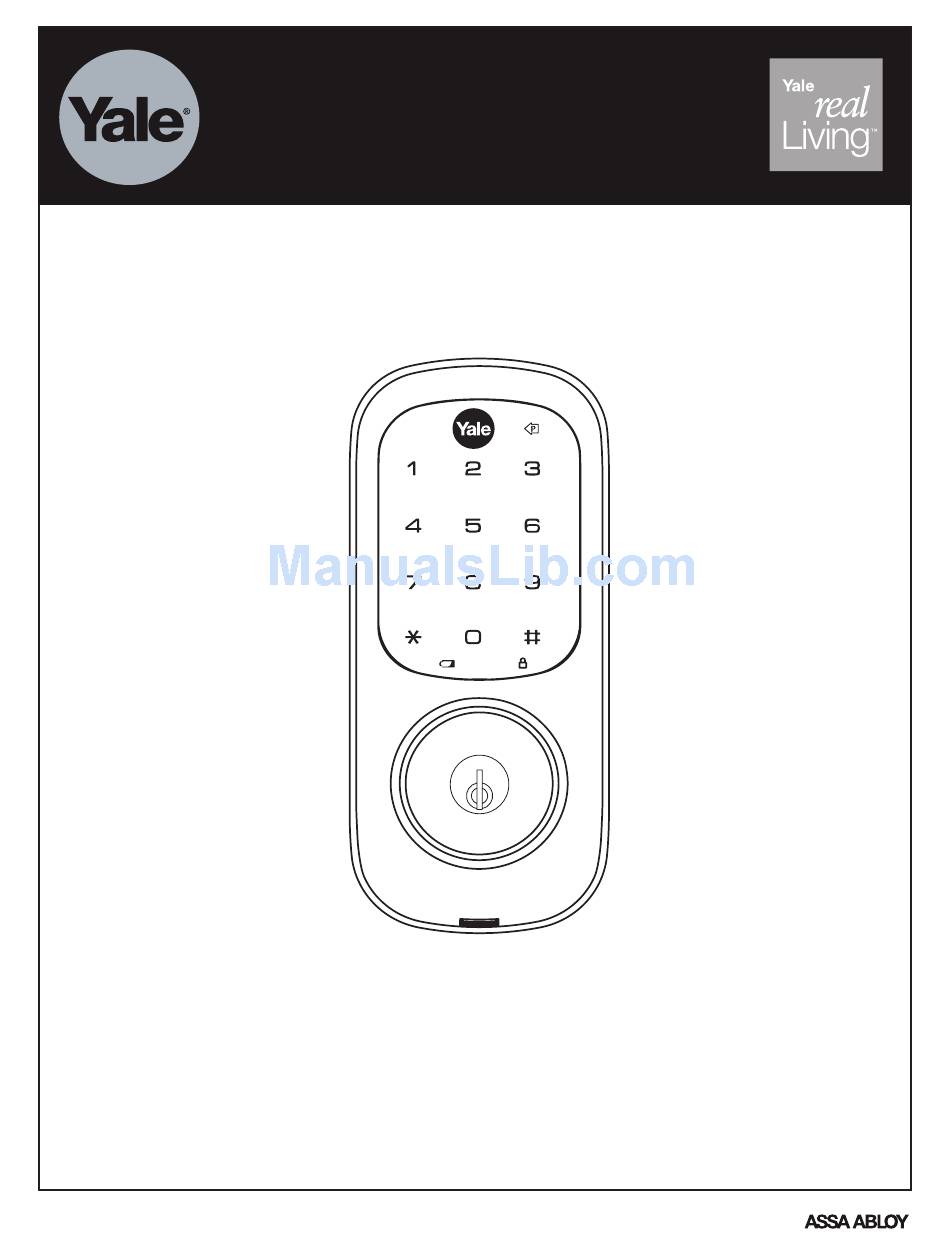

Page 1
COULD RESULT IN DAMAGE TO THE PRODUCT AND VOID THE FACTORY WARRANTY For Technical Assistance call Yale at 1-800-810-WIRE (9473) This document is available on our website in printed Spanish and French. Go to www.yalerealliving.com. Click “Product Information & Documentation” and then “Installation Instructions”.
Sample Pin Code Management Sheets ............19-20 WARNINGS Warning: Changes or modifications to this device not expressly approved by Yale Security, Inc. could void the user's authority to operate the equipment. IMPORTANT: The accuracy of the door preparation is critical for the proper functioning and security of this product.
PREPARE LOCK FOR INSTALLATION Unpack the Lock The lock is packed representative of how it will install on the door. Before installing the lock on the door: A. Inside escutcheon 1. Loosen the screw (Phillips #2) holding the Battery Cover battery cover.
INSTALL LOCK 1. Install bolt in door. NOTE: The bolt must be in a retracted (unlocked) position when installing the lockset. (2) M4 x 25.4mm Attach with two (2) M4 x 25.4mm [8-32 x 1"] screws supplied. [8-32 x 1"] Flat Head Combination Screws 2.
Page 7
CAUTION: Position and bend cable, using care when assembling to ensure that the cable lies against the back recessed area of the inside escutcheon. Label Use the cable hook (Note label on circuit board) as shown in Figures 6A & 6B to prevent binding when installing the escutcheon over the mounting plate.
Page 8
9. Insert four (4) AA alkaline batteries. The lock will flash, beep several times and respond with the vocal prompt: "Welcome to Yale Real Living". When activating the lock for the first time, the lock will adjust for proper handing.
PROGRAMMING Programming Features-Menus-Keys-Definitions ..........9-10 Operation ......................11-14 PROGRAMMING FEATURES - MENU KEYS - DEFINITIONS Outside Inside Phillips Head Screw “ P ” Key Touchscreen (Return to Previous) Battery Cover Network Module Slot Numbers Alkaline Batteries Low Battery Indicator 4 AA Type Lockout Mode Status Indicator Cylinder...
Page 10
Status Indicators Low Battery Warning All Code Lockout Mode Return to previous step Definitions All Code Lockout Mode This feature is enabled by the Master PIN code. When enabled, it restricts all user PIN code access (except the Master PIN code). When the unit is in Lockout Mode, the red locked padlock (see above) will appear on the screen when attempting to enter a PIN code.
OPERATION Lock Activation The touchscreen can be activated in several ways: Touch screen with Press the key to Touch screen with back of hand or activate. fingers spread to fingers to activate. activate. Register Master PIN Code Before Programming* 1. Touch the screen with the back of your hand or fingers to activate 2.
Page 12
To reset the lock to factory default, see the following: Reset Lock to Factory Default The following procedure returns the lock to its factory defaults by deleting all user codes (including the Master PIN code*) and Reset returning all programming features to their original default settings Button Cable (see below).
Page 13
PIN code structure Maximum number of user codes is 250 with Network Module; without Network Module, maximum is 25 user codes. Set Up User PIN Codes User PIN Codes can only be programmed through the Master PIN Code*. 1. Touch the screen with the back of your hand or fingers to activate key.
Page 14
Feature Programming Through Menu Mode Using Master PIN code* 1. Enter the 4-8 digit Master PIN code followed by the key. 2. Enter digit corresponding to the function to be performed followed by the key. Note: If the lock is connected to a network controller, it is recommended that it is programmed through the centralized user interface (PC or hand-held device) to en- sure communication between the lock and the controller unit.
MISCELLANEOUS Hardware Troubleshooting ..................15 Programming Troubleshooting ................16 Installing the Network Module ................17 Replace/Install Cylinder ..................18 Sample Pin Code Management Sheets ............19-20 TROUBLESHOOTING Hardware Troubleshooting Cycle the lock in both the locked and the unlocked positions. If problems are found: Symptom Suggested Action Door is binding...
Programming Troubleshooting Symptom Suggested Action Lock does not respond – door is open The touchscreen will become active when pressed with the back of hand or fingers in at least and accessible. 3 areas simultaneously. Use a larger area of the hand or fingers and verify contact with at least 3 areas. If touchscreen numbers are visible, check to see if they respond when pressed.
Installing the Network Module IMPORTANT: The batteries must be removed prior to removing and/or inserting the network module: • Remove battery cover • Remove batteries • Remove and/or insert network module • Reinstall batteries Use feature programming step 7 (page 14) for enrollment of the Network Module.
How to Replace or Install Cylinder 1. Remove cylinder: A. Remove outside escutcheon from door. B. Remove rubber gasket. C. Insert small flathead screw driver under spring; (gently) lift spring. D. Note: notch on top of cylinder engages spring E. Remove cylinder by pulling (outward) towards outside of door.
PIN CODE MANAGEMENT SAMPLE SHEETS PIN Code Management (No Network Module - Up to 25 Users) Location: Door Number: User User Name User # PIN Code User Type User Name User # PIN Code Master User 13 User 01 User 14 User 02 User 15 User 03...
Page 20
PIN Code Management (With Network Module - Up to 250 Users) - Duplicate Sheet to record entries User Type User Name User # PIN Code User User Name User # PIN Code Master User ___ User ___ User ___ User ___ User ___ User ___ User ___...
