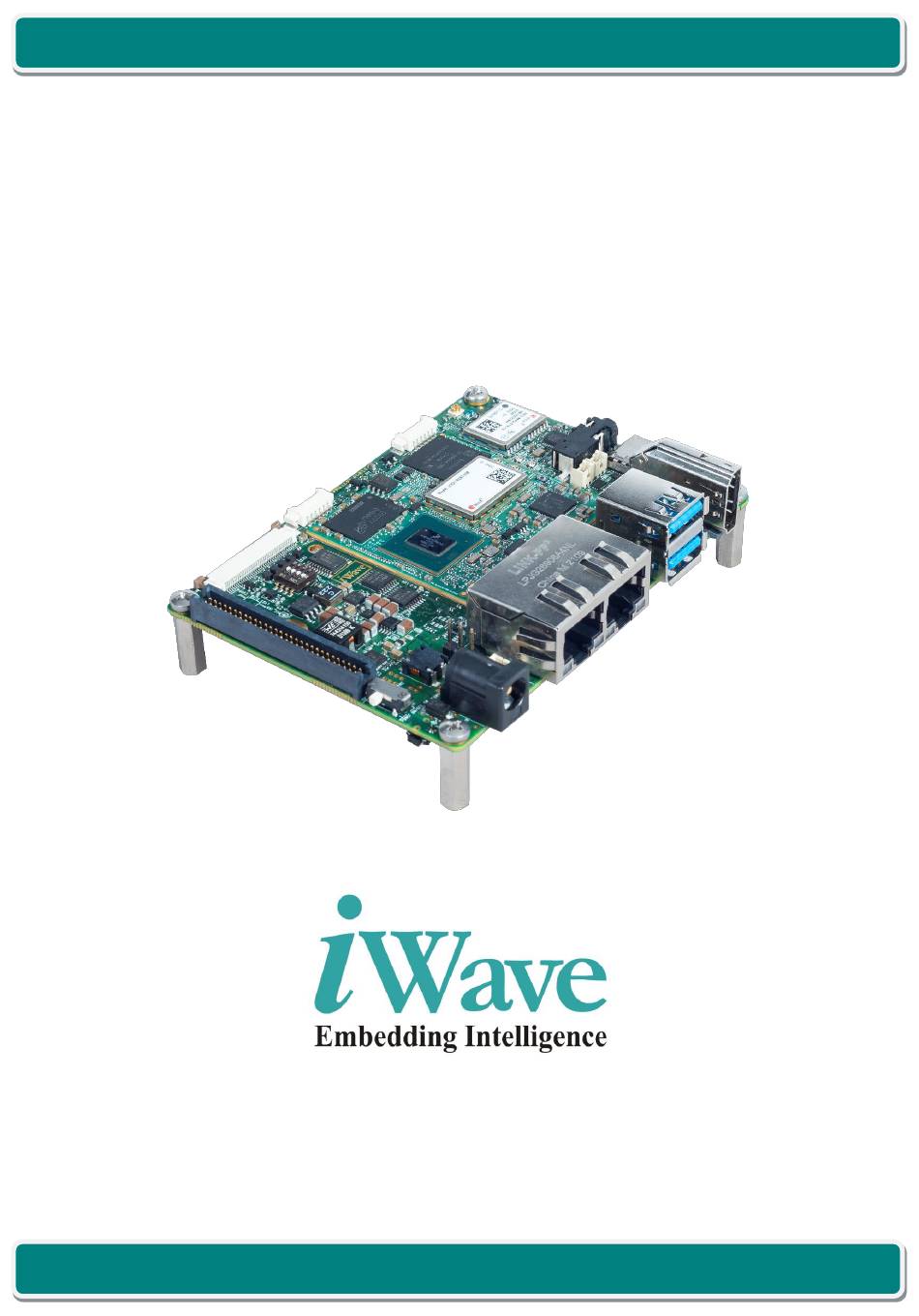

- Page 1 8M Plus Pico ITX SBC Hardware User Guide iW-RainboW-G40S i.MX 8M Plus Pico ITX Single Board Computer Hardware User Guide REL0.2 iWave Systems Technologies Pvt. Ltd. Page 1 of 64...
- Page 2 If you are not the intended recipient (or authorized to receive for the recipient), you are hereby notified that any disclosure, copying distribution or use of any of the information contained within this document is STRICTLY PROHIBITED. Thank you. “iWave Systems Tech. Pvt. Ltd.” REL0.2 iWave Systems Technologies Pvt.
- Page 3 No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted by law no liability (including liability to any person by reason of negligence) will be accepted by iWave Systems, its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.
-
Page 4: Table Of Contents
M.2 Key B Connector ..........................41 2.13 Expansion Connector ..........................46 2.14 Other Features ............................49 2.14.1 Fan Header ............................49 2.14.2 RTC Controller with RTC Battery Header ....................49 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 4 of 64... - Page 5 3.3.1 Heat Sink ............................... 59 3.3.2 RoHS Compliance ........................... 60 3.3.3 Electrostatic Discharge ........................... 60 MechanicalCharacteristics ......................... 61 3.4.1 i.MX 8M Plus Pico ITX SBC Mechanical Dimensions ................. 61 ORDERING INFORMATION ..........................63 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 5 of 64...
- Page 6 Figure 36: i.MX 8M Plus Pico ITX SBC Mechanical Dimensions - Side View 1 .............. 62 Figure 37: i.MX 8M Plus Pico ITX SBC Mechanical Dimensions - Side View 2 .............. 62 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 6 of 64...
- Page 7 Table 19: Power Input Requirement .......................... 57 Table 20: i.MX 8M plus Pico ITX SBC Power Consumption ..................58 Table 21: Environmental Specification........................59 Table 22: Orderable Product Part Numbers ....................... 63 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 7 of 64...
-
Page 8: Introduction
GBE, GNSS module, LVDS and HDMI display connectors are concentrated on the SBC. iWave’s i.MX 8M Plus Pico ITX Single Board computer is rich with i.MX 8M Plus features along with eMMC, Dual Ethernet connector, Dual USB3.0 connector, GNSS module, Wi-Fi & BT module and comes in compact 100mm x 72mm form factor. - Page 9 Serial Audio Interface Secure Digital System on Chip Single Board Computer To Be Defined UART Universal Asynchronous Receiver/Transmitter Universal Serial Bus USB OTG USB On The Go Wi-Fi Wireless Fidelity REL0.2 iWave Systems Technologies Pvt. Ltd. Page 9 of 64...
-
Page 10: Terminology Description
Note: Signal Type does not include internal pull-ups or pull-downs implemented by the chip vendors and only includes the pull-ups or pull-downs implemented on SBC. 1.5 References • IMX8MPXEC_Rev_x.pdf • iMX_8M_Plus_RM_Revx.pdf • OSM Specification V1.0 • iW-RainboW-G40M_i.MX_8M_Plus_OSM_LGA_Module-HardwareUserGuide-RX.0-RELx.ypdf REL0.2 iWave Systems Technologies Pvt. Ltd. Page 10 of 64... -
Page 11: Important Note
In this signal, BCONFIG_0 is the GPIO functionality which we are using and GPIO1_9 is the GPIO number. Note: The above naming is not applicable for other signals which are not connected to CPU. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 11 of 64... -
Page 12: Architecture And Design
This section provides detailed information about i.MX 8M Plus Pico ITX SBC features and Hardware architecture with high level block diagram. 2.1 i.MX 8M Plus Pico ITX SBC Block Diagram iW-RainboW-G40S - i.MX 8M Plus Pico ITX SBC Block Diagram Debug UART x 1 USB_OTG1 i.MX 8M Plus SoC... -
Page 13: I.mx 8M Plus Pico Itx Sbc Features
CAN Header x 1 Audio/Video Features • HDMI Output through HDMI (Type A) Connector • 40pin, LVDS Display Connector • I2S Audio Codec • 3.5mm Audio IN/OUT • Speaker out header REL0.2 iWave Systems Technologies Pvt. Ltd. Page 13 of 64... - Page 14 Q/QL/D/DL/S/SL is used to represent either of one based on SBC Part Number. Memory Size will differ based on iWave’s SBC Product Part Number. In default configuration, UART1 interface of i.MX 8M Plus is connected to the Bluetooth module. UART with CTS and RTS in the Expansion connector can be supported, if Bluetooth is not supported.
-
Page 15: I.mx 8M Plus Soc
2.3 i.MX 8M Plus SoC iW-RainboW-G40S Pico ITX SBC can support i.MX 8M Plus SoCs from NXP. The i.MX 8M Plus Family consists of three processors: i.MX 8M Plus Quad, I.MX 8M Plus Quad Lite & i.MX 8M Plus Dual. The Major Difference between i.MX 8M Plus SoCs are: •... -
Page 16: Pmic
I2C after start up offering flexibility for different system states. The PCA9450C PMIC comes in 56pin 7x7 QFN Package and is placed on the Top side of the SBC. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 16 of 64... -
Page 17: Memory
8M Plus SoC to support LPDDR4 up to 2GHz. LPDDR4 part U12 is placed on Top side of the SBC. The RAM size can be expandable up to maximum of 8GB (if chips are available). To customize the LPDDR4 memory size, contact iWave. -
Page 18: Boot Media Setting
BOOT_MODE [1:0] as well as the state of various eFUSEs and/or GPIO settings to determine the boot flow behaviour of the device. Note: Contact iWave if different boot media support is required other than eMMC. Figure 4: Boot Media Switch... -
Page 19: Network & Communication
J5 and J7. J3 connector is optionally provided to support Bluetooth independently in JODY-W3. Note: In default configuration, 802.11ax (Wi-Fi 6) is not supported, but 802.11ax can be supported by changing Wi-Fi module from JODY-W2 to JODY-W3 and some additional changes. Contact iWave Support Team for further information. REL0.2 iWave Systems Technologies Pvt. -
Page 20: Gigabit Ethernet Interface
AR8031 also supports IEEE 802.3az EEE standard (Energy Efficient Ethernet) and Atheros proprietary Smart EEE. The Smart EEE allows legacy MAC/SoC devices without 802.3az support to function as a complete 802.3az system. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 20 of 64... -
Page 21: Usb3.0 Interface
USB3.0 device takes more than 900mA current, this power switch limits the current to constant mode and sends the over current indication signal to the over current indicator pin. This USB3.0 connector is physically located at the top of the board as shown below. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 21 of 64... -
Page 22: Usb3.0 Host Port
900mA. If connected USB3.0 device takes more than 900mA current, this power switch limits the current to constant mode and sends the over current indication signal to the over current indicator pin. This USB3.0 connector is physically located at the top of the board as shown below. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 22 of 64... -
Page 23: Usb2.0 Otg Interface
M.2 key B connector. USB Interface at M.2 Connector or OTG connector can be selected by changing the position of 2 bit of switch(SW1). This USB2.0 OTG connector is physically located at the top of the board as shown below. Figure 9: USB OTG Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 23 of 64... -
Page 24: Gnss Module
The i.MX 8M Plus Pico ITX SBC supports a Control Area Network (CAN) Port. FLEXCAN1 of the SoC is connected to MCP2562FD-E/SN CAN Transceiver and CANL & CANH of the transceiver are connected to J23 connector. The Connector is placed on Bottom Side of the Board. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 24 of 64... -
Page 25: Figure 11: Can Header
Termination VCC_5V VCC_5V_CAN0 O, 5V Power 5V Supply Voltage. VCC_12V CANL CAN0_L IO, DIFF CAN Low-Level Voltage I/O Power Ground. CANH CAN0_H IO, DIFF CAN High-Level Voltage I/O Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 25 of 64... -
Page 26: Serial Interface Features
RS232 Signals are connected from MAX3232 to RS232 Header (J1), which is physically located at the top of the board as shown below. Number of Pins: 6 Connector Part number:532610671 from Molex REL0.2 iWave Systems Technologies Pvt. Ltd. Page 26 of 64... -
Page 27: Figure 13: Rs232 Header
VCC_3V3 O, 3.3V Power 3.3V Supply Voltage. RS232_RXD I, RS232 RS232 interface Receive signal. RS232_TXD O, RS232 RS232 interface Transmit signal. RS232_RTS I, RS232 RS232 interface Ready to Send signal. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 27 of 64... -
Page 28: Audio/Video Features
MIPI CSI1 differential data lane 0 positive. CAM0_CSI_D0- CSI_DATA0_N I, MIPI MIPI CSI1 differential data lane 0 negative. Power Ground. CAM0_CSI_D1+ CSI_DATA1_P I, MIPI MIPI CSI1 differential data lane 1 positive. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 28 of 64... - Page 29 CSI_2_CLOCK_P(VD_15) I, MIPI MIPI CSI2 differential Clock positive CAM1_CSI_CLK- CSI_2_CLOCK_N(VD_14) I, MIPI MIPI CSI2 differential Clock negative. Power Ground. CAM1_CSI_D0+ CSI_2_DATA0_P(VD_17) I, MIPI MIPI CSI2 differential data lane 0 positive. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 29 of 64...
-
Page 30: Table 8: Mipi Csi 40 Pin Connector Pinouts(Optional)
I, 1.8V CMOS/10K MIPI Camera Reset signal CAM0_CSI_D3+ CSI_DATA3_P I, MIPI MIPI CSI1 differential data lane 3 positive. CAM0_CSI_D3- CSI_DATA3_N I, MIPI MIPI CSI1 differential data lane 3 negative. Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 30 of 64... - Page 31 I, MIPI MIPI CSI2 differential data lane 1 positive. CAM1_CSI_D1- CSI_2_DATA1_N(VD_18) I, MIPI MIPI CSI2 differential data lane 1 negative. Power Ground. CAM0_GPIO USB_C_SW(GPIO_B_3) I, 1.8V CMOS/10K Note: Optionally connected REL0.2 iWave Systems Technologies Pvt. Ltd. Page 31 of 64...
-
Page 32: I2S Audio Interface
Audio Amplifier. The Output signals from the Amplifier is connected to two Speaker Headers (J10) and (J11). The Speaker Headers is physically located at the top of the board as shown below. Number of Pins : 2 Connector Part :10114829-10102LF from Molex REL0.2 iWave Systems Technologies Pvt. Ltd. Page 32 of 64... -
Page 33: Hdmi Interface
HDMI TX PHY of the i.MX 8M Plus SoC supports video pixel rated from 25MHz up to 297MHz. This HDMI output connector (J15) is physically located on top of the board as shown below. Figure 17: HDMI Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 33 of 64... -
Page 34: Lvds Interface
Pin Name Signal Name Description Pin Number Termination Power 3.3V Supply Voltage VDD1 VCC_3V3 Power 3.3V Supply Voltage VDD2 VCC_3V3 LVDS0_D0_N/E28 O, LVDS LVDS0 differential data Lane 0 LV0N- LVDS_CH0_N negative REL0.2 iWave Systems Technologies Pvt. Ltd. Page 34 of 64... - Page 35 LCD0_BKLT_EN(NA NAND_DATA01/ O, 3.3V LCD Backlight Enable LED_EN ND_DATA01_GPIO 3_7) Power 12V Supply Voltage LED_VCC1 VCC_12V_LVDS Power 12V Supply Voltage LED_VCC2 VCC_12V_LVDS Power 12V Supply Voltage LED_VCC3 VCC_12V_LVDS BIST NC10 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 35 of 64...
-
Page 36: Usb Touch Connector
VBUS_HOST_TP 5V, Power Supply Voltage. USB_HUB3OUT_DM IO, USB Differential USB Negative. Differential USB Positive. USB_HUB3OUT_DP IO, USB NC. USB_ID pin is available optionally. Power Ground. NC. USB_B_VBUS is available optionally. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 36 of 64... -
Page 37: 4-Lane Mipi Dsi Display Connector
Power 3.3V Supply Voltage. VBAT VCC_3V3_TFT0 Power 3.3V Supply Voltage. VBAT VCC_3V3_TFT0 Power 3.3V Supply Voltage. VBAT VCC_3V3_TFT0 Power 3.3V Supply Voltage. VBAT VCC_3V3_TFT0 Power 3.3V Supply Voltage. Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 37 of 64... - Page 38 I2C Data for Capacitive 4.7K PU Touch TP_SCL I2C2_SCL I2C2_SCL/AH6 O, 1.8V CMOS, I2C Clock for Capacitive 4.7K PU Touch TP_RESET OSM_GPIO_A_1(SA SAI1_TXD7/AJ13 O, 1.8V CMOS, RESET for Capacitive Touch I1_TXD7_GPIO4_19 10K PU REL0.2 iWave Systems Technologies Pvt. Ltd. Page 38 of 64...
-
Page 39: 2-Lane Mipi Dsi Display Connector (Optional)
O, MIPI data lane 1negative DATA1+ MIPI_DSI_DATA1_P MIPI_DSI1_D1_P/A17 O, MIPI MIPI DSI differential data lane 1 positive Ground. GND2 Power MIPI_DSI1_CLK_N/B18 MIPI DSI differential CLK- MIPI_DSI_CLK_N O, MIPI Clock negative REL0.2 iWave Systems Technologies Pvt. Ltd. Page 39 of 64... - Page 40 GND4 Power Ground. I2C Clock. I2C1_SCL/AC8 I,3.3V I2C1_SCL CMOS/4.7K I2C Data I2C1_SDA/AH7 IO,3,3V I2C1_SDA CMOS/4.7K GND5 Power Ground. 3.3V Supply Voltage. VCC1 VCC_3V3 Power 3.3V Supply Voltage. VCC2 VCC_3V3 Power REL0.2 iWave Systems Technologies Pvt. Ltd. Page 40 of 64...
-
Page 41: Key B Connector
O, 3.3V CMOS M.2 Wireless Disable Signal. 10K PU (O)(0/3.3V) O1_IO9) USB_D- USB_HUB2OUT_DM IO, USB USB2.0 PortA Data Minus. GPIO9(LED1#/DAS_DSS#) M.2_LED O, 3.3V CMOS Provide status indicators via LED. (I)(0/3.3V) Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 41 of 64... - Page 42 M2_UIM_CLK I, SIM SIM Card Clock Signal. Power Ground. UIM-DATA (I/O) M2_UIM_DAT IO, SIM SIM Card Data IO Signal. PETN1/USB3.1-TX-/SSIC- UIM-PWR (I) M2_UIM_PWR O, SIM Power SIM Card Power. PETP1/USB3.1-TX+/SSIC- REL0.2 iWave Systems Technologies Pvt. Ltd. Page 42 of 64...
- Page 43 IO, 1.8V CMOS Optionally I2C2_SDA is connected. Power Ground. MFG_CLOCK I2C2_SCL O, 1.8V CMOS Optionally I2C2_SCL is connected. ANTCTL0 (I)(0/1.8 V) COEX3 (I/O)(0/1.8V) ANTCTL1 (I)(0/1.8 V) COEX_TXD (O)(0/1.8V) ANTCTL2 (I)(0/1.8 V) REL0.2 iWave Systems Technologies Pvt. Ltd. Page 43 of 64...
-
Page 44: Figure 23: M.2 Module Insertion Guide
Step 2: Rotate the Module to 25 Degree and insert until the bottom of the module surface reaches the ramp. Step 3: Rotate the Module to horizontal Position by hand Step 4: Fix the module with M3 x4 Screw Figure 23: M.2 Module Insertion Guide REL0.2 iWave Systems Technologies Pvt. Ltd. Page 44 of 64... -
Page 45: Figure 24: Nano Sim Connector
The i.MX 8M Plus Pico ITX SBC supports a Nano SIM connector to support the WWAN M.2 Modules. The Nano SIM connector (J27) is physically located on the bottom of the board. Figure 24: Nano SIM Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 45 of 64... -
Page 46: Expansion Connector
LVDS_B_LANE1_N LVDS1_D1_N /B27 O, LVDS LVDS Channel 1 negative UART_B_TX UART1_TXD/AJ3 O, 1.8V CMOS Optional By default, connected to Wi-Fi BT module LVDS_B_LANE1_P LVDS1_D1_P/A27 O, LVDS LVDS Channel 1 positive REL0.2 iWave Systems Technologies Pvt. Ltd. Page 46 of 64... - Page 47 By default, used as PWM for LVDS display SDIO_B_D1 SD1_DATA1/Y28 O, 1.8V Optional By default, connected to WI-FI BT module LVDS_BL_EN NAND_DATA01/L25 I, 1.8V LVDS back light Enable SDIO_B_D2 SD1_DATA2/V29 I, 1.8V Optional REL0.2 iWave Systems Technologies Pvt. Ltd. Page 47 of 64...
- Page 48 12V Supply Voltage PIN59 Connected to ground Power Ground Note: Refer GPIO Column under “i.MX 8M plus Pin Multiplexing on Expansion Connector for details on GPIO options available from Expansion connector. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 48 of 64...
-
Page 49: Other Features
Power Ground. Note: Contact iWave support team if 12V Power Support is required for FAN Header. 2.14.2 RTC Controller with RTC Battery Header The i.MX 8M Plus Pico ITX SBC supports external RTC Controller “PCF85263” for Real time clock support. This external RTC Controller IC (U9) is connected to i.MX 8M Plus SoC through I2C3 Interface and operates at 1.8V voltage level. -
Page 50: Jtag Interface
JTAG Header (J31) is physically located on bottom side of the SBC. Number of Pins - 20 Connector Part - 62132021021 from Wruth Electronics. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 50 of 64... -
Page 51: Figure 28: Jtag Header
JTAG test data output. Power Ground. JTAG_RESETB I, 3.3V CMOS/ Reset input. 10K PU Power Ground. 10K pull up is provided. Power Ground. 10K pull down is provided. Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 51 of 64... -
Page 52: Power On/Off Switch
The i.MX 8M Plus Pico ITX SBC Support Push Button Switch (SW4) to reset the i.MX 8M Plus CPU. Reset signal is directly connected from reset push button switch. This Reset push button Switch (SW4) is physically located at the bottom of the board as shown below. Figure 30: Reset Switch REL0.2 iWave Systems Technologies Pvt. Ltd. Page 52 of 64... -
Page 53: Cpu On/Off Switch
ON/OFF is directly connected from ON/OFF push button Switch. This ON/OFF push button Switch (SW2) is physically located at the bottom of the board as shown below. Figure 31: CPU ON/OFF Switch REL0.2 iWave Systems Technologies Pvt. Ltd. Page 53 of 64... -
Page 54: I.mx 8M Plus Pin Multiplexing On Expansion Connector
Connector and with selected pin function highlighted and available alternate functions. This table has been prepared by referring NXP’s i.MX 8M plus Hardware User’s Manual. Important Note: It is strongly recommended to use the pin function same as selected in SBC for iWave’s BSP reusability. Table 18: i.MX 8M Plus CPU IOMUX for Expansion Connector interfaces Exp. - Page 55 UART1_CTS_B GPT1_CAPTURE2 CAN2_TX GPIO5_IO26 LVDS1_TX3_N LVDS1_TX3_P LVDS1_TX1_N LVDS1_TX1_P LVDS1_TX0_N LVDS1_TX0_P LVDS1_TX2_P LVDS 1 LVDS1_TX2_N LVDS1_CLK_P LVDS1_CLK_N SPDIF1_OUT PWM3_OUT I2C5_SCL GPT1_COMPARE1 FLEXCAN1_TX GPIO5_IO3 AE18 SPDIF1_IN PWM2_OUT I2C5_SDA GPT1_COMPARE2 FLEXCAN1_RX GPIO5_IO4 AD18 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 55 of 64...
- Page 56 GPIO3_IO21 ISP_PRELIGHT_TRIG_ CORESIGHT_ UART4_TX NAND_DATA01 QSPI_A_DATA1 SAI3_TX_SYNC GPIO3_IO7 TRACE05 EARC_AUX AJ23 EARC EARC_N_HPD AH22 PDM_BIT_STR SAI5_RX_DATA3 SAI1_TX_DATA5 SAI1_TX_SYNC SAI5_TX_DATA0 FLEXCAN2_X AE14 EAM3 GPIO3_IO24 SAI5_MCLK SAI1_TX_BCLK PWM1_OUT I2C5_SDA GPIO3_IO25 FLEXCAN2_X AF14 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 56 of 64...
-
Page 57: Technical Specification
VCC_12V 11.75V 12.25V ±50mV VRTC_3V0 2.8V 3.3V ±20mV ¹ The i.MX 8M Plus Pico ITX SBC uses this voltage as backup power source to RTC controller when VCC_12V is OFF. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 57 of 64... -
Page 58: Power Consumption
System Idle Mode. VCC_ 12V 0.176A/2.112W Deep Sleep Mode. VCC_ 12V 0.08A/0.96W ¹ Power consumption measurements have been done in iWave’si.MX 8Mplus based Pico ITX SBC with iWave‘s iW-PRGJJ- SC-01-R1.0-REL1.0-Linux 5.4.70 BSP. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 58 of 64... -
Page 59: Environmentalcharacteristics
CPU. Note: iWave supports Heat Sink Solution for i.MX 8M Plus Pico ITX SBC. For more information on Heat Sink contact iWave support team. Do not Power On the i.MX 8M Plus Pico ITX SBC without a proper thermal solution. -
Page 60: Rohs Compliance
3.3.3 Electrostatic Discharge iWave’s i.MX 8M Plus Pico ITX SBC is sensitive to electro static discharge and so high voltages caused by static electricity could damage some of the devices on board. It is packed with necessary protection while shipping. Do not open or use the SBC except at an electrostatic free workstation. -
Page 61: Mechanicalcharacteristics
JTAG connector (5.91mm) followed by M.2 SMT spacer (3.99mm). Figure 34: i.MX 8M Plus Pico ITX SBC Mechanical Dimensions Top View Figure 35: i.MX 8M Plus Pico ITX SBC Mechanical Dimensions Bottom View REL0.2 iWave Systems Technologies Pvt. Ltd. Page 61 of 64... -
Page 62: Figure 36: I.mx 8M Plus Pico Itx Sbc Mechanical Dimensions - Side View 1
8M Plus Pico ITX SBC Hardware User Guide Figure 36: i.MX 8M Plus Pico ITX SBC Mechanical Dimensions - Side View 1 Figure 37: i.MX 8M Plus Pico ITX SBC Mechanical Dimensions - Side View 2 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 62 of 64... -
Page 63: Ordering Information
The below table provides the standard orderable part numbers for different i.MX 8M Plus Pico ITX SBC variations. Please contact iWave for orderable part number of higher RAM memory size or Flash memory size SBC configurations. Also, if the desired part number is not listed in below table or if any custom configuration part number is required, please contact iWave. - Page 64 8M Plus Pico ITX SBC Hardware User Guide REL0.2 iWave Systems Technologies Pvt. Ltd. Page 64 of 64...
