Aktakom ATE-1033 Operation Manual

Anemometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

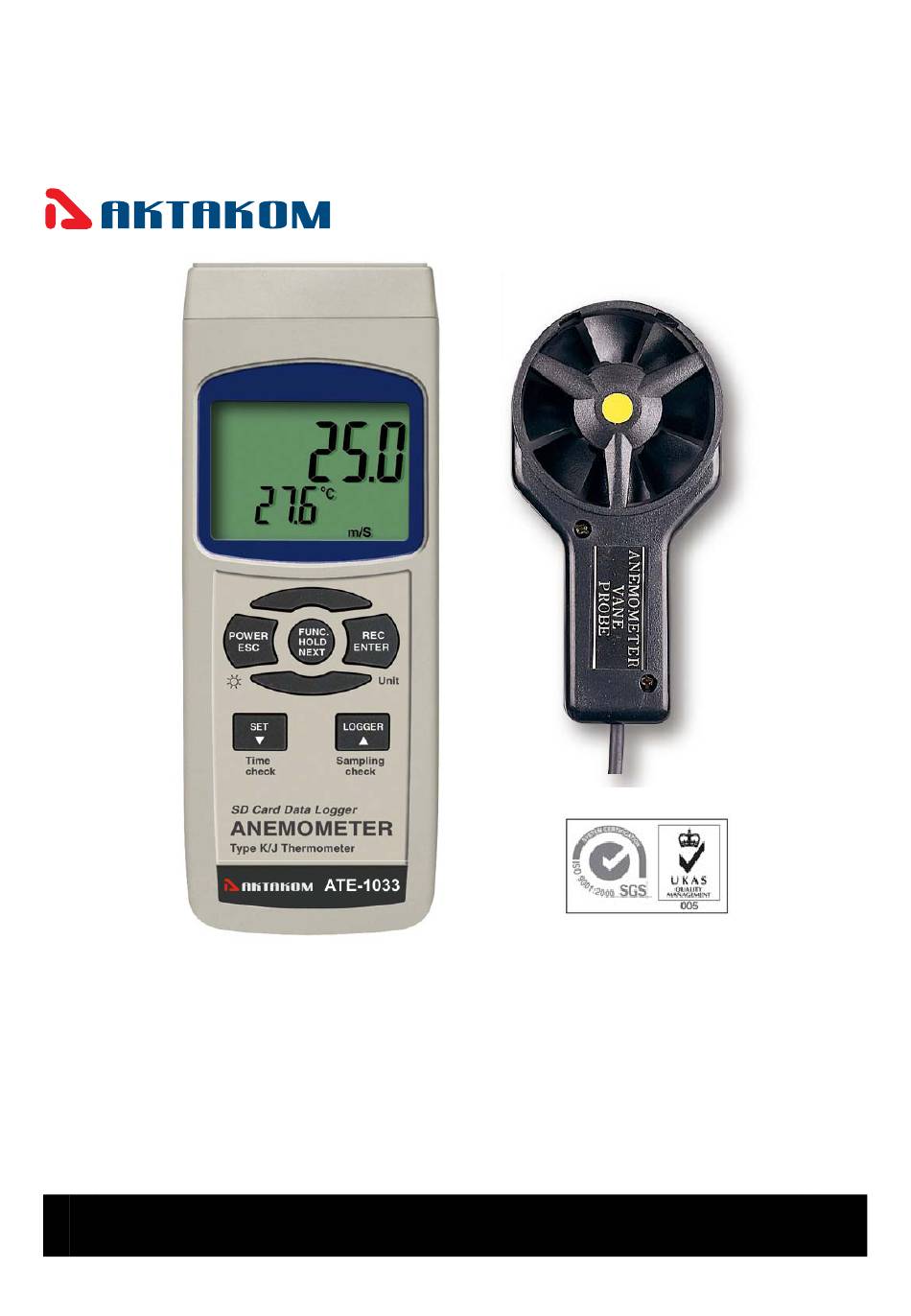

SD card real time datalogger
+ Type K/J thermometer
ANEMOMETER
Your
purchase
DATALOGGER marks a step forward for you into the field of
precision measurement. Although this METER is a complex and
delicate instrument, its durabl
read the following instructions carefully and always keep this
manual within easy reach.
OPERATION MANUAL
www.tmatlantic.com
Model : ATE-1033
of
this
ANEMOMETER
e structure developed. Please
with
SD
CARD

Advertisement

Table of Contents
loading

Related Manuals for Aktakom ATE-1033

Summary of Contents for Aktakom ATE-1033

  • Page 1 SD card real time datalogger + Type K/J thermometer ANEMOMETER Model : ATE-1033 Your purchase this ANEMOMETER with CARD DATALOGGER marks a step forward for you into the field of precision measurement. Although this METER is a complex and delicate instrument, its durabl e structure developed.
  • Page 2 TABLE OF CONTENTS 1. FEATURES................1 2. SPECIFICATIONS..............2 3. FRONT PANEL DESCRIPTION..........5 3-1 Display................5 3-2 Power Button ( ESC, Backlight Button )......5 3-3 Hold Button ( Function Button, Next Button )...... 5 3-4 REC Button ( Enter Button, Unit Button )......5 3-5 SET Button ( Button, Time check Button )......
  • Page 3 1. FEATURES * Air velocity : m/S, Ft/min, Km/h, Knots, Mile/h, * Air temperature ( ℃ ℉ * Low-friction ball vane wheels make sure high accuracy in high & low velocities. * Type K, Type J thermocouple thermometer. * Air Temp. used thermistor sensor, fast response time. * Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.

  • Page 4: Specifications

    2. SPECIFICATIONS 2-1 General Specifications Circuit Custom microprocessor LSI circuit. Display LCD size : 52 mm x 38 mm LCD with green backlight ( ON/OFF ). Air velocity: Measurement Unit m/S (meters per second) Km/h ( kilometers per hour ) Ft/min ( FPM, feet per minute ) Knots ( nautical miles per hour ) Mile/h ( mph, miles per hour )
  • Page 5 Temperature Automatic temp. compensation for the Compensation Anemometer function and the type K/J thermometer. Data Hold Freeze the display reading. Memory Recall Maximum & Minimum value. Sampling Time Approx. 1 second. of Display Data Output RS 232/USB PC computer interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.

  • Page 6: Air Temperature

    Optional SD Card ( 1 G ) Accessories SD Card ( 2 G ) Type K thermocouple probe. AC to DC 9V adapter. USB cable, USB-01. RS232 cable, UPCB-02. Data Acquisition software,SW-U801-WIN. 2-2 Electrical Specifications (23± 5 ℃ Air velocity Measurement Range Resolution Accuracy 0.4 - 30.0 m/s...

  • Page 7: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-2 Power Button ( ESC, Backlight Button ) 3-3 Hold Button ( Function Button, Next Button ) 3-4 REC Button ( Enter Button, Unit Button ) 3-5 SET Button ( Button, Time check Button ) ▼...

  • Page 8: Measuring Procedure

    4. MEASURING PROCEDURE 4-1 Function selection 1) Turn on the meter by pressing the " Power Button " ( 3-2, Fig. 1 ) momentarily. Pressing the " Power Button " ( 3-2, Fig. 1 ) continuously and > 2 seconds again will turn off the meter.
  • Page 9 3) Air velocity/Temp. measurement a. Function select to " Air velocity/Temp. " measurement. b. Plug the " Probe Plug " ( 3-17, Fig. 1 ) into the " Probe Input Socket " ( 3-7, Fig. 1 ). Power on the meter by pressing the " Power Button " ( 3-2, Fig.
  • Page 10 4) Type K/J thermometer a. Function select to " Type K/J thermometer " b. Not install the " Probe Plug " ( 3-17, Fig. 1 ) into the " Probe Input Socket " ( 3-7, Fig. 1 ) c. Plug the Thermocouple Temp. Probe ( Type K Temp. probe pr Type J Temp.

  • Page 11: Data Logger

    2) With the " REC. " symbol on the display : a) Press the " REC Button " ( 3-4, Fig. 1 ) once, the " REC. MAX. " symbol along with the maximum value will appear on the display. If intend to delete the maximum value, just press the "...
  • Page 12 b. SD card Format If SD card just the first time use into the meter, it recommend to make the " SD card Format " at first. , please refer chapter 7-8 ( page 19 ). c. Time setting If the meter is used at first time, it should to adjust the clock time exactly, please refer chapter 7-1 ( page 16 ).
  • Page 13 b. Pause the datalogger During execute the Datalogger function , if press the " Logger Button " ( 3-6, Fig. 1 ) once will pause the Datalogger function ( stop to save the measuring data into the memory circuit temporally ). In the same time the text of "...
  • Page 14 Remark : During execute the Manual Datalogger, press the " ▼ Button " ( 3-5, Fig, 1 ) the lower no. ( position no. ) will flashing. It can use the " Button " ( 3-6, Fig. 1) or " ▲...
  • Page 15 2) If the first time to execute the Datalogger, under the route AMA01\, will generate a new file name AMA01001.XLS. After exist the Datalogger, then execute again, the data will save to the AMA01001.XLS until Data column reach to 30,000 columns, then will generate a new file, for example AMA01002.XLS 3) Under the folder AMA01\, if the total files more than 99 files, will generate anew route, such as...
  • Page 16 6. Saving data from the SD card to the computer ( EXCEL software ) 1) After execute the Data Logger function, take away the SD card out from the " SD card socket " ( 3-9, Fig. 1 ). 2) Plug in the SD card into the Computer's SD card slot ( if your computer build in this installation ) or insert the SD card into the "...

  • Page 17: Advanced Setting

    EXCEL graphic screen ( for example ) 7. ADVANCED SETTING Under do not execute the Datalogger function, press the " SET Button " ( 3-5, Fig. 1 ) continuously at least two seconds will enter the " Advanced Setting " mode. then press the "...

  • Page 18: Set Clock Time ( Year/Month/Date, Hour/Minute/ Second )

    Remark : During execute the " Advanced Setting " function, if press " Esc Button " ( 3-2, Fig. 1 ) once will exit the " Advanced Setting " function, the LCD will return to normal screen. 7-1 Set clock time ( Year/Month/Date, Hour/Minute/ Second ) When the lower display show "...
  • Page 19 7-2 Decimal point of SD card setting The numerical data structure of SD card is default used the " . " as the decimal, for example "20.6" "1000.53" . But in certain countries ( Europe ...) is used the " , " as the decimal point, for example "...
  • Page 20 7-4 Set beeper sound ON/OFF When the lower display show " bEEP " 1) Use the " Button " ( 3-6, Fig. 1 ) or " Button " ▲ ▼ ( 3-5, Fig. 1 ) to select the upper value to " yES " or "...
  • Page 21 7-6 Select the Temp. unit to ℃ ℉ When the lower display show " t-CF " 1) Use the " Button " ( 3-6, Fig. 1 ) or " Button " ▲ ▼ ( 3-5, Fig. 1 ) to select the upper Display text to " C " or "...

  • Page 22: Power Supply From Dc Adapter

    2) If select the upper to " yES ", press the " Enter Button " ( 3-4, Fig. 1 ) once again, the Display will show text " yES Enter " to confirm again, if make sure to do the SD memory card format, then press "...

  • Page 23: System Reset

    10. SYSTEM RESET If the meter happen the troubles such as : CPU system is hold ( for example, the key button can not be operated... ). Then make the system RESET will fix the problem. The system RESET procedures will be either following method : During the power on, use a pin to press the "...
  • Page 24 Meter (9W 'D" Connector) Center Pin......Pin 4 (3.5 mm jack plug) Ground/shield..... Pin 2 2.2 K resistor Pin 5 The 16 digits data stream will be displayed in the following format : D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Each digit indicates the following status : End Word D1 &...

  • Page 25: Optional Type K Temp. Probe

    RS232 FORMAT : 9600, N, 8, 1 Baud rate 9600 Parity No parity Data bit no. 8 Data bits Stop bit 1 Stop bit 12. Optional Type K Temp. probe (Type K) TP-01 * Max. short-tern operating Temperature: 300 (572 ℃...
  • Page 26 13. PATENT The meter ( SD card structure ) already get patent or patent pending in following countries : Germany Nr. 20 2008 016 337.4 JAPAN 3151214 TAIWAN M 358970 M 359043 CHINA ZL 2008 2 0189918.5 ZL 2008 2 0189917.0 Patent pending...
