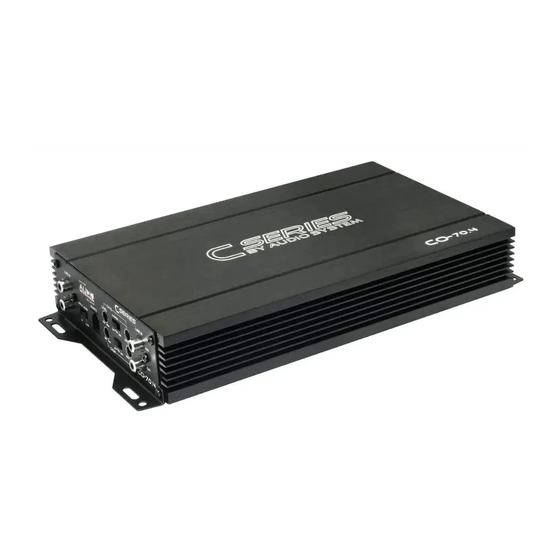

High-Performance
Car- amplifier
owner's manual
C0-100.2
C0- 70. 4
C0- 75. 4 24 v
designed and engineered by audio system
Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C0-70.4 and is the answer not in the manual?

Questions and answers

Related Manuals for Audio System C0-70.4

Summary of Contents for Audio System C0-70.4

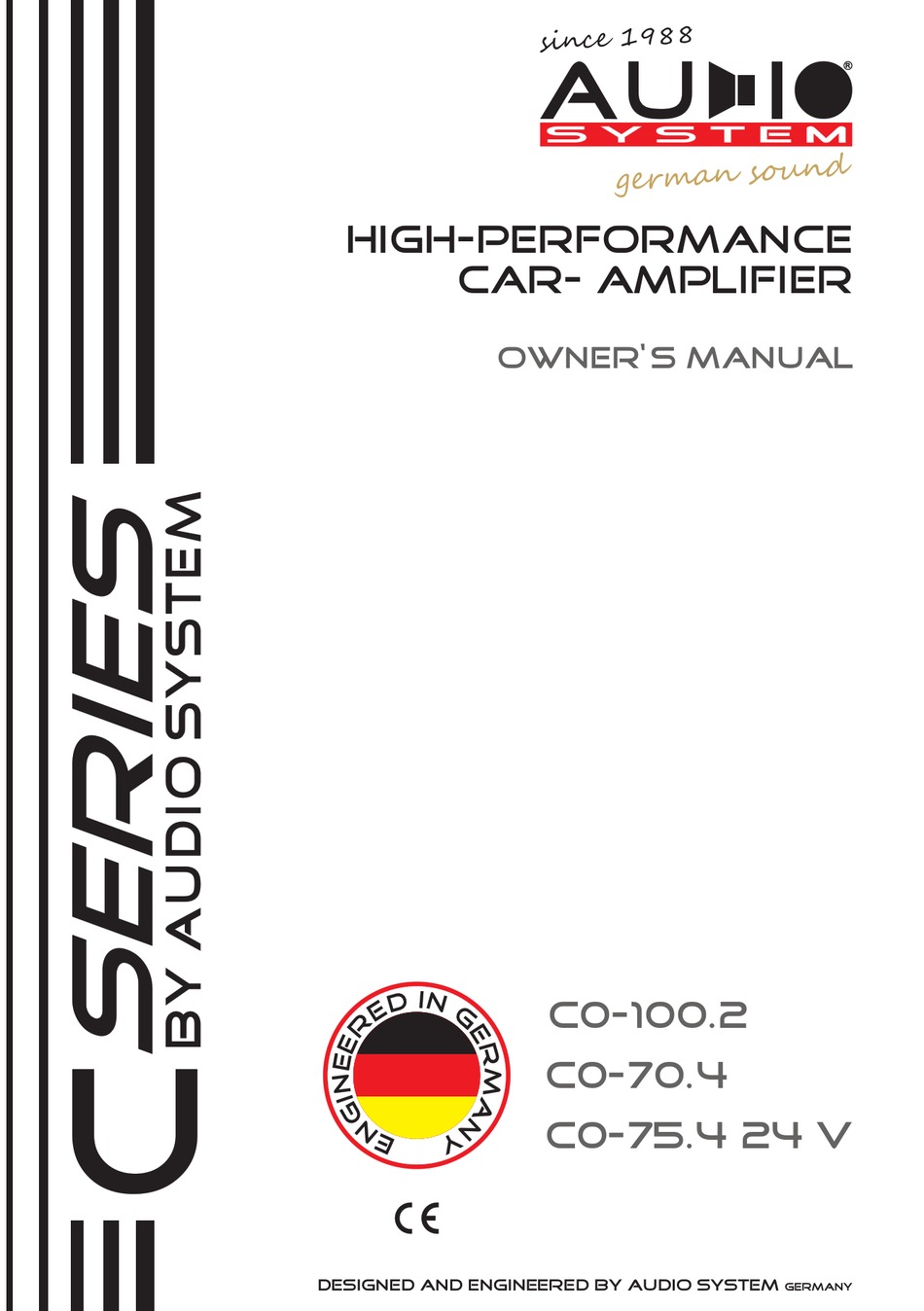

  • Page 1 1 9 8 8 g e r m a n s o u n d High-Performance Car- amplifier owner‘s manual C0-100.2 C0- 70. 4 C0- 75. 4 24 v designed and engineered by audio system Germany...
