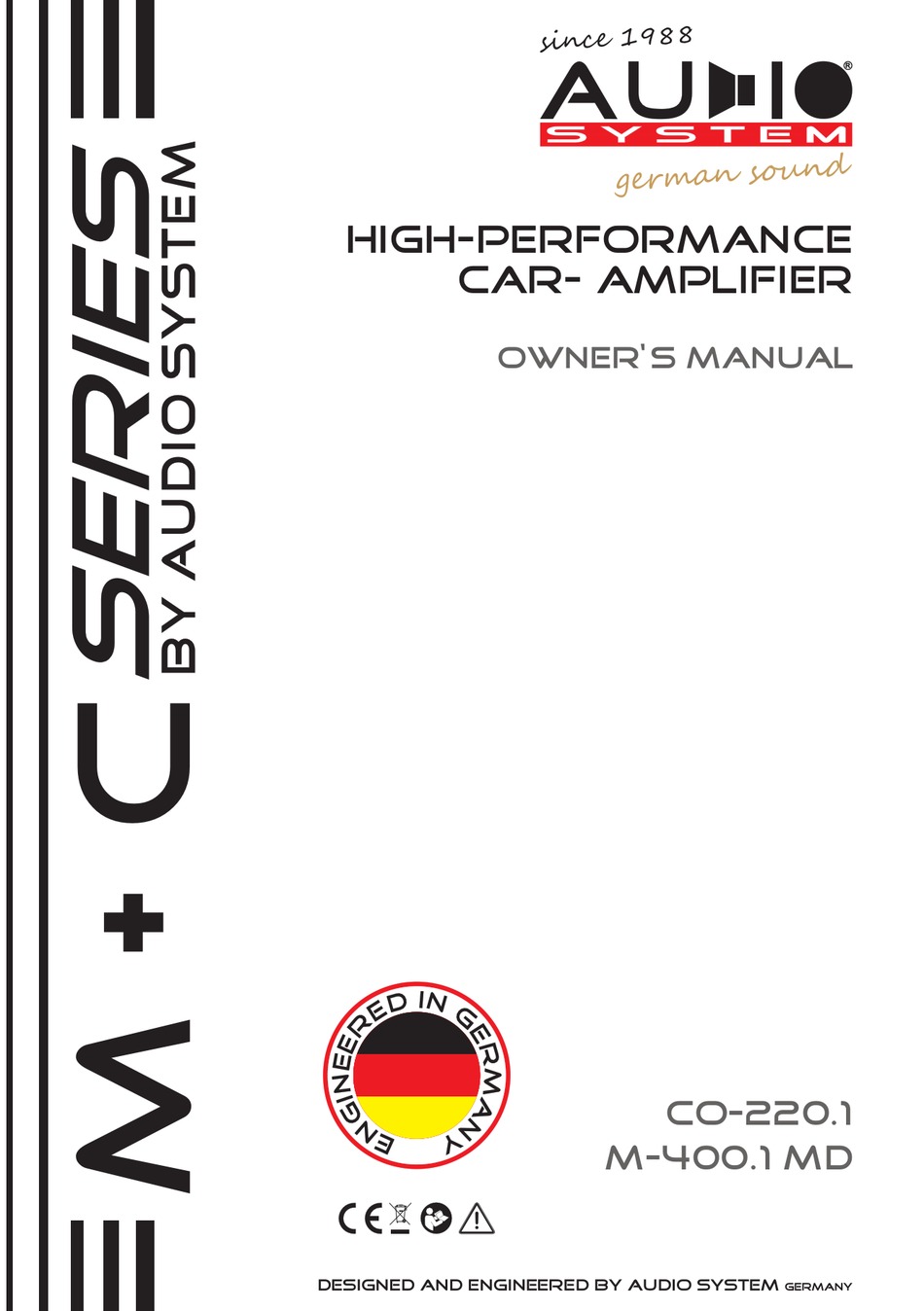

- Page 1 1 9 8 8 g e r m a n s o u n d High-Performance Car- amplifier owner‘s manual co-220.1 M-400.1 MD designed and engineered by audio system Germany...
- Page 2 features Congratulation on your purchase of your new m + c-Series amplifier. IMPORTANT: Before installation your power amplifier, we recommend to read the owner´s manual carefully and to follow the instructions regarding connection and fitting exactly. ATTENTION: Pay attention to advices and instructions of the car manufacturer. IMPORTANT: Your proof of purchase is evidence of warranty claim for repair or replacement.
-
Page 3: Power Connection
power connection M-400.1 Md / CO-220.1 1. Battery disconnection: orange First, disconnect the power supply of the vehicle by removing the ground cable of the battery. 2. Ground connection: Remote connection Connect the GND (ground) connection fuse of the amplifier with the car chassis. Keep this cable as short as possible (not GROUND longer than 50 cm) and use a suitable... -
Page 4: Rca Connection
Optional a wire remote controller RTC can be installed to adjust the output level. In this regard, AUDIO SYSTEM recommends to adjust your amplifier through a specialized germany service center, dealer or a specialist. -
Page 5: Speaker Connection
speaker connection M-400.1 MD / co-220.1 MONO Speaker Impedance 2 ~ 8 Ohm BLACK Please note that this units are mono block units and have only one channel. Connecting to either the positive or negative of either of the two connections will end in the same result as both positive connections (or both negative connections) are tied together inside the unit. -
Page 6: Troubleshooting
trouble shooting This power amplifier is featured with an efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and DC at the loudspeaker output. Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off. -
Page 7: Specifications
1x 25 A (intern) Input Sensitivity 200 mV ~ 6 V (+/- 5%) Dimensions 68(D) x 130(L) si nc e 19 88 ge rm a n so u n d Audio System Germany F all torstraße 6 - 76707 Hambrücken...
