Rca Connection - Audio System C0-70.4 Owner's Manual

co-100.2
to INPUT of
additional
AMPLIFIERS
CO-70.4 / CO- 75.4 24 v .
.

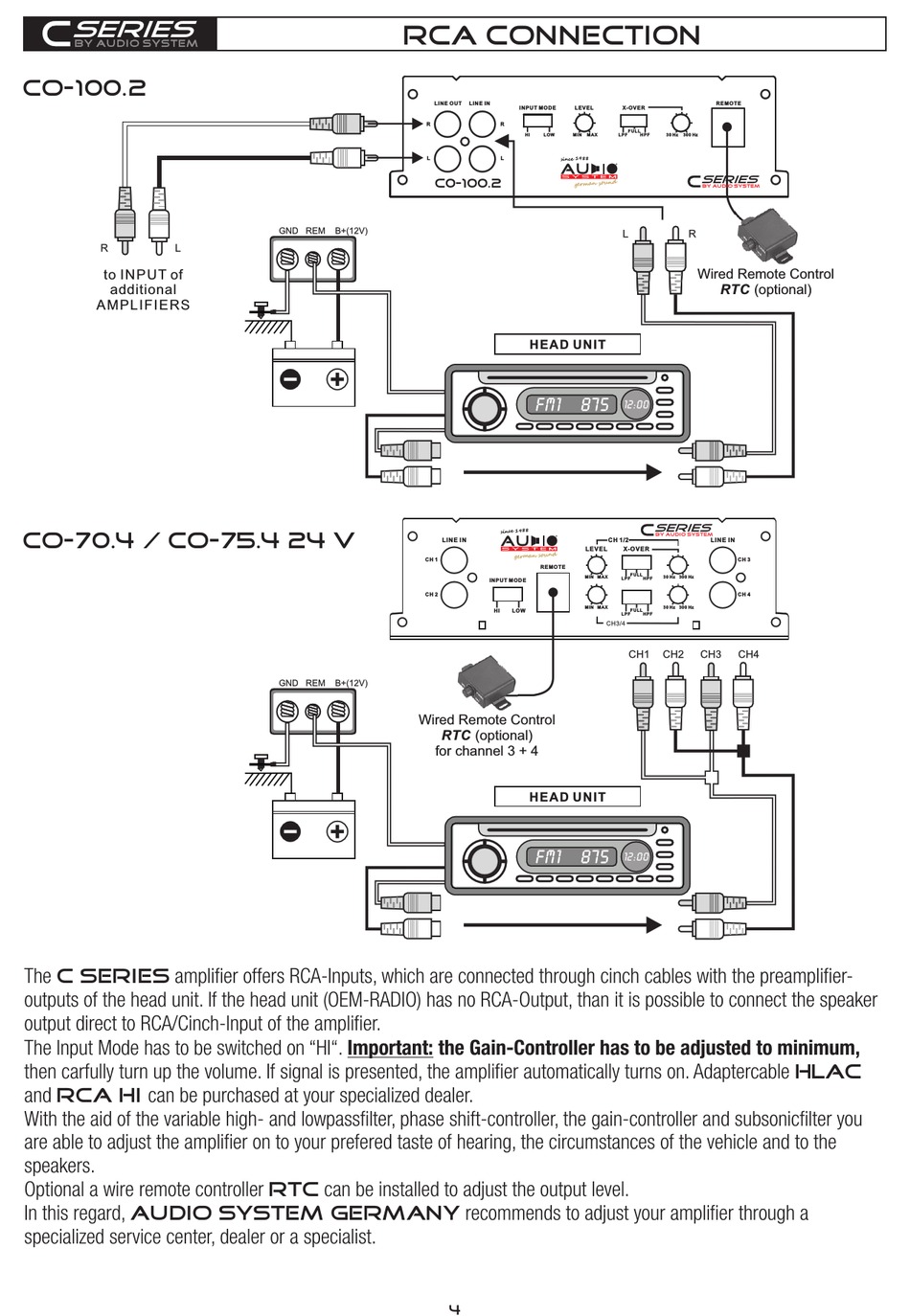

The c Series amplifier offers RCA-Inputs, which are connected through cinch cables with the preamplifier-
outputs of the head unit. If the head unit (OEM-RADIO) has no RCA-Output, than it is possible to connect the speaker
output direct to RCA/Cinch-Input of the amplifier.
The Input Mode has to be switched on "HI". Important: the Gain-Controller has to be adjusted to minimum,
then carfully turn up the volume. If signal is presented, the amplifier automatically turns on. Adaptercable HLAC
and RCA HI can be purchased at your specialized dealer.
With the aid of the variable high- and lowpassfilter, phase shift-controller, the gain-controller and subsonicfilter you
are able to adjust the amplifier on to your prefered taste of hearing, the circumstances of the vehicle and to the
speakers.
Optional a wire remote controller RTC can be installed to adjust the output level.
In this regard, AUDIO SYSTEM germany recommends to adjust your amplifier through a
specialized service center, dealer or a specialist.

RCA connection

R
L
.
CH 1
CH 2
Wired Remote Control
LINE OUT LINE IN
INPUT MODE LEVEL
R
HI MIN MAX
LOW
L sinc e 198 8
C0-100.2
ger ma n sou nd
HEAD UNIT
sinc e 198 8
R
LINE IN
LEVEL
ger ma n sou nd
REMOTE
MIN MAX
INPUT MODE
MIN MAX
HI LOW
RTC (optional)
for channel 3 + 4
HEAD UNIT
4
REMOTE
X-OVER
FULL
LPF HPF 30 Hz 300 Hz
R
Wired Remote Control
RTC (optional)
CH 1/2 LINE IN
X-OVER
CH 3
FULL
30 Hz 300 Hz
LPF HPF
CH 4
30 Hz 300 Hz
FULL
LPF HPF
