3. PRODUCT OVERVIEW

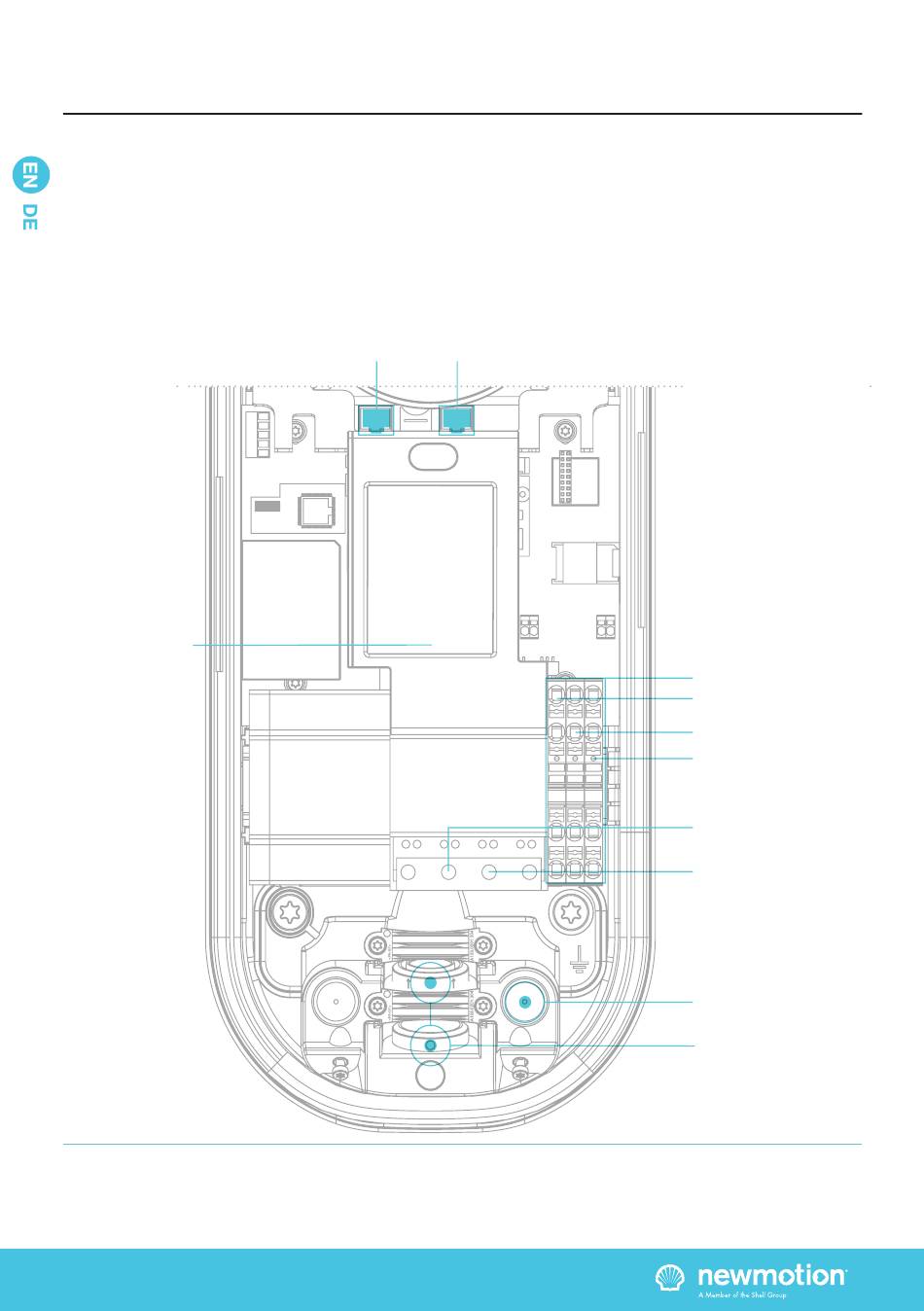

3.4 OVERVIEW OF CONNECTIONS
RJ45 UTP data port for
Ethernet / Mobile router
RJ45 UTP data port for
connection switch (star
configuration) or daisy
SMED with LCD
user display &
Proximity
sensor-set
If connecting to a 230V 3-phase grid without neutral; only install 1-phase and connect one of the two other phase
wires in the neutral wire connection on the terminal block.
INSTALLATIEHANDLEIDING – P10
INSTRUCTION MANUAL – P10 | P10
Business Pro:
connection
Business Lite:
chain incoming
INSIDE
VERSION 0129NM02INT01
095NM21INT02
Business Pro:
RJ45 UTP data port for
connection Switch in star
configuration or Business
Lites in Daisy chain
configuration
Business Lite:
RJ45 UTP data port for
daisy chain outgoing
Terminal block
L1
N
PE (earthing)
Phase 2
Phase 3
UTP data cable inlet
with rubber seal
Inlet for power
cable with tension
relief clamps
RJ4
Ethe
RJ4
con
co
