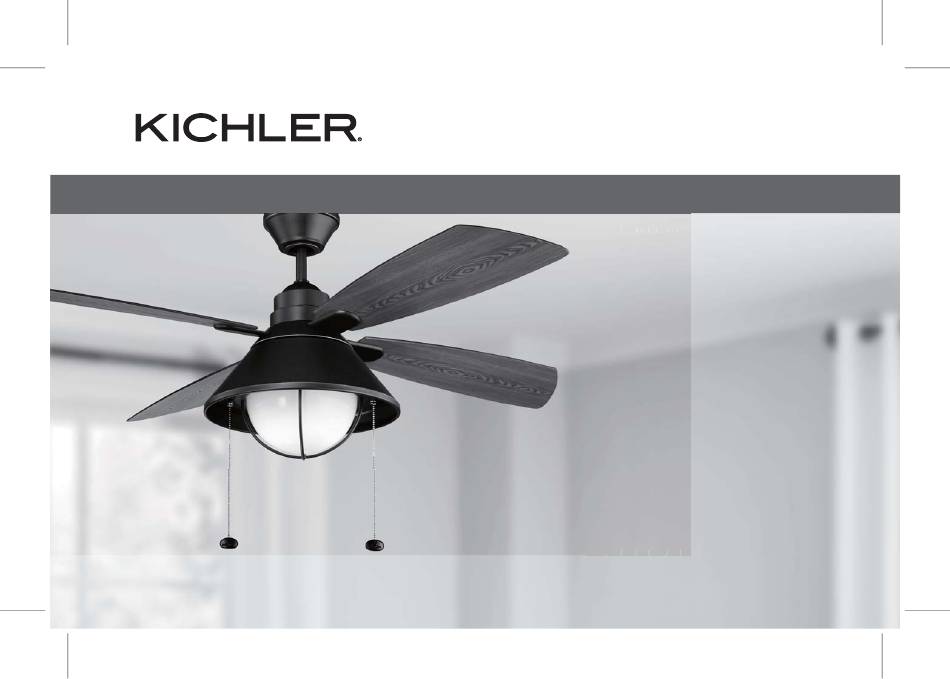

- Page 1 54" SEASIDE LED FAN Product images may vary slightly from actual product. Product images ma INSTRUCTION MANUAL INSTRUCT...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY RULES................4 FINISHING THE INSTALLATION........TOOLS REQUIRED..............ATTACHING THE FAN BLADES.......... PACKAGE CONTENTS............. INSTALLING THE LED LIGHT KIT........MOUNTING OPTIONS............. INSTALLING THE GLASS SHADE ASSEMBLY... HANGING THE FAN..............OPERATING INSTRUCTIONS..........INSTALLATION OF SAFETY SUPPORT......TROUBLESHOOTING............. ELECTRICAL CONNECTIONS..........54"... -
Page 4: Safety Rules
SAFETY RULES 1. To reduce the risk of electric shock, insure electricity has been 8. Avoid placing objects in the path of the blades. turned off at the circuit breaker or fuse box before beginning. 9. To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan. -
Page 5: Tools Required
TOOLS REQUIRED PACKAGE CONTENTS Philips screw driver Unpack your fan and check the Blade screw driver contents. You should have the 11 mm wrench following items: Step ladder Wire cutters a. Fan blades (4) b. Canopy & Ceiling mounting bracket c. -
Page 6: Mounting Options
MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. -
Page 7: Hanging The Fan
HANGING THE FAN Hanger bracket REMEMBER to turn off the power before you begin. To properly install your ceiling fan, follow the steps below. Ceiling canopy Step 1. Remove the decorative canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy cover Step 2. - Page 8 HANGING THE FAN (continued) Supply wires Step 6. Loosen the two set screws and remove the hitch pin and Downrod retaining clip from the coupling on top of the motor assembly. (Fig. Set screws Retaining clip Set screws Step 7. Carefully feed the electrical lead wires from the fan up Hitch pin through the downrod.
- Page 9 HANGING THE FAN (continued) Step 8. Slip the top motor cover, coupling cover, canopy cover and Downrod canopy onto the downrod. (Fig. 9) Canopy Secure the top motor cover to the motor by using the three top Canopy cover motor cover set screws provided, but do not tighten at this time. Coupling cover Thread the hanger ball onto the downrod, insert the cross pin through the downrod and tighten.
-
Page 10: Installation Of Safety Support
INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling. Step 1. Attach the provided wood screw and washers to the ceiling Ceiling mounting joist next to the mounting bracket but do not tighten. (Fig. 11) Attach bracket safety cable... -
Page 11: Electrical Connections
ELECTRICAL CONNECTIONS Power lines 120V WARNING: To avoid possible electrical shock, be sure you have turned Green ground off the power at the main circuit panel. Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts suppled with your fan. -
Page 12: Finishing The Installation
FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into the ceiling outlet box. Outlet box Step 2. Slide the canopy up to the mounting bracket and place one of the key hole slots over the mounting screw on the mounting Ceiling bracket. -
Page 13: Attaching The Fan Blades
ATTACHING THE FAN BLADES Screws Attach a blade to a blade bracket using the screws and rubber Rubber washers provided. (Fig. 15) Washers Make sure the blade is straight when set on the blade bracket. Tighten each mounting screw and then repeat this procedure for Blades each blade. -
Page 14: Installing The Glass Shade Assembly
INSTALLING THE GLASS SHADE ASSEMBLY NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Raise glass shade assembly with light frame up against mounting plate on the bottom of fan housing and secure with the four screws provided. -
Page 15: Operating Instructions
OPERATING INSTRUCTIONS Turn the power on and check the operation of your ceiling fan. The pull chain controls the 3 speeds of your ceiling fan. 1 pull = High, 2 pulls = Medium, 3 pulls = Low and the 4th pull turns the motor off. -
Page 16: Troubleshooting
TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy. 1. Make sure all motor housing screws are snug. 2. - Page 17 www.kichler.com KICHLER® LIGHTING 7711 EAST PLEASANT VALLEY ROAD P.O. BOX 318010 CLEVELAND, OHIO 44131-8010 CUSTOMER SERVICE 866.558.5706 8:30 AM TO 5:00 PM EST, MONDAY - FRIDAY...
