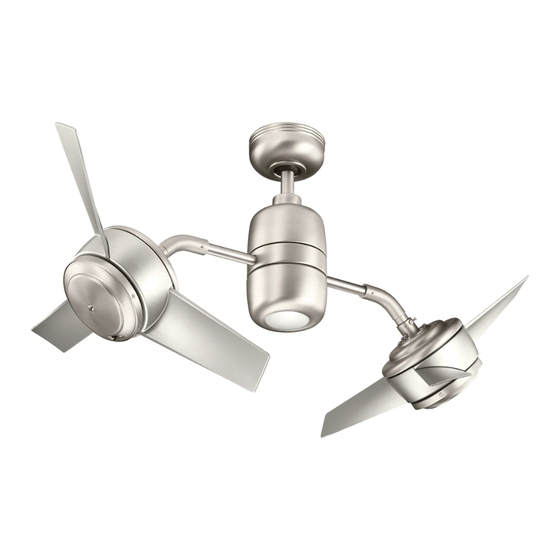

- Page 1 Two 24” Yuree A Kichler ® Décor ™ ceiling fan Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. To avoid personal injury or damage to the electricity has been turned off at the circuit fan and other items, be cautious when breaker or fuse box before beginning. working around or cleaning the fan. -
Page 3: Tools And Materials Required
Two 24”Yuree 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (6) Canopy & Ceiling mounting bracket Ball/downrod assembly Coupling cover Fan motor assembly... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure. -
Page 5: Hanging The Fan
Two 24”Yuree 5. HANGING THE FAN Hanger bracket REMEMBER to turn off the power before you begin. Ceiling canopy To properly install your ceiling fan, follow the steps below. Canopy cover Step 1. Remove the decorative canopy Fig. 5 bottom cover from the canopy by turning the cover counter clockwise. - Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Downrod tighten. Now tighten the set screw. (Fig. 9) Canopy Step 9. Lift the motor assembly into position Canopy cover and place the hanger ball into the ceiling Coupling cover...
-
Page 7: Installation Of Safety Support
Two 24”Yuree 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install Hanger bracket it as follows. Safety cable Step 1. Attach the provided wood screw and Attach safety cable to ceiling joist with washers to the ceiling joist next to the mounting... -
Page 8: Finishing The Installation
Connect the white wire from the fan to the white wire marked "TO MOTOR N" on the Outlet box receiver. Connect the blue wire from the fan to the blue wire marked "FOR LIGHT" on the White (neutral) Black (hot) receiver. -
Page 9: Installing The Light Fixture
Two 24”Yuree 9. INSTALLING THE MOUNTING PLATE (A) 1. Loosen the two screws on the mounting ring attached to the motor shaft and "remove" and save the third screw. (Fig. 16) 2. Place the key hole slots on the mounting plate (A) over the two screws previously loosened on the mounting ring. - Page 10 11. INSTALLING THE LAMP & GLASS SHADE Step 1. Install 75W, E-11 JD TYPE, halogen lamp (included) being careful not to touch the bulb with bare hands. Step 2. Raise the glass shade against the light kit and turn clockwise until snug, DO NOT OVERTIGHTEN.
-
Page 11: Installing The Switch Housing
Two 24”Yuree 13. INSTALLING THE MOUNTING PLATE (B) 1. Loosen the two screws on the mounting ring attached to the motor shaft and "remove" and save the third screw. (Fig. 20) 2. Place the key hole slots on the mounting plate (B) over the two screws previously loosened on the mounting ring. -
Page 12: Installing The Batteries
15. INSTALLING THE BATTERIES Remove the face plate of the Wall Switch by lifting at the top and then insert the supplied 12V battery. Duracell MN21/Eveready A23/GP 23A all 12V. Replace the switch face plate. To prevent possible damage to the transmitter, remove these batteries if not used FAN OFF ON ECE... - Page 13 Two 24”Yuree 17. INSTALLING THE BASIC FUNCTION WALL CONTROL SYSTEM WALL Outlet box PLATE Switch Wall plate Select a location to install the Basic Function Wall Control System Transmitter and Wall Plate. RMEMEBER you can safely use the transmit- ter outdoors but it should be mounted indoors away from excess heat and away from con- tact with water or humidity.
- Page 14 18. OPERATING INSTRUCTIONS The Black Slide Switch on the side of the switch housing controls the direction of the blades "Forward and Reverse". Warm weather - Forward (counter clockwise) A downward airflow creates a cooling effect as shown in Fig. 26. This allows you to set your air conditioner on a warmer setting Fig.
-
Page 15: Troubleshooting
Two 24”Yuree 19. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
