The following items are located on the bottom side of the board. See Figure 8.
BT1
BT2
BT3
BT4
Downloaded from
Elcodis.com
electronic components distributor
Battery Holder for 1.5 V AAA. Use for one-cell or two-cell mode.
Battery Holder for 1.5 V AAA. Use for two-cell mode only.
Battery Holder for 3 V Coin Cell (CR2032).
Battery Holder for 1.5 V Button Cell (A76 or 357).
NEG
Note: BT2 is
only used in
two-cell mode.
BT2
(AAA)
POS
(A76 or 357)

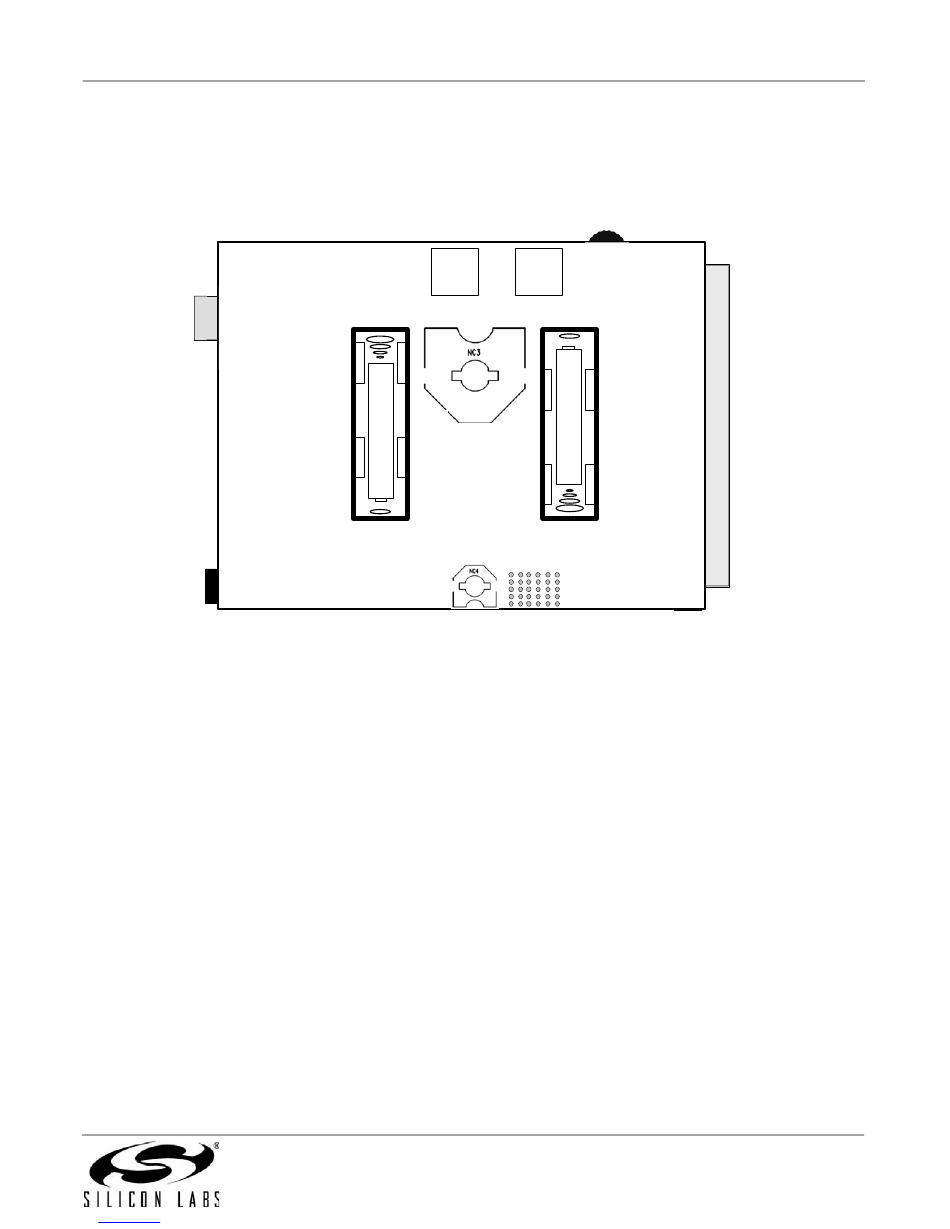

Figure 8. Bottom of C8051F912 Target Board
POS
BT3
(CR2032)
NEG
BT4
Rev. 0.1
C8051F912-DK
BT1
(AAA)
