3. Remove tool rest assembly from machine
base and set aside for now (see Figure 9).
4. Loosen frame tilt lock handle shown in
Figure 9.
Frame Tilt
Lock
Handle

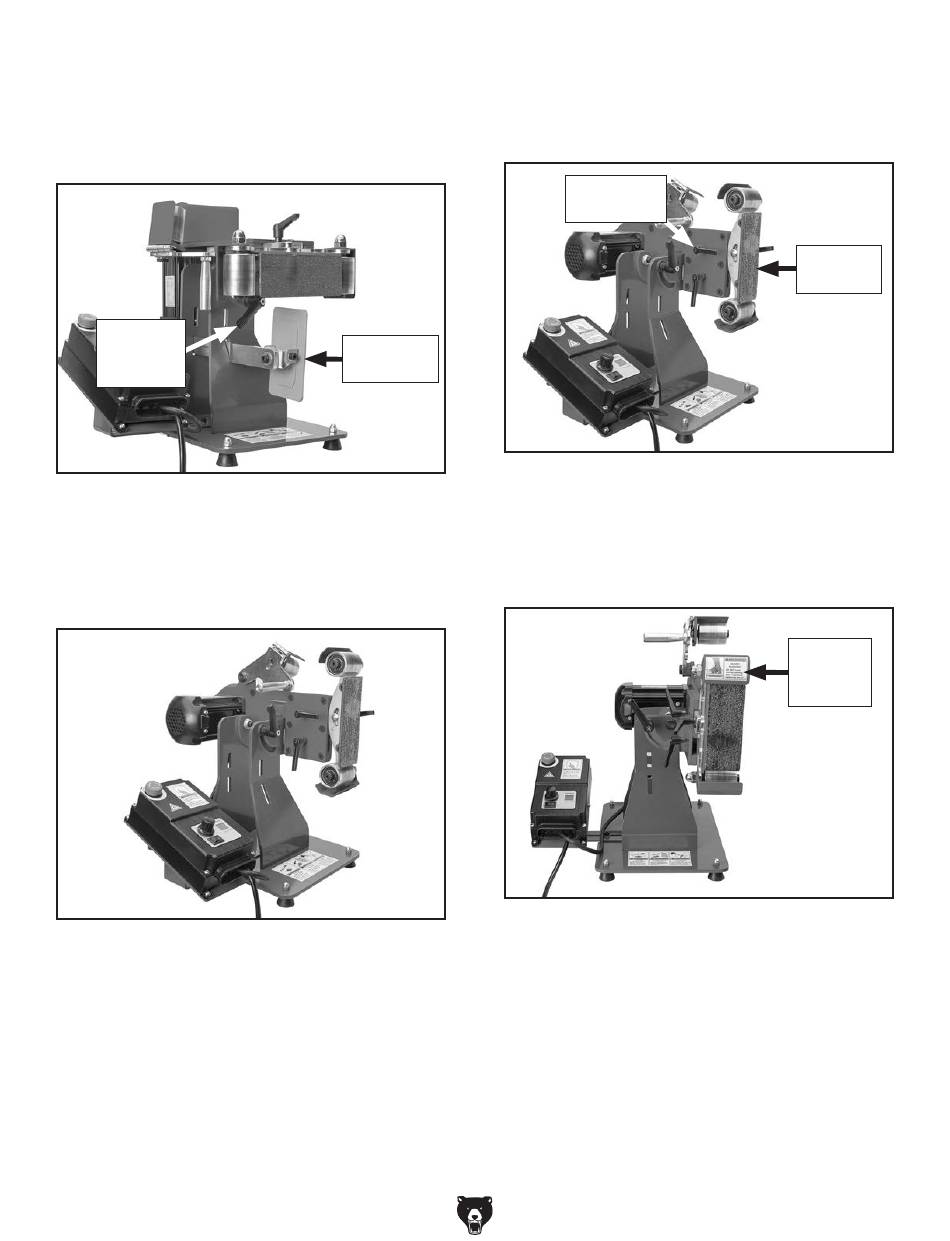

Figure 9. Location of tool rest assembly and
frame tilt lock handle.
5. Tilt machine frame to vertical position, as
shown in Figure 10, then tighten frame tilt
lock handle to secure.
Figure 10. Frame tilted to vertical position.
-14-
6.
7.
Tool Rest
Assembly
Figure 11. Location of platen lock handle and
8.
Figure 12. Platen assembly flipped and installed
Loosen platen lock handle (see Figure 11).
Remove platen assembly from machine
frame (see Figure 11).
Platen Lock
Handle
platen assembly.
Flip platen assembly so abrasion injury label
faces up, then install assembly in machine
frame (see Figure 12).
correctly.
Model T32459 (Mfd. Since 03/23)
Platen
Assembly
Abrasion
Injury
Label
