Grizzly T27417 Owner's Manual

Oscillating edge belt & spindle sander
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL T27417
OSCILLATING EDGE
BELT & SPINDLE SANDER
OWNER'S MANUAL
COPYRIGHT © JANUARY, 2016 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#WK17887 PRINTED IN CHINA
V1.01.16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T27417 and is the answer not in the manual?

Questions and answers

Kelly
May 28, 2025

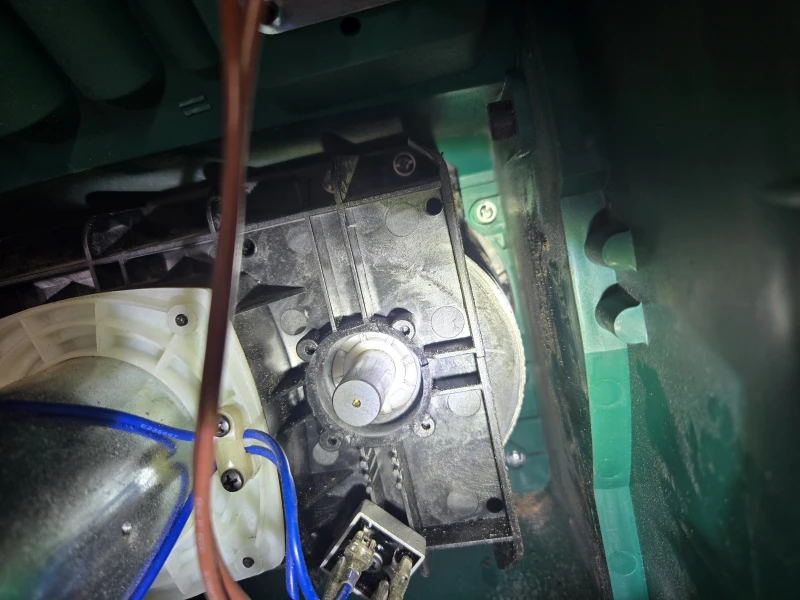

Parts loose in bottom of sander. T27417 How do they go back together Am I missing parts

User image 683741309d355
0

Subscribe to Our Youtube Channel

Related Manuals for Grizzly T27417

Summary of Contents for Grizzly T27417

  • Page 1 BELT & SPINDLE SANDER OWNER'S MANUAL COPYRIGHT © JANUARY, 2016 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #WK17887 PRINTED IN CHINA V1.01.16...
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 3: Table Of Contents

    Changing Motor Brushes ......................28 Drive Belt Replacement ......................29 SECTION 8: WIRING ........................33 Wiring Safety Instructions ......................33 T27417 Wiring Diagram ......................34 SECTION 9: PARTS ........................35 Main ............................35 Labels ............................38 WARRANTY & RETURNS ......................41...

  • Page 4: Introduction

    ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documenta- tion is available for your machine. Manufacture Date Serial Number Model T27417 (Mfd. Since 09/15)

  • Page 5: Identification

    Table Tilt Lock Knob E. Backstop M. ON/OFF Paddle Switch w/Disabling Key Spindle N. Sanding Drum Storage Area G. Spindle Nut To reduce your risk of serious injury, read this entire manual BEFORE using machine. Model T27417 (Mfd. Since 09/15)

  • Page 6: Controls & Components

    Belt: Slides onto spindle and into table open- ing for edge-sanding operations. B. Sanding Drum w/Sleeve: Installs on spindle for spindle sanding operations. Model T27417 H. Belt Tracking Control Knob: Adjusts align- comes with five 80-grit sanding drums with ment of sanding belt (refer to Page 21 for matching sleeves ( ⁄...
  • Page 7 (not included). M. Work Table: Supports workpiece during sanding operation. Table tilts for bevel sanding. N. Table Tilt Stop Bracket: Detents provide positive stops for convenient positioning of table at 45°, 30°, 22.5°, 15°, and 0°. Model T27417 (Mfd. Since 09/15)

  • Page 8: Machine Data Sheet

    Machine Data Sheet MACHINE DATA SHEET Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901 MODEL T27417 OSCILLATING EDGE BELT AND SPINDLE SANDER Product Dimensions: Weight................................27 lbs. Width (side-to-side) x Depth (front-to-back) x Height............16-1/2 x 18-1/2 x 18-1/2 in.
  • Page 9 The information contained herein is deemed accurate as of 7/12/2016 and represents our most recent product specifications. Model T27417 PAGE 2 OF 2 Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. Model T27417 (Mfd. Since 09/15)

  • Page 10: Section 1: Safety

    Everyday ery. Never operate under the influence of drugs or eyeglasses are NOT approved safety glasses. alcohol, when tired, or when distracted. Model T27417 (Mfd. Since 09/15)
  • Page 11 EXPERIENCING DIFFICULTIES. If at any time debris. Make sure they are properly installed, you experience difficulties performing the intend- undamaged, and working correctly BEFORE ed operation, stop using the machine! Contact our operating machine. Technical Support at (570) 546-9663. Model T27417 (Mfd. Since 09/15)

  • Page 12: Additional Safety For Spindle/Edge Sanders

    Never operate without maintain support and control when sanding force adequate dust collection system in place and run- is applied. ning. However, dust collection is not a substitute for using a respirator. -10- Model T27417 (Mfd. Since 09/15)

  • Page 13: Section 2: Power Supply

    -11- Model T27417 (Mfd. Since 09/15)
  • Page 14 1-15 Plug 25 Feet ...........16 AWG 50 Feet ...........14 AWG Neutral Note: We do not recommend using extension Figure 6. Typical 1-15 plug and receptacle. cords longer than 50 feet. -12- Model T27417 (Mfd. Since 09/15)

  • Page 15: Section 3: Setup

    Grizzly or the shipping agent. You MUST have the original pack- Loose Inventory (Figure 7) aging to file a freight claim.

  • Page 16: Site Considerations

    Lock entrances to the shop Lag Screw or disable start switch or power connection to prevent unsupervised use. Flat Washer Machine Base Workbench Figure 10. "Direct Mount" setup. -14- Model T27417 (Mfd. Since 09/15)

  • Page 17: Assembly

    Figure 13, and secure with a hose clamp. Tug the hose to make sure it does not come off. Note: A tight fit is necessary for proper performance. Figure 12. Assembled sander (rear). Figure 13. Dust hose attached to dust port. -15- Model T27417 (Mfd. Since 09/15)

  • Page 18: Test Run

    The switch disabling feature is not working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for help. Congratulations! The test run is complete. The sander is ready for operation. -16- Model T27417 (Mfd. Since 09/15)

  • Page 19: Section 4: Operations

    Figure 15. Disabling switch by removing key. formal training before beginning any proj- ects. Regardless of the content in this sec- tion, Grizzly Industrial will not be held liable for accidents caused by lack of training. Children or untrained people can be seriously injured by this machine.

  • Page 20: Spindle Sanding

    Spindle Sanding Place table insert in table opening, then install desired sanding drum on spindle shaft, followed by corresponding sanding sleeve and throat plate (see Figure 17). The Model T27417 comes with ⁄ ", ⁄ ", 1", 1 ⁄ ", and 2"...

  • Page 21: Changing/Replacing Sanding Drum/Sleeve

    Install backstop and secure with wing bolt (see Figure 19). Note: The 1/2" sanding sleeve does not use a sanding drum, but mounts directly to the spindle shaft. Edge-Sanding Knob Attachment Backstop Wing Bolt Figure 19. Edge-sanding attachment installed. -19- Model T27417 (Mfd. Since 09/15)
  • Page 22 Note: Edge-sanding inside curves on the Model trol of workpiece, and guide it against rotation of sanding belt. DO NOT force workpiece T27417 requires that the table be set to 0°. against sanding belt. Allow the machine to do the work.

  • Page 23: Changing/Replacing Sanding Belt

    4" x 24" sanding belts. These are avail- you change or replace the sanding belt, or if the able in a variety of grits through the Grizzly cata- belt moves toward or away from the table during log. See Accessories on Page 23.

  • Page 24: Bevel Sanding

    Setting Work Table Angle DISCONNECT MACHINE FROM POWER! Install spindle sander or edge-sanding The work table on Model T27417 tilts from 0°–45° attachment. for sanding bevels on your workpiece. The table tilt stop bracket (see Figure 25) has detents for Loosen both table tilt lock knobs (see quickly setting the most common angles: 0°, 15°,...

  • Page 25: Section 5: Accessories

    T20451—“Kirova” Clear Safety Glasses To reduce this risk, only install accessories T20452—“Kirova” Anti-Reflective S. Glasses recommended for this machine by Grizzly. H7194—Bifocal Safety Glasses 1.5 H7195—Bifocal Safety Glasses 2.0 H7196—Bifocal Safety Glasses 2.5 NOTICE...
  • Page 26 D1247—Sanding Belt 4" x 24" A/O 180-Grit H5453—Sanding Sleeve 2" A/O 120-Grit D1248—Sanding Belt 4" x 24" A/O 220-Grit H5454—Sanding Sleeve 2" A/O 150-Grit Figure 30. Grizzly sanding belts. ® Figure 31. Grizzly sanding sleeves. ® -24- Model T27417 (Mfd. Since 09/15)

  • Page 27: Section 6: Maintenance

    To reduce risk of shock or accidental startup, always disconnect machine from power before adjustments, Cleaning the Model T27417 is relatively easy. maintenance, or service. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any...

  • Page 28: Section 7: Service

    3. Re-align/replace shaft, pulley set screw, and key. 4. Machine incorrectly mounted to workbench. 4. Adjust feet; shim or tighten mounting hardware. 5. Motor bearings at fault. 5. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement. -26- Model T27417 (Mfd. Since 09/15)
  • Page 29 1. Not supporting workpiece against backstop. 1. Use backstop to support workpiece. pulled out of your hand while edge- sanding. 1. Adjust belt tracking (Page 21). Sanding belt comes 1. Belt tracking out of adjustment. off during operation. -27- Model T27417 (Mfd. Since 09/15)

  • Page 30: Changing Motor Brushes

    Motor Brushes A pair of new brushes can be purchased from Grizzly by requesting part #PT27417136A. The replacement procedure can usually be done in about 15 minutes. When replacing the brushes, we recommend replacing them one at a time so you can keep track of which wire connects to each brush.

  • Page 31: Drive Belt Replacement

    Remove base (#125) from tables (#30 & #41) to expose wheel support (#55), as shown in Figure 36. Bottom Guard Tables Wheel Support Figure 34. Sander turned upside down with bottom guard removed. Figure 36. Housing base removed from cast-iron table. -29- Model T27417 (Mfd. Since 09/15)
  • Page 32 Ring Lower Sleeve Pulley Figure 38. Removing external retaining ring and washer from spindle. ⁄ " Drive Belt Figure 40. Location of lower bearing sleeve, with lower pulley and ⁄ " timing belt removed. -30- Model T27417 (Mfd. Since 09/15)
  • Page 33 (#90) shoulder, as shown in Figure 44. Compression Woodruff Spring Hooked End Spindle Figure 44. Hooked end of compression spring locked into upper pulley shoulder. Figure 42. Installing Woodruff key into spindle. -31- Model T27417 (Mfd. Since 09/15)
  • Page 34 31. Re-connect two brown wires to rectifier (refer 29. Install wheel support (#55), as shown in to Figure 35 on Page 29), then re-install bot- Figure 45. tom guard (#134). Wheel Support Figure 45. Installing wheel support. -32- Model T27417 (Mfd. Since 09/15)

  • Page 35: Section 8: Wiring

    Technical Support at (570) 546-9663. The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. -33- Model T27417 (Mfd. Since 09/15)

  • Page 36: T27417 Wiring Diagram

    Disconnect power before working on wiring. KEDU HY18 20A/12A 125/250V PADDLE SWITCH (Viewed from Behind) Rectifier To Power Cord Motor Paddle Switch Figure 46. Wiring components viewed from below. READ ELECTRICAL SAFETY -34- Model T27417 (Mfd. Since 09/15) ON PAGE 33!

  • Page 37: Section 9: Parts

    SECTION 9: PARTS We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability. Main 138A 136A -35- Model T27417 (Mfd. Since 09/15)
  • Page 38 SWITCH ORIENTATION PLATE PT27417046 TAP SCREW M4 X 14 PT27417096 SAFETY PADDLE SWITCH PT27417047 UPPER BEARING SUPPORT PT27417097 SWITCH SHIELD PT27417048 BALL BEARING 6203ZZ PT27417099 PHLP HD SCR M4-.7 X 15 PT27417049 FELT RING -36- Model T27417 (Mfd. Since 09/15)
  • Page 39 SANDING SLEEVE 1-1/2", 80-GRIT 136A PT27417136A BRUSH ASSEMBLY PT27417120 SANDING SLEEVE 1", 80-GRIT PT27417137 KNOB M8-1.25, 18MM L (FEMALE) PT27417121 SANDING SLEEVE 3/4", 80-GRIT 138A PT27417138A MOTOR ASSEMBLY PT27417122 SANDING SLEEVE 1/2", 80-GRIT PT27417140 FLAT WASHER 13MM -37- Model T27417 (Mfd. Since 09/15)

  • Page 40: Labels

    Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. -38-...
  • Page 41 Would you recommend Grizzly Industrial to a friend? _____ Yes _____No Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No 10.
  • Page 42 FOLD ALONG DOTTED LINE Place Stamp Here GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: Name_______________________________ Street_______________________________ City______________State______Zip______ TAPE ALONG EDGES--PLEASE DO NOT STAPLE...

  • Page 43: Warranty & Returns

    WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.

Table of Contents
