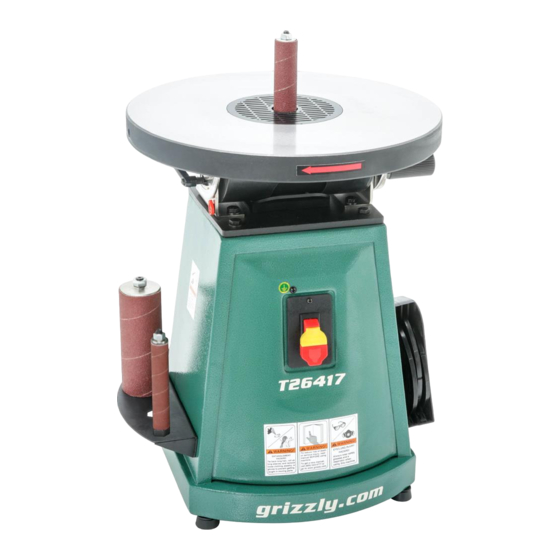

Grizzly T26417 Owner's Manual

Oscillating spindle sander
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

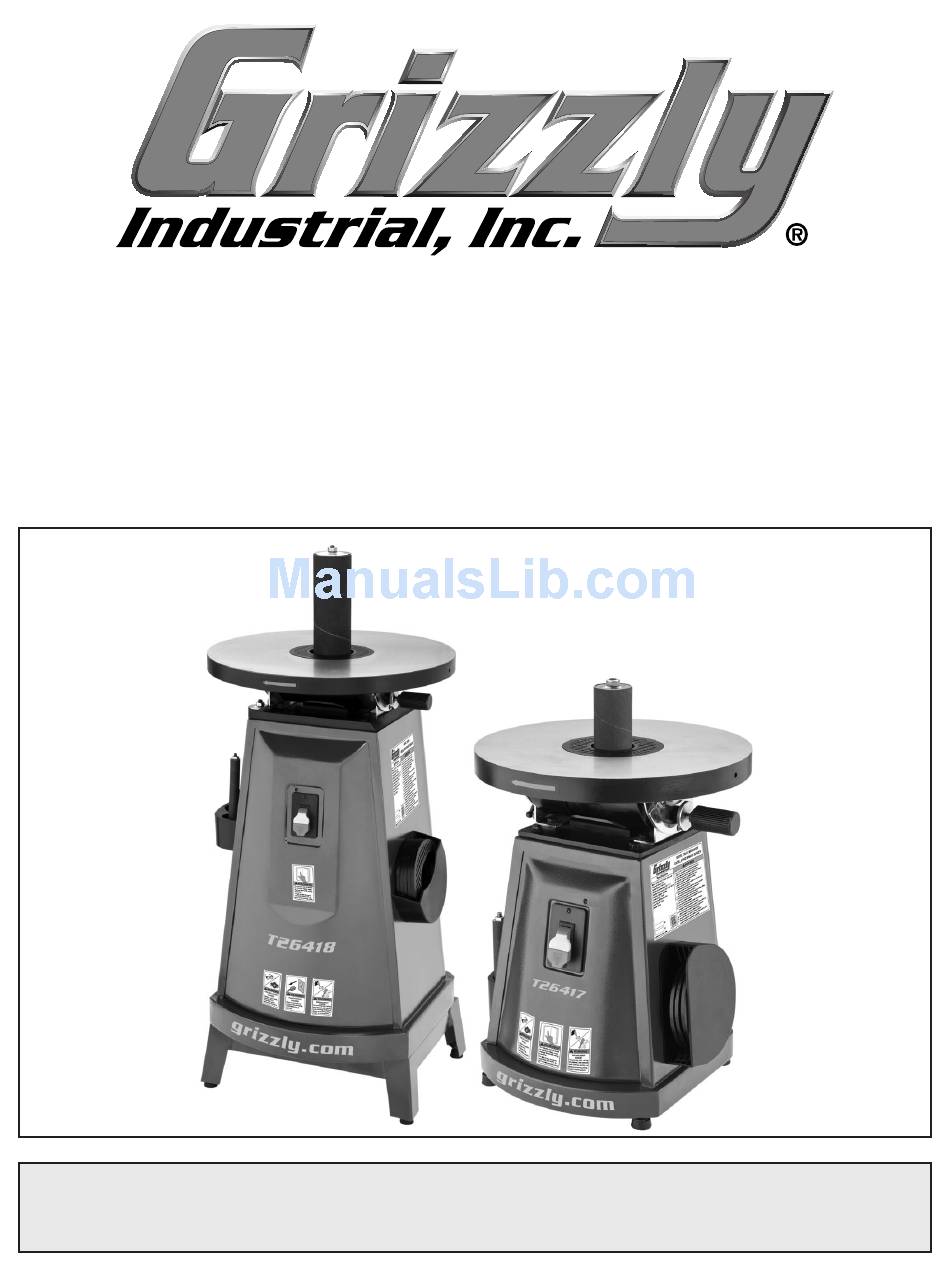

MODEL T26417/T26418
OSCILLATING SPINDLE SANDER
OWNER'S MANUAL
(For models manufactured since 1/15)
COPYRIGHT © NOVEMBER, 2013 BY GRIZZLY INDUSTRIAL, INC. REVISED JANUARY, 2015 (TR).
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#DM16072 PRINTED IN CHINA
V2.01.15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T26417 and is the answer not in the manual?

Questions and answers

Related Manuals for Grizzly T26417

Summary of Contents for Grizzly T26417

  • Page 1 OWNER'S MANUAL (For models manufactured since 1/15) COPYRIGHT © NOVEMBER, 2013 BY GRIZZLY INDUSTRIAL, INC. REVISED JANUARY, 2015 (TR). WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 3: Table Of Contents

    T26417 Main ..........31 SECTION 3: SETUP ........13 T26417 Oscillator Assembly ......33 Unpacking ............ 13 T26417 Machine Labels & Cosmetics ..34 Needed for Setup ......... 13 T26418 Main ..........35 Inventory ............14 T26418 Oscillator Assembly ......37 Cleanup ............

  • Page 4: Introduction

    Before calling, please write down the Manufacture Date and Serial Number stamped into the machine ID label (see below). This infor- mation helps us determine if updated documenta- tion is available for your machine. Manufacture Date Serial Number Model T26417/T26418 (Mfd. Since 1/15)

  • Page 5: Identification

    Sanding Drum Assembly Table Tilt Storage Control ON/OFF Paddle Table Inserts Switch with Disabling Key Stand (T26418 Only) Figure 1. Identification. To reduce your risk of serious injury, read this entire manual BEFORE using machine. Model T26417/T26418 (Mfd. Since 1/15)

  • Page 6: Machine Data Sheet

    MACHINE DATA SHEET Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901 MODEL T26417 BENCHTOP OSCILLATING SANDER Product Dimensions: Weight................................73 lbs. Width (side-to-side) x Depth (front-to-back) x Height................15 x 15 x 24 in.
  • Page 7 The information contained herein is deemed accurate as of 1/11/2015 and represents our most recent product specifications. Model T26417 PAGE 2 OF 2 Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. Model T26417/T26418 (Mfd. Since 1/15)
  • Page 8 The information contained herein is deemed accurate as of 1/11/2015 and represents our most recent product specifications. Model T26418 PAGE 1 OF 2 Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. Model T26417/T26418 (Mfd. Since 1/15)
  • Page 9 The information contained herein is deemed accurate as of 1/11/2015 and represents our most recent product specifications. Model T26418 PAGE 2 OF 2 Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. Model T26417/T26418 (Mfd. Since 1/15)

  • Page 10: Section 1: Safety

    Everyday ery. Never operate under the influence of drugs or eyeglasses are NOT approved safety glasses. alcohol, when tired, or when distracted. Model T26417/T26418 (Mfd. Since 1/15)
  • Page 11 Contact our debris. Make sure they are properly installed, Technical Support at (570) 546-9663. undamaged, and working correctly. Model T26417/T26418 (Mfd. Since 1/15)

  • Page 12: Additional Safety For Spindle Sanders

    Promptly replace sanding sleeves if they become worn or damaged. -10- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 13: Section 2: Power Supply

    For your own safety and protection of T26417 Full-Load Current Rating ..3.4 Amps property, consult an electrician if you are T26418 Full-Load Current Rating ..6.9 Amps unsure about wiring practices or electrical codes in your area.

  • Page 14: Grounding & Plug Requirements

    Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle, and meet the following require- ments: T26417 Minimum Gauge Size ....16 AWG T26418 Minimum Gauge Size ....14 AWG Maximum Length (Shorter is Better)..50 ft. SHOCK HAZARD! Two-prong outlets do not meet the grounding requirements for this machine.

  • Page 15: Section 3: Setup

    When you are completely satisfied with the condi- • Hose Clamps 2.5" ........2 tion of your shipment, inventory the contents. SUFFOCATION HAZARD! Keep children and pets away from plastic bags or packing materials shipped with this machine. Discard immediately. -13- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 16: Inventory

    Figure 4. T26418 Inventory. –2 ⁄ " x 2 ⁄ " ..........1 –1 ⁄ " x 2 ⁄ " ..........1 –2 ⁄ " x 3 ⁄ " ..........1 Figure 3. T26417 Inventory. -14- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 17: Cleanup

    Put on safety glasses. 15" Coat the rust preventative with a liberal amount of cleaner/degreaser, then let it soak Figure 5. T26417 Minimum working clearances. for 5–10 minutes. Wipe off the surfaces. If your cleaner/degreas- er is effective, the rust preventative will wipe off easily.

  • Page 18: Mounting T26417 To Bench

    Machine Base Lag Screw Lag Shield Anchor Concrete Drilled Hole Flat Washer Figure 9. Popular method for anchoring Machine Base machinery to a concrete floor. Workbench Figure 8. Example of a "Direct Mount" setup. -16- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 19: Assembly

    Figure 11, and secure in place with a hose clamp. Tug hose to make sure it does not come off. Note: A tight fit is necessary for proper per- formance. Dust Port Figure 11. Dust port. -17- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 20: Test Run

    Try to start machine by pressing switch but- death, or machine/property damage. ton. Machine should NOT start. If it does start, the switch disabling feature is not functioning properly and the switch must be replaced. -18- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 21: Section 4: Operations

    Read books/magazines or get formal training before beginning any proj- ects. Regardless of the content in this sec- tion, Grizzly Industrial will not be held liable To reduce your risk of for accidents caused by lack of training.

  • Page 22: Installing Sanding Drum/Sleeve

    Feeds workpiece against direction of spindle rotation, maintaining a safe working distance between hands and sanding drum. Turns machine OFF. Machine Spindle Hex Nut Figure 13. Spindle hex nut. To remove assembly, reverse Steps 2–3. -20- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 23: Changing Spindle Sanding Sleeve

    Figure 14. Bottom Washer Washer Screw sanding spindle assembly into machine Table spindle. Insert Sanding Tighten spindle hex nut until sanding drum Sleeve Sanding places slight pressure on sanding sleeve. Spindle Figure 14. Assembly order. -21- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 24: Tilting Table

    Adjustment Handle Locking Lever Figure 16. Loosening locking ring. Set table tilt using angle scale while rotating adjustment handle. Tighten locking lever and locking ring. Table Angle Scale Figure 15. Loosening table tilt lock lever. -22- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 25: Sanding

    " Spindle Direction 2" 2" ⁄ " T26418 Sanding Sleeves Sanding Drums Table Inserts ⁄ " ⁄ " 1" Feed Direction 2" 2" ⁄ " 3" 3" ⁄ " Figure 17. Sanding workpiece example. -23- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 26: Section 5: Accessories

    H7194—Bifocal Safety Glasses 1.5 To reduce this risk, only install accessories H7195—Bifocal Safety Glasses 2.0 recommended for this machine by Grizzly. H7196—Bifocal Safety Glasses 2.5 NOTICE Refer to our website or latest catalog for additional recommended accessories.
  • Page 27 Grizzly offers a wide variety of rigid aluminum H3632—Respirator Facepiece oxide sanding sleeves that are perfect for use with H3635—Particulate Aerosol Cartridges, 2 pk. popular sanding drum kits. This lightweight elastomeric facepiece has cradle suspension, easy adjust headstraps and low profile for greater field of vision and compatibility with normal use of glasses or goggles.

  • Page 28: Section 6: Maintenance

    Worn or damaged wires. disperse grease. • Any other unsafe condition. Cleaning Cleaning Model T26417/T26418 is relatively easy. Vacuum excess wood chips and sawdust, and Lubrication wipe off the remaining dust with a dry cloth. If any Points resin has built up, use a resin dissolving cleaner to remove it.

  • Page 29: Section 7: Service

    1. Use a coarser grit sanding sleeve. workpiece. 2. Using too much pressure. 2. Reduce pressure on workpiece while sanding. 3. Work held still for too long. 3. Do not keep workpiece in one place for too long. -27- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 30: Section 8: Wiring

    Technical source. Support at (570) 546-9663. The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. -28- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 31: T26417 Wiring Diagram

    110 VAC 5-15 Plug Start Capacitor (Prewired) 24MFD 300VAC Neutral Figure Ground PADDLE SWITCH (Viewed from Behind) Figure Figure 26. T26417 switch connections. Figure 27. T26417 capacitor connections. READ ELECTRICAL SAFETY -29- Model T26417/T26418 (Mfd. Since 1/15) ON PAGE 26!

  • Page 32: T26418 Wiring Diagram

    T26418 Wiring Diagram MOTOR 110V Figure 110 VAC 5-15 Plug (Prewired) Neutral Ground PADDLE SWITCH (Viewed from Behind) Figure Figure 29. T26418 motor connections. Figure 28. T26418 switch connection. READ ELECTRICAL SAFETY -30- Model T26417/T26418 (Mfd. Since 1/15) ON PAGE 26!

  • Page 33: Section 9: Parts

    Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
  • Page 34 TABLE INSERT STORAGE RACK PT26417067 FLAT WASHER 8MM PT26417034 ANGLE INDICATOR PT26417068 PHLP HD SCR M6-1 X 12 PT26417035 PHLP HD SCR M5-.8 X 8 PT26417140 FLAT WASHER 5/8 PT26417036 PHLP HD SCR M4-.7 X 12 -32- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 35: T26417 Oscillator Assembly

    SET SCREW M5-.8 X 6 DOG-PT 116-5 PT26417116-5 BALL BEARING 6203ZZ PT26417138 KEY 4 X 4 X 12 116-6 PT26417116-6 BALL BEARING 6202ZZ PT26417139 QUILL DUST SEAL PT26417117 SET SCREW M6-1 X 6 DOG-PT -33- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 36: T26417 Machine Labels & Cosmetics

    Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. -34-...

  • Page 37: T26418 Main

    Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
  • Page 38 SANDING SLEEVE 3" X 9" 100-GRIT PT26418032 HEX NUT M5-.8 THIN PT26418070 SANDING DRUM 2" X 9" (RUBBER) PT26418033 BASE PT26418071 SANDING DRUM 3" X 9" (RUBBER) PT26418035 STEP BOLT M6-1 X 10 PT26418072 WRENCH 19 X 22MM OPEN-ENDS -36- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 39: T26418 Oscillator Assembly

    116-5 PT26418116-5 BALL BEARING 6204ZZ PT26418138 KEY 4 X 4 X 12 116-6 PT26418116-6 BALL BEARING 6205ZZ PT26418139 QUILL DUST SEAL PT26418117 SET SCREW M6-1 X 6 DOG-PT PT26418140 PHLP HD SCR M4-.7 X 8 -37- Model T26417/T26418 (Mfd. Since 1/15)

  • Page 40: T26418 Machine Labels & Cosmetics

    Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. -38-...
  • Page 41 Would you recommend Grizzly Industrial to a friend? _____ Yes _____No Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No 10.
  • Page 42 FOLD ALONG DOTTED LINE Place Stamp Here GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: Name_______________________________ Street_______________________________ City______________State______Zip______ TAPE ALONG EDGES--PLEASE DO NOT STAPLE...

  • Page 43: Warranty & Returns

    WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.

This manual is also suitable for:

T26418
