Summary of Contents for Kärcher HD 7/12-4 M

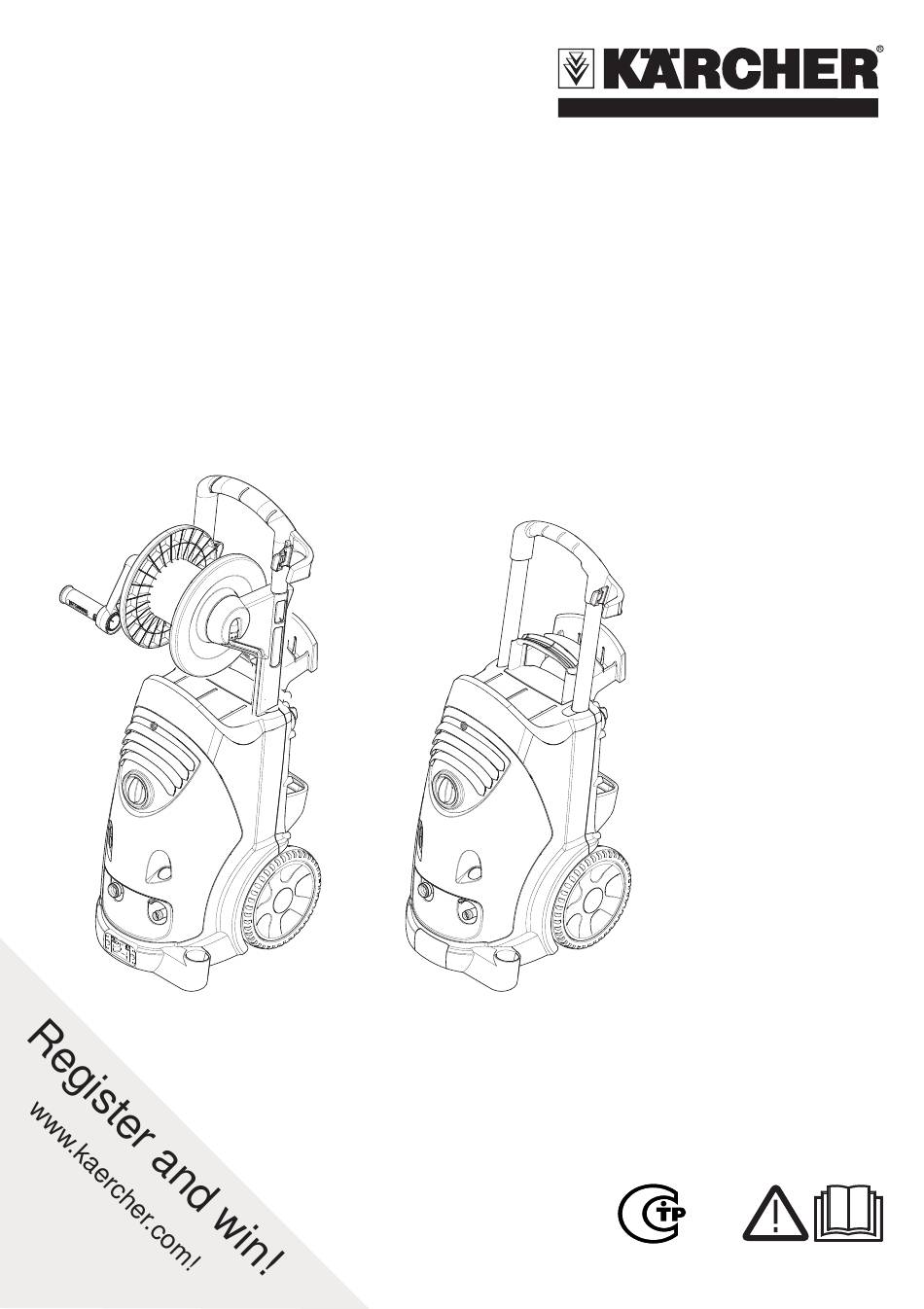

- Page 1 HD 6/16-4 MX HD 7/18-4 MX Plus HD 6/11-4 M Plus HD 7/12-4 M HD 9/18 M HD 9/20-4 M HD 6/15-4 M HD 7/16-4 M HD 9/19 M HD 9/20-4 M Plus HD 6/15-4 MX Plus HD 7/18-4 M...
- Page 2 HD 6/11-4 M Plus HD 6/15-4 M HD 6/16-4 M HD 6/16-4 M Plus HD 7/12-4M HD 7/16-4 M HD 7/18-4 M HD 7/18-4 M Plus HD 9/18 M HD 9/19 M HD 9/19 M Plus HD 9/20-4 M HD 9/20-4 M Plus...
- Page 3 HD 6/15-4 MX Plus HD 6/16-4 MX HD 6/16-4 MX Plus HD 7/18-4 MX HD 7/18-4 MX Plus HD 9/19 MX HD 9/19 MX Plus HD 9/20-4 MX HD 9/20-4 MX Plus...
-
Page 4: Table Of Contents
Please read and comply with these Device elements original instructions prior to the initial English operation of your appliance and store them for Please unfold the front picture side later use or subsequent owners. 1 Storage compartment for nozzles Contents 2 Handle 3 High pressure connection 4 Water connection... -
Page 5: Proper Use
Safety Devices Symbols in the operating instructions Safety devices serve for the protection of Danger the user and must not be put out of opera- tion or bypassed with respect to their func- Immediate danger that can cause severe tion. injury or even death. -
Page 6: Before Startup
Before Startup Start up Unpacking Electrical connection Check the contents of the pack before – Danger unpacking. Danger of injury by electric shock. In case of transport damage inform ven- – The appliance may only be connected to al- dor immediately ternating current. -
Page 7: Operation
Operation Water connection Connection to the water supply Danger Warning Risk of explosion! Do not spray flammable liquids. Observe regulations of water supplier. If the appliance is used in hazardous areas According to the applicable regula- (e.g. filling stations) the corresponding tions, the appliance must never be safety provisions must be observed. - Page 8 Danger High pressure operation Risk of injury. If you use the short spray Note lance/adapter, the use of point spray noz- The appliance is equipped with a pressure zles is not permitted. switch. The motor starts up only when the Operation with detergent lever of the pistol is pulled.
-
Page 9: Transport
Interrupting operation Frost protection Release the lever of the hand-spray Caution gun; the device will switch off. Frost will destroy the not completely water Release again the lever of the hand- drained device. spray gun; the device will switch on Store the appliance in a frost free area. -
Page 10: Maintenance And Care
Maintenance and care Weekly Check oil level Please contact Custom- Danger er Service immediately if the oil is milky Risk of injury by inadvertent startup of ap- (water in oil). pliance and electrical shock. Clean the sieve in the water connection. First pull out the plug from the mains before ... -
Page 11: Spare Parts
Spare parts Appliance is not running Check connection cable for damages. Only use accessories and spare parts – Check the supply voltage. which have been approved by the man- Turn device switch on "0" and let engine ufacturer. -
Page 12: Ec Declaration Of Conformity En
Alfred Kärcher GmbH Co. KG EC Declaration of Conformity Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) We hereby declare that the machine de- Phone: +49 7195 14-0 scribed below complies with the relevant Fax: +49 7195 14-2212 basic safety and health requirements of the EU Directives, both in its basic design and Winnenden, 2012/09/01 construction as well as in the version put... -
Page 13: Technical Specifications
Technical specifications Type HD 6/11-4 M HD 6/15-4 M HD 6/16-4 M 1.524-121.0 1.524-128.0 1.524-120.0 1.524-124.0 1.524-130.0 HD 6/16-4 MX 1.524-125.0 Main Supply Voltage Current type 1~ 50 Motor rpm 1/min 1400 Connected load Protection (slow, char. C) Type of protection IPX5 Maximum allowed net impedance 0,294+j0,184... - Page 14 Type HD 7/12-4 M HD 7/12-4 M HD 7/16-4 M 1.524-122.0 1.524-123.0 1.524-221.0 Main Supply Voltage Current type 1~ 50 1~ 60 3~ 60 Motor rpm 1/min 1400 1680 Connected load Protection (slow, char. C) Type of protection IPX5 Maximum allowed net impedance...
- Page 15 Type HD 7/18-4 M HD 7/18-4 M HD 9/18 M HD9/19 M 1.524-220.0 1.524-224.0 1.524-321.0 1.524-320.0 1.524-223.0 1.524-324.0 1.524-222.0 HD 7/18-4 MX HD 9/19 MX 1.524-225.0 1.524-327.0 EU II Main Supply Voltage Current type 3~ 50 3~ 60 3~ 50 Motor rpm 1/min 1400...
- Page 16 Type HD 9/19 M HD 9/20-4 M HD 9/20-4 M 1.524-328.0 1.524-400.0 1.524-405.0 1.524-406.0 HD 9/20-4 MX 1.524-407.0 EU II EU II Main Supply Voltage Current type 3~ 50 Motor rpm 1/min 2800 1400 Connected load Protection (slow, char. C) Type of protection IPX5 Maximum allowed net impedance Ohm...
