UG507: xG23B 868-915 MHz 20 dBm Radio
Board User's Guide
A Wireless Starter Kit with the BRD4210A Radio Board is an ex-
cellent starting point to get familiar with the EFR32™ Wireless
Gecko Wireless System-on-Chip, and it provides all necessary
tools for developing a Silicon Labs wireless application.

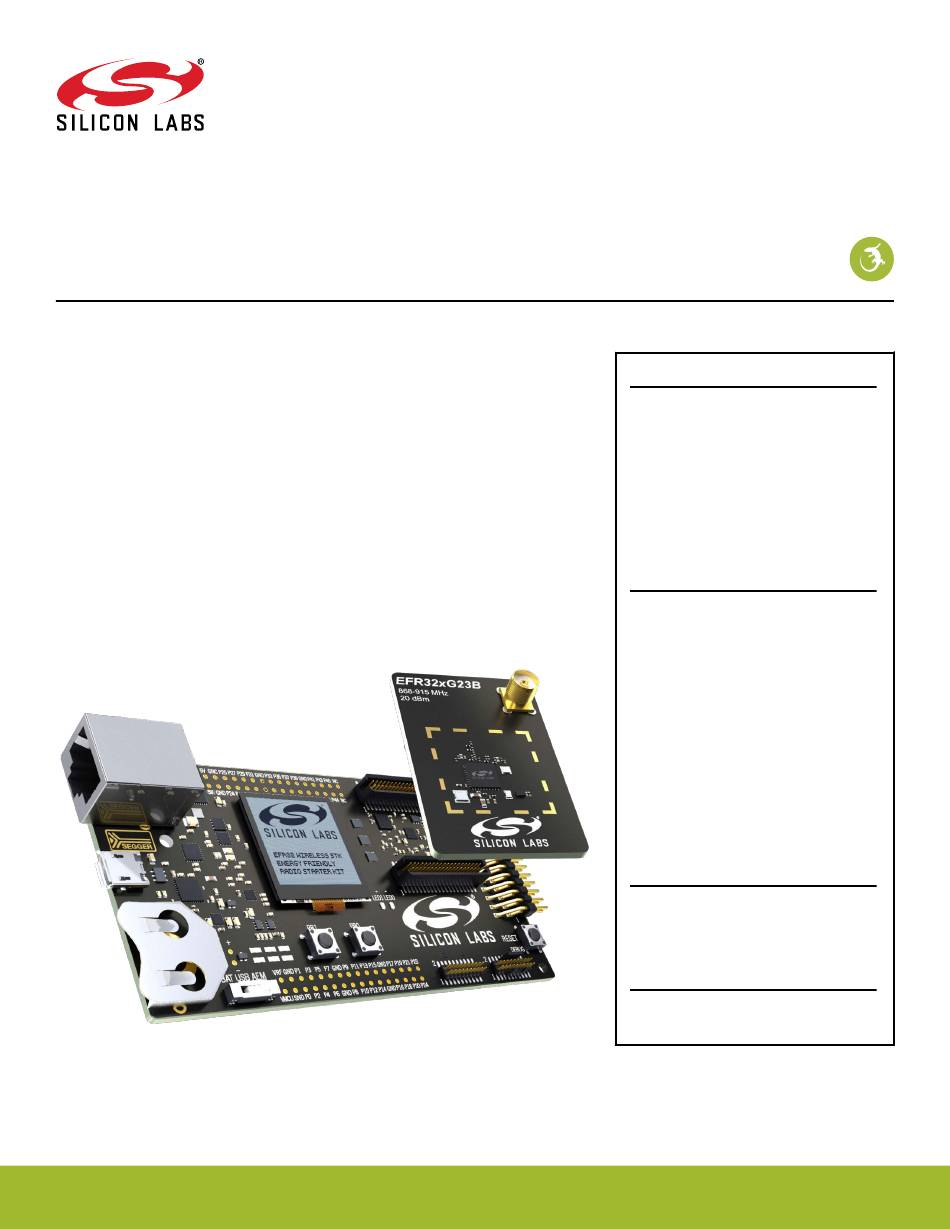

BRD4210A is a plug-in board for the Wireless Starter Kit Mainboard. It is a complete ref-
erence design for the EFR32ZG23 Wireless SoC, with matching networks for 20 dBm
output power, and an SMA connector for the 868-915 MHz band.
The Wireless Starter Kit Mainboard contains an on-board J-Link debugger with a Packet
Trace Interface and a Virtual COM port, enabling application development and debug-
ging the attached radio board as well as external hardware. The Mainboard also contains
sensors and peripherals for easy demonstration of some of the EFR32's many capabili-
ties.
This document describes how to use the BRD4210A Radio Board together with a Wire-
less Starter Kit Mainboard.
silabs.com | Building a more connected world.
Copyright © 2021 by Silicon Laboratories
BRD4210A RADIO BOARD FEATURES
• EFR32ZG23 Wireless Gecko Wireless
SoC with 512 kB Flash, and 64 kB RAM
(EFR32ZG23B020F512IM48)
• Dual band integrated radio transceiver
• 20 dBm output power
• Inverted-F PCB antenna (2.4 GHz)
• SMA antenna connector (868-915 MHz)
• 8 Mbit low-power serial flash for over-the-
air upgrades.
WIRELESS STK MAINBOARD FEATURES
• Advanced Energy Monitor
• Packet Trace Interface
• Virtual COM Port
• SEGGER J-Link on-board debugger
• External device debugging
• Ethernet and USB connectivity
• Silicon Labs Si7021 Relative Humidity and
Temperature sensor
• Low Power 128x128 pixel Memory LCD
• User LEDs / Pushbuttons
• 20-pin 2.54 mm EXP header
• Breakout pads for Wireless SoC I/O
• CR2032 coin cell battery support
SOFTWARE SUPPORT
• Simplicity Studio™
• Energy Profiler
• Network Analyzer
ORDERING INFORMATION
• xG23-RB4210A
Rev. 1.1
