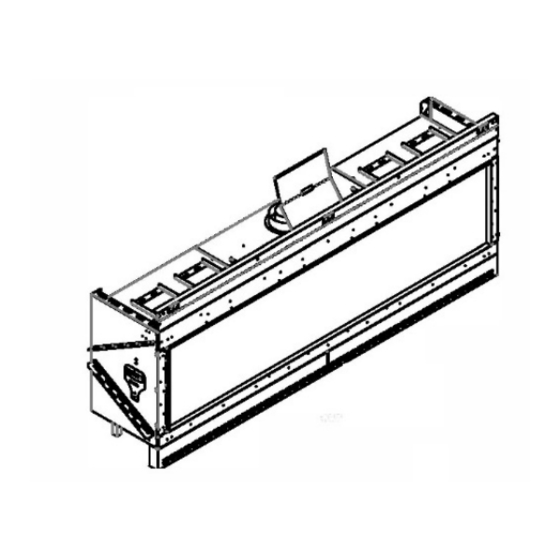

- Page 1 Installation and Operation Manual Ortal 98 Series Ortal 98 Series Fireplaces: 98 Front Facing 98H Front Facing 98 Corner (RS/LS) 98H Corner (RS/LS) 98 Three Sided (TS) 98H Three Sided (TS) Ortal Installation Manual: 98 Series (V1.0)
-
Page 2: General
WARNING: MATERIAL USAGE All materials and objects used to carry out the installation must be certified/approved or specified by Ortal and are suitable for use. Do NOT install the system with different materials or objects than those approved for installation by Ortal. -
Page 3: Table Of Contents
Table of Contents General Safety Information and Warnings Product Information Models Certification Rating Label Zero-Clearance Stand-Offs Installation Prior to Installation Locate the Fireplace Fireplace Installation First Trip to Site: Planning Second Trip to Site: Installation Third Trip to Site: Startup Post-Installation Initial Burning Period Final Inspection Procedure... - Page 4 Interior Design Media Media Placement Guidelines Glass Media Placement Stone Media Placement Log Media Placement Operation 10-Button Remote Control Handset Operating Instructions Puck Handset Operating Instructions Wall Switch Operating Instructions MyFire App Operating Instructions MyFire Wi-Fi Box Fireplace Maintenance General Maintenance...
-
Page 5: Product Information
“General Venting Requirements” on page 28. Certification 98 series fireplaces have been tested and approved by CSA Group for safety and efficiency for use with Natural Gas (NG) and Propane (LP) only, and NOT for use with solid fuels. -
Page 6: Rating Label
You must instruct the owner before handing over the fireplace where this label can be found. OWNERS: Make sure the installer leaves your fireplace’s rating label in an area that is easily accessible for you. This information is required for servicing and receiving replacement parts. 98 Series Rating Label... -
Page 7: Zero-Clearance Stand-Offs
Protective Cover: Attached under the bottom front part of the fireplace to protect the double glass fans during shipping and installation. This cover is present on double glass models only. Screen models do not come with a protective cover. 98 Series Front Facing Zero-Clearance Stand-Offs (Isometric View) -
Page 8: Installation
Installation Prior to Installation Locate the Fireplace Keep the following factors in mind when selecting a location for the fireplace: Fireplace clearance requirements (review “General Clearances” section on page 15). Heat release and air intake requirements (review “Heat Release” section on page 16, and “Air Intake Opening” section on ... -
Page 9: Third Trip To Site: Startup
In addition, the installer must review and explain the following to the owner: Safety warnings Fireplace operation Warranty requirements Maintenance requirements Glass is hot during and after operation. If any questions or concerns arise, owner must contact the local Ortal dealer/installer for support. ... -
Page 10: Building Around The Fireplace
Building Around the Fireplace Building Checklist The following building checklist is a quick reference for a typical 98 series fireplace installation. This list is not exhaustive and does not supplement thorough review of the installation manual. Fireplace Location: Ensure the location allows for min. 40” clearance from viewing area to furniture and other combustibles. -
Page 11: Framing
Framing Framing Requirements Fireplace chase may be framed with either combustible (typically wood studs) or non-combustible framing (typically metal studs). Any framing within 10 ” from the top of the fireplace glass (viewing area) must be non-combustible. Any framing after that point may be combustible. -
Page 12: Framing Dimensions
Framing Dimensions The following framing information applies to combustible and non-combustible framing material. The diagrams presented are for illustrative purposes only. There are multiple approved framing scenarios. A flush application is not the only permitted application. The fireplace may be recessed into the wall. Refer to diagrams and values below and in the following pages for details. 98 Front (F) Series Fireplace Glass... - Page 13 98 Corner (RS/LS) Series Fireplace Glass Glass Height Length Depth Stand-Off Legs Length Height 98 RS/LS " 104 ½” ” ” ” 98 ½” " 98H RS/LS ” 104 ½” ” ” ” 98 ½” ” Framing Fireplace 98 RS/LS 98H RS/LS A: Height "...
- Page 14 98 Three-Sided (TS) Series Fireplace Glass Glass Height Length Depth Stand-Off Legs Length Height 98 TS " ” ” ” ” 101” " 98H TS ” ” ” ” ” 101” ” Framing Fireplace 98 TS 98H TS A: Height "...
-
Page 15: General Clearances
General Clearances Viewing Area Clearance Zone The viewing area clearance zone is an area that extends perpendicular from the fireplace viewing area. The depth of the viewing area clearance zone depends on the combustibility of the material in question. Distance is measured from the fireplace heat barrier. Non-Combustible Materials Must be minimum 12 inches from fireplace viewing area. -
Page 16: Heat Release
This heat is generated convectively as the fireplace heats up. It is separate from exhaust heat produced in the combustion chamber of the fireplace. For safety purposes, a heat release is required in order to keep the wall around the fireplace cool. Heat release requirements are the same for all 98 series models. Heat Release Requirements The heat release must be located at or near the top of the fireplace chase and start within 6 inches (0-6 inches max) of the ... - Page 17 Vertical Heat Release: Split Front Vertical Heat Release: Full Side The heat release is oriented vertically and split between the two sides The heat release is oriented vertically. Entire heat release of the chase. is on one side of the fireplace chase. Split Front Vertical Heat Release Full Vertical Heat Release on One Side Sprinkler Clearance to Heat Release...
-
Page 18: Air Intake Opening
Air Intake Opening For fireplaces with a double glass heat barrier only, an air intake opening must be incorporated into the framing and finish around the fireplace. The air intake opening is essential to maintain cool air flow between the double glass panels by allowing the double glass fans to circulate room air through the glass panels and up into the chase. - Page 19 Air Intake for a Platform NOTE: Please refer to the “Chase Floor/Platform” section on page 11 for details on platform construction.
-
Page 20: Mounting A Tv/Artwork
The decision to install a television above an Ortal fireplace is up to the discretion of the owner. TV and art manufacturers may specify that their product should not be installed on, near or above a heat source. Ortal will not be held liable for any adverse effects on a TV, artwork or other equipment located near the Ortal fireplace. - Page 21 Recessed TV/Artwork When the TV is mounted on a wall that recesses over fireplace, the TV must be at least 12 inches from the top of the fireplace glass viewing area. At 12 inches above the fireplace viewing area, maximum possible recess is 5 inches. A deeper recess will interfere with required clearances to venting.
-
Page 22: Access Panel
Access Panel An access panel is not required (see notes below for exception), but it is highly recommended. It allows for access to the fireplace’s gas and electrical components for servicing. NOTE: An access panel, or some other form of clear access, is required for power vented fireplaces. For servicing purposes, the power vent control box (located at the fireplace) must be easily accessible in a way that does not require removal of the fireplace glass. -
Page 23: Chase Area Minimum
Chase Area Minimum To ensure the convective heat within the chase passively moves to the heat release at an optimal rate, all parts of the interior of the chase must at least the same size as the fireplace heat release (see “Heat Release” section on page 16 to determine your model’s required heat release size) at size at any given point. -
Page 24: Structural Weight Support
The following drawing shows a recommended approach to this type of installation. Please note that these drawings are not to scale. All fireplace drawings with correct dimensions are available on the Ortal website. -
Page 25: Step-By-Step Chase Construction
Step-by-Step Chase Construction The following checklist is a simplified overview of typical chase construction for a 98 series fireplace installation. This list is not exhaustive and does not supplement thorough review of the installation manual. Step 1 BUILD BACK AND SIDE WALLS Frame the back and side walls according to framing requirements. -
Page 26: Finishing
Finishing The following diagrams show various finish applications. Diagrams apply to both combustible and non-combustible finish material. IMPORTANT NOTES: All recessed installations must comply with applicable maximum overhang limit and side wall clearances. See “Maximum Overhang Depth” and “Clearance to a Side Wall” sections on page 15 for details. No material is permitted to extend past the metal lip surrounding the fireplace viewing area. -
Page 27: Recessed Installation
Recessed Installation Diagram applies to both combustible and non-combustible finish material. The finish must maintain at least a ” clearance to the fireplace to both the top and bottom recesses. -
Page 28: Venting
Review “Vent Configurations” section on page 29 to determine if your fireplace needs a power vent. ORTAL POWER VENT NOTE: See the Ortal Power Vent Manual for more details on power venting. ENERVEX POWER VENT NOTE: See Ortal’s Enervex RS Power Vent Manual for more details on power venting with an Enervex power vent. -
Page 29: Vent Configurations
The following sections provide information for calculating vent configuration distances and elbows. For vent configurations that cannot conform to these guidelines, consider Ortal’s Power Vent System, or contact Ortal for assistance. Power Vent information can be found in the Power Vent Installation Manual. - Page 30 TERMINATION CAP NOTE: Low Profile Termination Cap and Sconce Termination Cap can negatively impact flame appearance and are not recommended for use with the fireplace. Allowable Maximum Horizontal Runs 98 Series (180 Single Burner) V minimum = 6 feet Vertical (V)
-
Page 31: Vent Restrictor Sizing Guidelines
Vent Restrictor Sizing Guidelines The restrictor sizing tables in this section determine the recommended restrictor for your vent configuration. These tables show Ortal’s recommendations only. The Environment, gas type and other factors may affect the best restrictor choice. How to use the “Recommended Restrictor” tables: Find the total vertical rise in your vent configuration along the y-axis. -
Page 32: Vent Termination
Vent Termination Horizontal Termination Clearance Diagram Location Country Minimum Clearance Description Clearance above grade, veranda, porch, deck, or balcony. US & 12 inches NOTE: On private property where termination is less than 7 feet above a sidewalk, driveway, Canada deck, porch, veranda, or balcony, use of a listed cap shield is suggested. ≤... - Page 33 Covered Alcove: spaces open only on one side and with an overhang Horizontal Termination Clearances Continued: Covered Alcove Application Location Country Minimum Clearance Description Clearance under non-vinyl veranda, porch, deck, balcony, or overhang. NOTE: Termination in a covered alcove space is permitted with the dimensions specified. 1.
-
Page 34: Vertical Termination Clearance Diagram
Vertical Termination Clearance Diagram NOTE: This chart does not apply to a chimney shroud application. See the “Chimney Shroud” section on the next page for more information. TERMINATION CAP NOTE: A Low Profile Termination Cap can negatively impact flame appearance and is not recommended for use with the fireplace. -
Page 35: Chimney Shroud
Chimney Shroud Top Open Keep a minimum 6-inch clearance around the diameter of the cap’s side edge and extending above and below the cap. Sides Open Keep a minimum 6-inch clearance around the diameter of the cap’s side edge, and a minimum 10-inch clearance above the top of the cap. -
Page 36: Gas
Check with your authority having jurisdiction for more information. WARNING: The main gas valve must be installed to allow complete disconnection of the fireplace from the gas supply piping system for servicing purposes. Screen Models 98 Series Fireplaces with Screen: Left, Right, Back, Front... -
Page 37: Gas Conversion
Gas conversion (NG to LP or LP to NG) can be done in the field. Gas conversion must only be performed by a technician who has specific authorization by Ortal to change these components. The conversion kit must be supplied by Ortal. Using parts from other manufacturers or having an unauthorized party perform the conversion will void your fireplace’s warranty. -
Page 38: Gas And Electrical Components
Pilot Base Connection fitting 4mm One-piece Thermocouple NG Fitting for main line inlet to gas valve GV60 Thermocouple LPG The manufacturer of Ortal’s gas and electrical components is Mertik Maxitrol. For information on these components, please visit the manufacturer’s website: www.mertikmaxitrol.com... -
Page 39: Electrical
Electrical WARNING: Disconnect the power supply before servicing any electrical components. Electrical Requirements A duplex receptacle with two outlets (not included) must be installed in the location where the gas and electrical components will be placed, which must be to the side or back of the fireplace within 36 inches of the pilot (see diagram in “Routing the Gas Line” section on page 36). -
Page 40: Wiring Diagrams
Wiring Diagrams The following diagrams show the electrical wiring required for different feature combinations. For wiring diagrams with Ortal or Enervex power vent, refer to the applicable power vent manual. For wiring diagrams with CO shutoff kit, refer to CO Shutoff Kit spec sheet at www.ortalheat.com. - Page 41 Wiring Diagram: Screen Fireplace with Interior Lighting...
- Page 42 Wiring Diagram: Double Glass Fireplace...
- Page 43 Wiring Diagram: Double Glass Fireplace with Interior Lighting...
-
Page 44: Home Automation Wiring Diagram
Interior Design Media Ortal offers interior media options such as stones, glass, logs, and embers that can be provided with the fireplace. This section provides guidelines for safe placement of media. It is crucial that the placement guidelines outlined below are followed as a large portion of flame quality issues are caused by improper media setup. -
Page 45: Media Placement Guidelines
Media Placement Guidelines When installing media, adhere to the following general guidelines: Keep the media back from the pilot hood so at least one burner port is open. Crowding around the pilot hood may hinder lighting and could result in potential damage to the fireplace and surrounding area or personal injury. Do not use the hood to support media. -
Page 46: Log Media Placement
Log Media Placement Place the logs carefully to block as few ports as possible. If a log is placed over a port, block the port with a “coin” to keep the flame from creating soot on the media or to manipulate the look of the flame. Block as few ports as possible, and no more than 30% of total ports. -
Page 47: Operation
Operation WARNING – Read these instructions carefully before lighting the fireplace. Four operation options are available for use with the fireplace: 10-Button Remote Control Handset (default option, always included with the fireplace) Puck Handset (optional accessory) Wall Switch (optional accessory) ... -
Page 48: Operating Instructions
Operating Instructions Instructions for operating the 10-Button Handset are shown below. For more in-depth instructions, please refer to the “Homeowner’s Fireplace Operation Manual” or “Remote Operation Instructions”. NOTE: Some options on the remote may not be available for all fireplaces. Turning the Fireplace On 1. -
Page 49: Operating Instructions
Operating Instructions Instructions for operating the Puck Handset are shown below. Turning the Fireplace On/Off Firmly press and hold the button until two short beeps confirms the start sequence has begun; release button. OFF: Firmly press the button. Increase/Decrease Flame Height INCREASE: To increase flame height, press and hold... -
Page 50: Wall Switch
Wall Switch Control Option Radio Frequency Power Supply Wall Switch IMPORTANT: For safety/communication purposes, the 10-button handset must be located within 26 feet of the receiver. Operating Instructions Turning the Fireplace On/Off ON: Press and hold the ON-OFF button until two short beeps confirms the start sequence has begun;... -
Page 51: Myfire App
To download the MyFire app, search “MyFire” at the Apple App Store or Google Play. Operating Instructions For setup and operating instructions of the MyFire app, see the Homeowner’s Fireplace Operation Manual, or visit the Ortal website or www.myfireapp.com. MyFire Wi-Fi Box The MyFire Wi-Fi router box provides the Wi-Fi connection that allows the MyFire App to operate the fireplace. -
Page 52: Fireplace Maintenance
Submerged Parts Do not use the fireplace if any part has been under water, or if you suspect that it may have been under water. The Ortal dealer service technician must inspect and, if necessary, replace any parts of the control system and any gas controls which have been under water. - Page 53 © Ortal 2022 Version 1.0, August 2022 SKU: KPMAN98NLUSV1.0 Ortal USA 2152 Citygate Dr., Columbus, OH 43219 T: (818) 238-7000 | F: (818) 678-0541 info@ortalheat.com | www.ortalheat.com...
