Quick Installation Guide
X1 Series 6.0kW-8.0kW

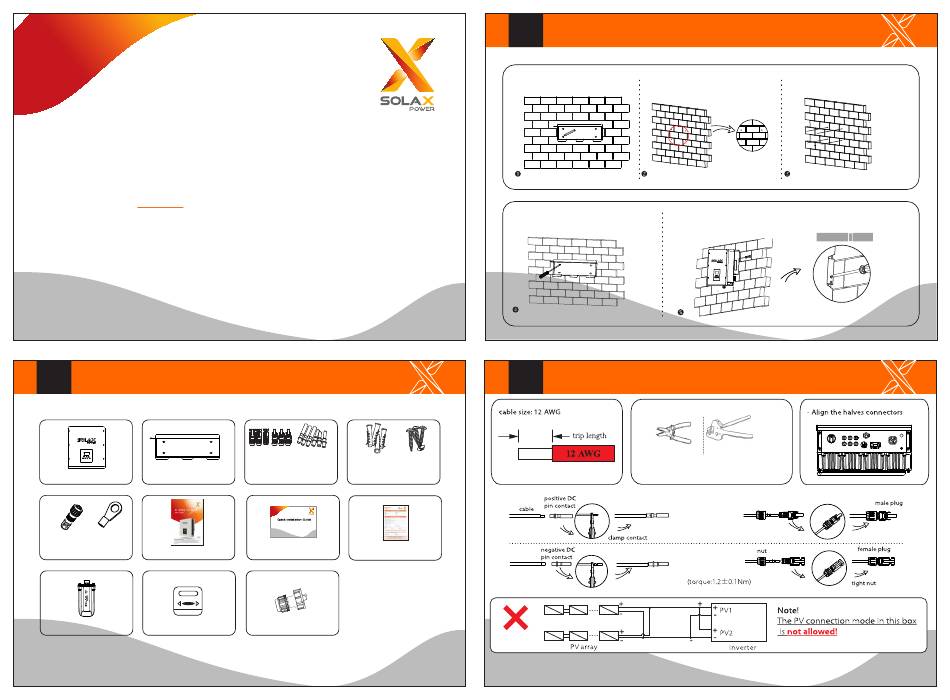

Packing List
I
Bracket X 1
X1 Series X 1
AC connector X 1
Earth terminal X 1
User manual X 1
Meter(Optional)
Pocket WiFi X 1(Optional)
Note:
Please refer to the appropriate instruction manual for the usage of optional accessories.
Male DC connector X 3
Screw package:
Female DC connector X 3
Expansion tube X 4
Positive DC pin contact X 3
Negative DC pin contact X 3
Expansion screw X 4
X1 Series 6.0KW-8.0KW
Quick installation guide X1
Warranty card X 1
Rj45 Plug
Inverter Installation
II
- Drill holes with φ10 drill.
- Mark the position of four holes
- Depth: at least 50mm.
- Match the inverter with the bracket.
- Screw the expansion screws.
- Screw the cross recessed screw on the right side.
III
PV Connection
Tools:
7.0mm
Strpping pliers
Wire crimper recommended model :
H4TC0001
manufacturer:Amphenol
- Tighten the expansion tubes.
torque:1.5±0.2Nm
Wire crimper
Advertisement
Related Manuals for SolaX Power X1-8.0-T-DW
Summary of Contents for SolaX Power X1-8.0-T-DW
- Page 1 Inverter Installation - Drill holes with φ10 drill. - Tighten the expansion tubes. - Mark the position of four holes - Depth: at least 50mm. Quick Installation Guide X1 Series 6.0kW-8.0kW - Match the inverter with the bracket. - Screw the expansion screws. - Screw the cross recessed screw on the right side.
- Page 2 AC Connection Basic Parameters Setting Control Panel 2.Insert the tripped end of each three Cable size: 8 AWG 1.Slide the cable nut and Symbol Name Description wires into holes in the female insert, back shell onto the cable. Leave from current interface or function. outer jacket then tighten each screw.
