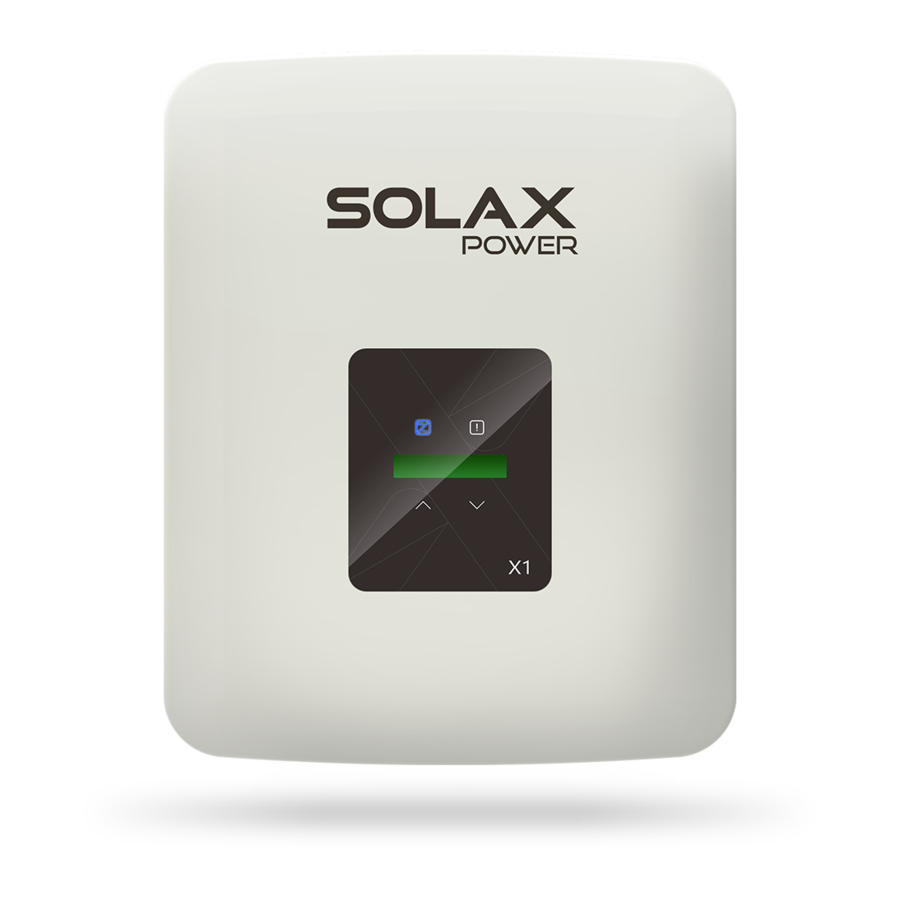

SolaX Power X1 Series Quick Installation Manual

Quick Installation Guide
X1 Series 0.6KW-3.6KW

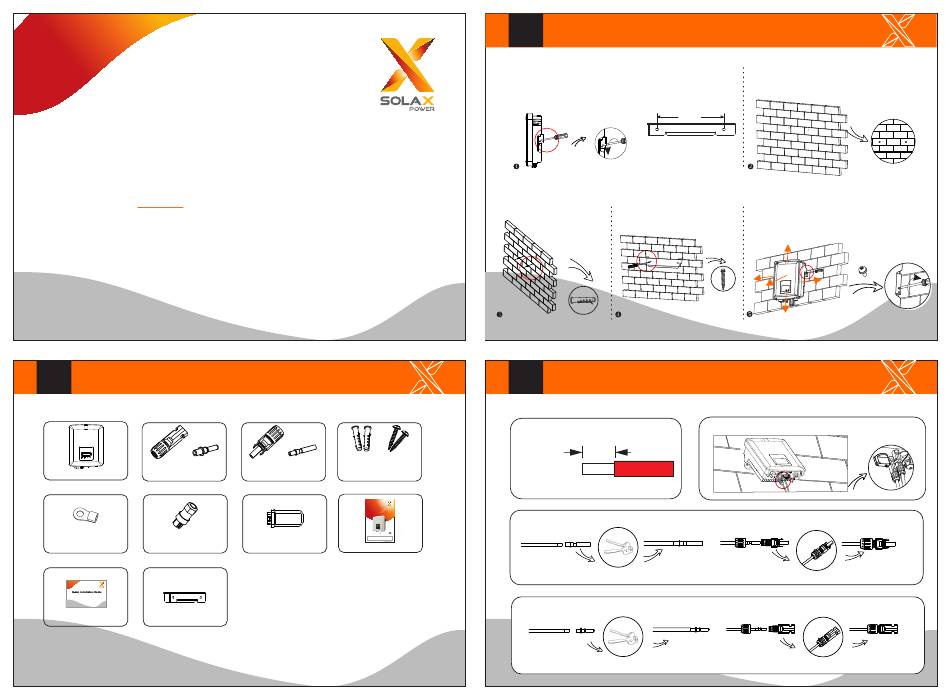

Packing Lists

I
Female DC unit*1
X1 series Inverter *1 Male DC unit 1
Negative DC pin contact*1
Earth terminal 1 * AC Connector
X1 Series 0.6KW-3.6KW
Quick installation guide * 1 Bracket * 1
Note:
1) Please refer to the appropriate instruction manual for the usage of optional accessories.
Male DC unit *1 Expansion tube*2
Female DC unit 1
Self-tapping screw*2
Positive DC pin contact *1
X1 Series User Manual
0.6kW - 3.6kW
Pocket Wi-Fi, Copyright Declaration
The copyright of this manual belongs to Solax Power Network Technology(Zhe jiang) Co,. Ltd.
software,etc.), and no reproduction or distribution of it in any form or by any means. All rights Any corporation or individual should not plagiarize, partitially or fully copy (including
reserved. SolaX Power Network Technology (Zhe jiang) Co.,Ltd. reserves the right of nal
interpretation.
User manual * 1
Pocket LAN/GPRS (optional)*1

Inverter Installation

II
- Unscrew the bracket from the back of the inverter.
- Mark the position of the two holes.
- Tighten the expansion tubes.
- Screw the expansion screws.
III

PV Connection

Cable size: 4~6 mm²
trip length:
7.0mm
positive DC
pin contact
negative DC
pin contact
cable
clamp contact
- Drill holes with φ6 drill.
- Depth: at least 50mm.
200mm
- Match the inverter with the bracket.
- Screw the cross recessed screw on the right side.
300mm
300mm
300mm
300mm
300mm
-Align the two halves connectors.
male plug
female plug
nut
tight nut
