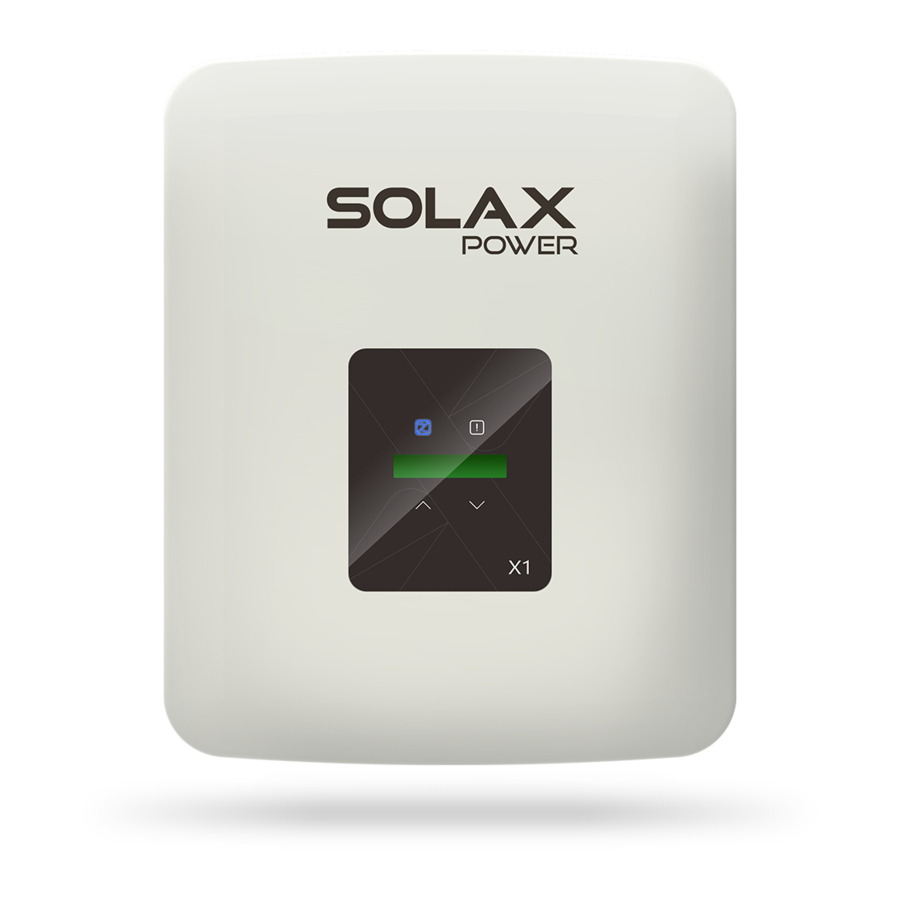

SolaX Power X1 Series Quick Installation Manual

Quick Installation Guide
X1 Series 3.0KW-6.0KW
Packing Lists
I
X1 X1
Female DC connector X 2
Male DC connector X 2
AC connector X 1
X1 Series × 1
X1 Series User Manual
3.0kw - 6.0kw
Copyright Declaration
Any corporation or individual should not plagiarize, partitially or fully copy (including software,etc.), The copyright of this manual belongs to Solax Power Network Technology(Zhe jiang) Co,. Ltd.
and no reproduction or distribution of it in any form or by any means. All rights reserved. SolaX
Positive DC pin contact ×2 Power Network Technology (Zhe jiang) Co.,Ltd. reserves the right of final interpretation.
User manual × 1
Negative DC pin contact ×2
Warranty card × 1
Earth terminal×1
PH1 cross screwdriver, torque:0.8±0.1Nm
- Tighten the expansion tubes.
III
Cable size: 12 AWG
trip length:
Screw package:
Expansion tube X 3
Expansion screw X 3
X1 Series 3.0KW-6.0KW
Quick installation guide ×1
×
Pocket WiFi × 1(Optional)

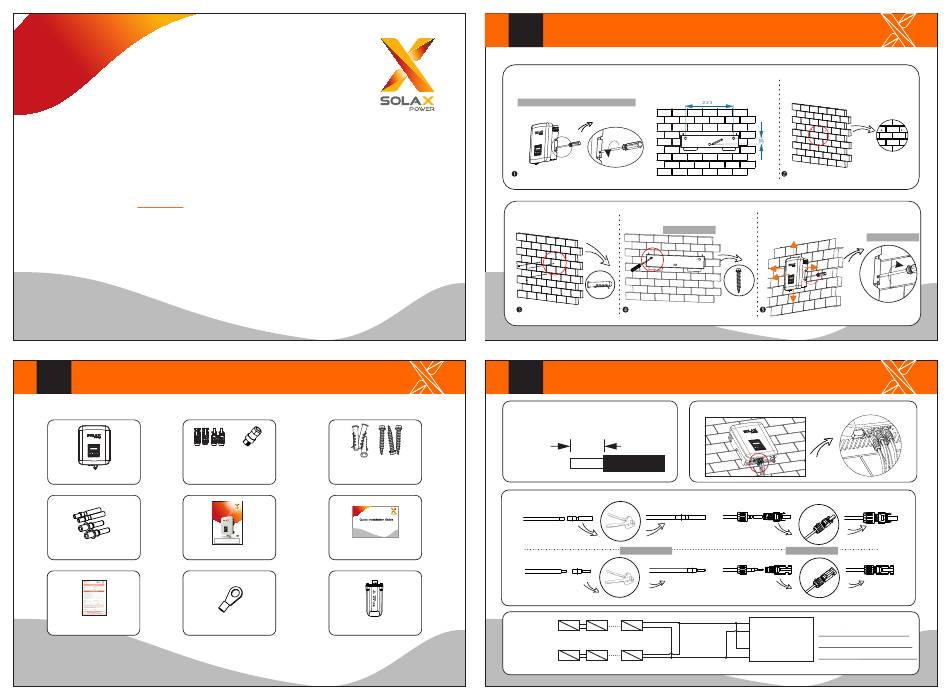

Inverter Installation
II
- Unscrew the bracket from the back of the inverter.
- And mark the position(223mm×30mm) of three holes.
- Screw the expansion screws.
torque:0.8±0.1Nm
PV Connection
6.0mm
12 AWG
positive DC
pin contact
torque:1.2±0.1Nm
negative DC
pin contact
cable
clamp contact
+
-
+
-
PV array
- Drill holes with φ10 drill.
- Depth: at least 50mm.
- Match the inverter with the bracket.
- Screw the cross recessed screw on the right side.
- make sure available space
torque:0.8±0.1Nm
300mm
300mm 300mm
300mm
300mm
-Align the four halves connectors.
male plug
torque:1.2±0.1Nm
female plug
nut
tight nut
+
Note!
+
PV1
-
The PV connection
mode as the diagram
+
PV2
shown is not allowed!
-
-
Inverter
