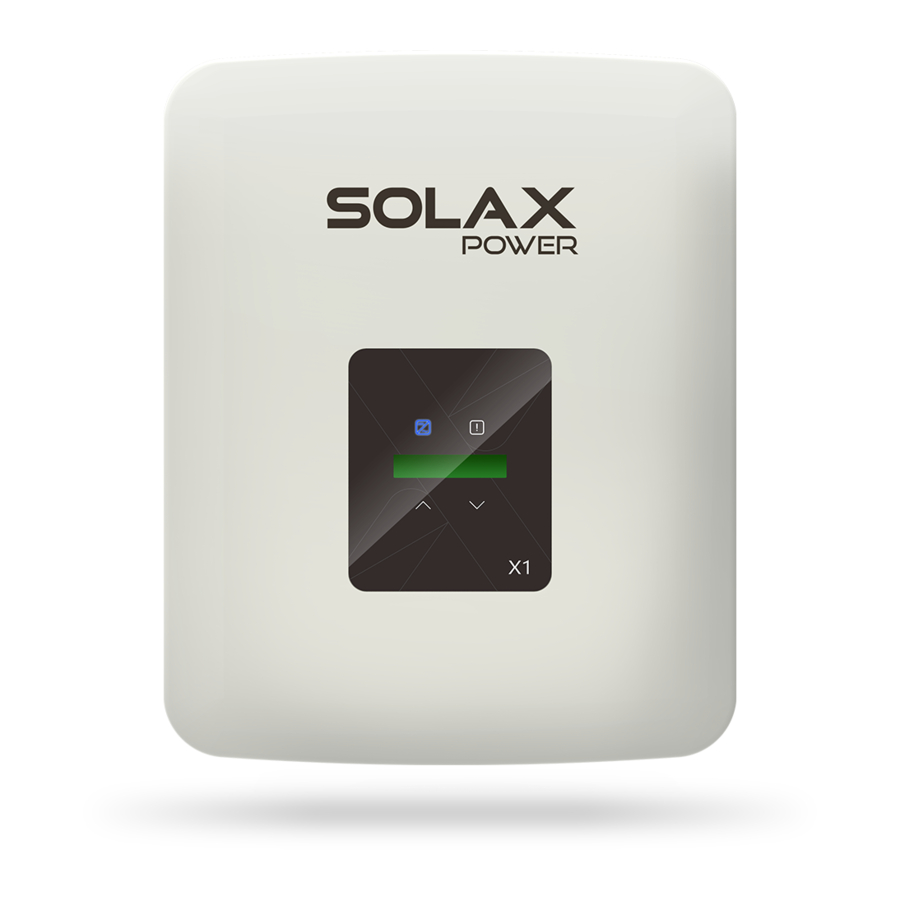

X1 Series User Manual
3.0kW - 6.0kW
Copyright Declaration
The copyright of this manual belongs to Solax Power Network Technology(Zhejiang) Co,. Ltd.
Any corporation or individual should not plagiarize, partitially or fully copy (including
software,etc.), and no reproduction or distribution of it in any form or by any means. All rights
reserved. SolaX Power Network Technology (Zhejiang) Co., Ltd. reserves the right of nal
interpretation.
614.00753.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X1 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SolaX Power X1 Series

Summary of Contents for SolaX Power X1 Series

  • Page 1 Solax Power Network Technology(Zhejiang) Co., Ltd. Copyright Declaration The copyright of this manual belongs to Solax Power Network Technology(Zhejiang) Co,. Ltd. Any corporation or individual should not plagiarize, partitially or fully copy (including software,etc.), and no reproduction or distribution of it in any form or by any means. All rights reserved.

  • Page 2: Table Of Contents

    Contents Contents 1 Note on this Manual 1.1 Scope of Validity 1.2 Target Group 1.3 Symbols Used 2 Safety 2.1 Appropriate Usage 2.2 Important Safety Instructions 2.3 Explanation of Symbols 2.4 EC Directives 3 Introduction 3.1 Basic Features 3.2 Terminals of the Inverter 3.3 Dimension 4 Technical Data 4.1 DC Input...

  • Page 3: Scope Of Validity

    1 Notes on this Manual 7.1 Troubleshooting 1.1 Scope of Validity 7.2 Routine Maintenance This manual is an integral part of X1 Series, It describes the assembly, installation, commissioning, maintenance and failure of the product. Please read 8 Decommissioning it carefully before operating.

  • Page 4: Safety

    WARNING ! Over-voltage protection with surge arresters should be provided The X1 Series are PV inverters which can convert the DC current of the PV generator when the PV power system is installed. into AC current and feed it into the public grid.

  • Page 5: Important Safety Instructions

    Do not disassemble any parts of inverter which are not mentioned in installation guide. It contains no user-serviceable parts. See Warranty for instructions on obtaining service. Attempting to service the X1 Series inverter CAUTION! yourself may result in a risk of electric shock or fire and will void your warranty.

  • Page 6: Explanation Of Symbols

    Safety Safety PE Connection and Leakage Current 2.3 Explanation of Symbols This section gives an explanation of all the symbols shown on the inverter and • The inverter incorporates a certi ed internal Residual Current Device (RCD) on the type label. in order to protect against possible electrocution and re hazard in case of a malfunction in the cables or the inverter.

  • Page 7: Introduction

    3. Introduction DC Connector 3.1 Basic Features Ground screw Thanks for your purchasing with SolaX X1 Series inverter. The X1 Series Pocket Wi Fi, Pocket LAN/ GPRS (optional) inverter is one of the nest inverters on the market today, incorporating state- RS485/ Meter/ CT/ DRM(optional) of-the-art technology, high reliability, and convenient control features.

  • Page 8: Dimension

    Introduction Technical Data 4. Technical Data 3.3 Dimension Ø Dimension 4.1 DC Input 341.5mm 143mm X1-3.0-T-D X1-3.3-T-D X1-3.6-T-D X1-4.2-T-D X1-4.6-T-D X1-5.0-T-D X1-5.5K-T-D X1-6K-T-D Model X1-3.0-T-N X1-3.3-T-N X1-3.6-T-N X1-4.2-T-N X1-4.6-T-N X1-5.0-T-N X1-5.5K-T-N X1-6K-T-N Max. recommended PV array power [W] 4500 4950 5400 6300 6900...

  • Page 9: Efficiency, Safety And Protection

    X1 Series 3.0KW-6.0KW Copyright Declaration The copyright of this manual belongs to Solax Power Network Technology(Zhe jiang) Co,. Ltd. Any corporation or individual should not plagiarize, partitially or fully copy (including software,etc.), and no reproduction or distribution of it in any form or by any means. All rights reserved.

  • Page 10: Installation Precaution

    Installation Installation 5.3 Installation Precaution 5.4 Installation Steps X1 Series inverter is designed for outdoor installation (IP 66). Ø Preparation Make sure the installation site meets the following conditions: Below tools are needed before installation. Not be exposed to glare.
  • Page 11 Installation Installation b) Strip 7mm of insulation from the wire end by using the stripping pliers. Table 3 Max. DC Voltage Limitation strip length 7.0 mm X1-3.0-T-D X1-3.3-T-D X1-4.2-T-D X1-4.6-T-D X1-5.0-T-D X1-5.5K-T-D X1-6K-T-D X1-3.6-T-D Model X1-3.0-T-N X1-3.3-T-N X1-4.2-T-N X1-3.6-T-N X1-4.6-T-N X1-5.0-T-N X1-5.5K-T-N X1-6K-T-N...
  • Page 12 Ø - Hold the middle part of the female insert, rotate the back shell to X1 series inverter are designed for single phase grid. Nominal grid voltage is 220/ 230/ 240 V, loose it, and datach it from female inset.
  • Page 13 Installation Installation Ø Selection of Fuses and Cables connection NOTE! Main cable( line cable)shall be short circuit protected and thermal overload If the AC cable you choose is 16mm² or larger, you need to protected. break the connection between the two rubber rings which Always t the input cable with fuse.
  • Page 14 RS485 port on the must point to the public grid side. bottom of inverter With this single phase meter working together with the X1 series, you can: L line Public Grid (1) Monitor the energy to grid and from grid through the whole day.
  • Page 15 Installation Installation CT Connection Steps: Ø RS485 Connection Steps: NOTE! 1) Firstly unscrew all screws from the RS485 port. (PH1 cross screwdriver . • Do not place the CT on the N Wire or the earth wire. torque:1.0±0.1N·m) • Do not place the CT on the N and L wire simultaneously. 2) Prepare a communication cable and trip the insulation from it.
  • Page 16 Installation Installation Upgrade 3) Then insert U-disk into the DONGLE port on the bottom of the inverter. Then User can update the inverter system through the U-disk. turn on DC switch or connect the PV connector, the LCD will show the main pictures as below.

  • Page 17: Run The Inverter

    Installation Operation Method 5.6 Run the Inverter 6. Operation Method Start inverter after checking all below steps: Ø a) Check that device is fixed well on the wall. 6.1 Control panel b) Make sure all the DC breakers and AC breakers are disconnected. c) AC cable is connected to grid correctly.

  • Page 18: Lcd Structure

    Operation Method Operation Method 6.2 LCD Structure 6.3 LCD Operation Enter Please refer to the inverter for the most updated structure >Safety Country **Previous page Grid >AS4777< Back *User can also see the U,I & P Down 1 level 2 level 3 level of the PV.
  • Page 19 Operation Method Operation Method Ø LCD Display Parameter Comment •1 level a) The rst line displays the parameters(Power, Today and Total) and the values. Apply to EN50549_PL. b) The second line shows the running status. Vac upper Voltage high protect The information of the interface is as below.
  • Page 20 Operation Method Operation Method Reactive power control, Reactive standard curve Q= f(V) Choose”Disable” means the function will be shut off. (7) Earth Detect: The default is “Disabled”. If turned on, the inverter will occur an V2s=1.10Vn error. V1s=1.08Vn=QuVlowRate Qmax V2i=0.90Vn Function: User can choose whether using the DRM function or not.

  • Page 21: Troubleshooting

    7.1 Troubleshooting This section contains information and procedures for solving possible problems with X1 series inverters, and provides you with troubleshooting tips to identify and solve most problems that could occur with the X1 series inverters. This section will help you narrow down the source of any problems you may encounter.

  • Page 22: Routine Maintenance

    Troubleshooting Troubleshooting 7.2 Routine Maintenance Inverters do not need any maintenance or correction in most cases, but if the inverter often loses power due to overheating, this can be attributed to the following reason: ● The cooling fins on the rear of the inverter are covered by dirt. Clean the cooling fins with a soft dry cloth or brush if necessary.

  • Page 23: Decommissioning

    Decommissioning Disclaimer 8 Decommissioning 9 Disclaimer The X1-Boost G3.3 series inverters are transported, used and operated 8.1 Dismantling the Inverter under limited condition, such as environmental, electrical etc. SolaX shall not be liable to provide the service, technical support Turn off the AC and DC switches of the inverter system. or compensation under conditions listed below,including but not Wait for 5 minutes for de-energizing.
  • Page 24 Warranty Registration Form For Customer (Compulsory) Country Name Phone Number Email Address Zip Code State Product Serial Number Date of Commissioning Installation Company Name Installer Name Electrician License No. For Installer Module ( If Any ) Module Brand Module Size(W) Number of String Number of Panel Per String Battery ( If Any )
  • Page 25 PLEASE REGISTER THE WARRANTY IMMEDIATELY AFTER INSTALLATION! GET YOUR WARRANTY CERTIFICATE FROM SOLAX! KEEP YOUR INVERTER ONLINE & WIN SOLAX POINTS! Open your Wait for the camera app camera to and point recognize your device the QR code at the QR code Notification Click the notification banner...
